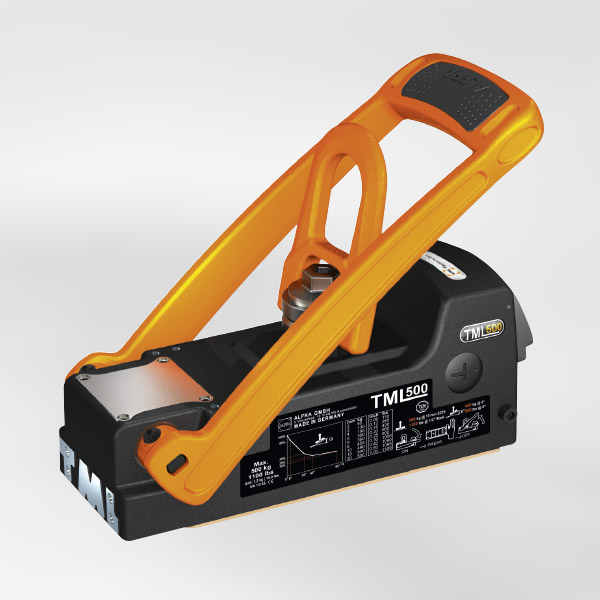

ALFRA Lifting Magnet TML 500

Stock Code: PTATML500
MPN: 41500

Descriptions

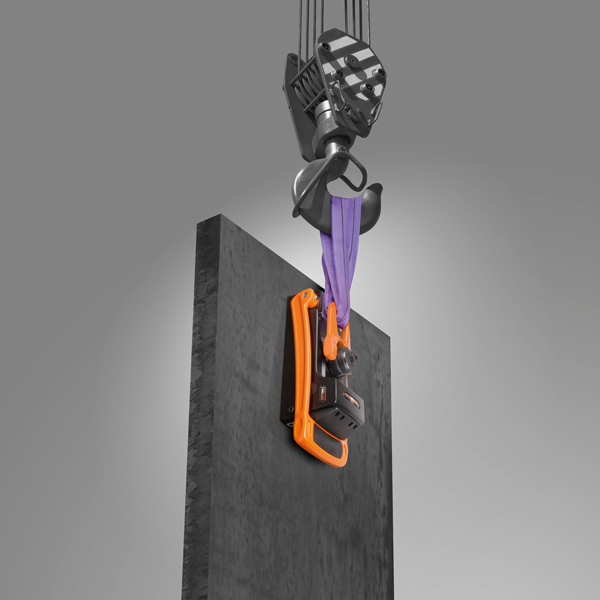

The figures speak for themselves. But the lifting magnet TML 500 from Alfra is providing a large number of further advantages: belonging to the der TML-line (Thin Material Lifting) it’s convincing with an impressive performance on thin sheet metals from a material thickness of only 2 mm, due to our patented magnet technology! From a material thickness of 5 mm the permanent magnet is lifting loads with a weight up to 300kg. From a material thickness of 10 mm the TML has a load-bearing-capicity of 490 kg. The rotable 360° twist stop allows flexibility. Combined with a hook with safety latch, or with a round sling, it is ensuring a safe connection with your lifting- or transporting device. Move sheets, metal plates or steel beams effortlessly from A to B – for example with a ceiling crane or with a rope hoist.

Furthermore our magnets are perfectly adjusted to your daily processes. One example: the lever design allows to activate the magnet „inside“a t-beam.

Technical Details:

Prod.-No. 41500

Max. load-bearing capacity 500 kg (1,100 lb)

Breakaway force > 1,500 kg (3,300 lbs) on 15 mm (9/16"") steel S235 ab 15 mm Stahl S235

Min. material thickness 2 mm (1/16“)

Dead weight 7,3 kg

Dimensions LxW 265 x 118 mm (10-7/16"" x 4-5/8"")
