Ultima-Tig-Cut Tungsten Grinder 230V

Stock Code: ABHBUT3002
MPN: 88897525

Descriptions

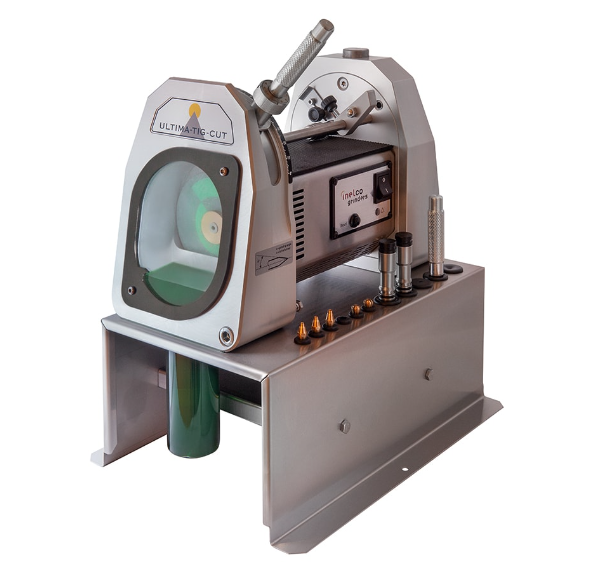

Ultima-TIG-Cut is our wet grinder of Tungsten electrodes with a cutting module that ensures precise grinding at the correct angle and perfect centring of the tip as well as precise and safe cutting of the electrode.

Highlights

Safe cutting without the electrode splitting

Sealed grinding and cutting chamber with dust collector to protect the user

Variable cutting length and angle setting gives more flexibility

Wet grinding prevents overheating of the electrode during grinding

High grinding speed provides faster grinding and a smooth surface

The electrode holder ensures centring of the tip and reduces electrode waste

Less electrode waste results in a short payback time

High-quality Tungsten electrode grinding

Environmentally friendly and safe

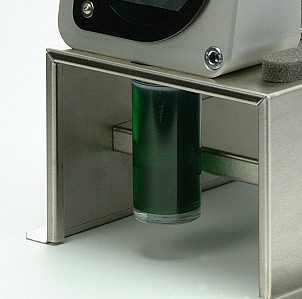

Ultima-TIG-Cut is an environmentally friendly wet grinder and cutter of Tungsten electrodes for TIG welding, with minimal waste of the expensive electrodes. Ultima-TIG-Cut is constructed with a unique disposable container that automatically collects the toxic dust particles and ensures safe disposal.

Cutting

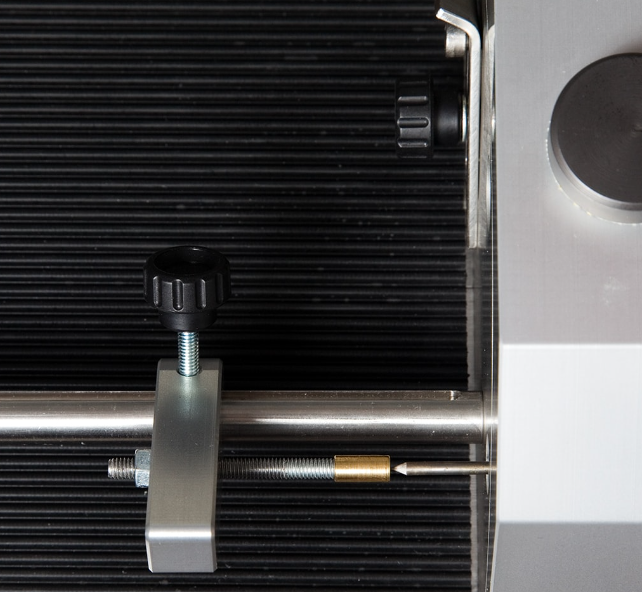

The cutting module has many setting options, which ensures the precise length needed. Ultima-TIG-Cut makes it simple to make electrode tips with the exact angle and precise length for use in any specific TIG welding job, including robotic and orbital welding.

High quality

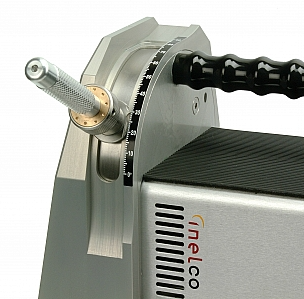

Variable angle setting and unique clamping system centres the electrode so that the grinding is carried out correctly in the longitudinal direction of the diamond disc´s running surface. A precise angle of the electrode tip is crucial for weld quality and it increases the number of re-ignitions so that the electrode life is extended.

Simple operation

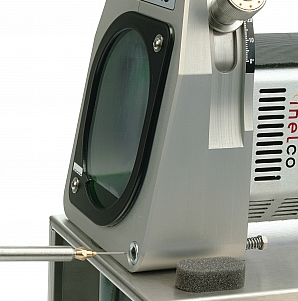

It is possible to grind and cut the electrode without removing the electrode from the holder. Hence, handling is very simple. Adjust the grinding angle and length once, and produce the same electrode tip again and again.

New engine control with

Service indicator

Overload protection

Readout the number of grindings

Specifications

Grinder facts

Electrode size: Ø0.8 – 4 mm

Cutting: down to 8 mm length

Min. length: 15 mm standard (8 mm with special clamps)

Angles: 7.5° – 90° grinding angle (equal to 15° – 180° tip angle)

Technical specifications

Motor: 110V-50/60 Hz, 220V-50/60Hz
