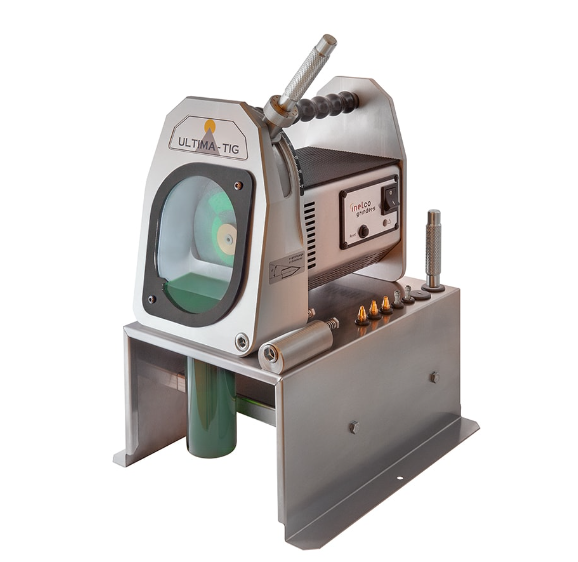

Ultima-Tig-S Tungsten Grinder 230V

Stock Code: ABHBUT3001
MPN: 88897420

Descriptions

Ultima-TIG-S is our wet grinder of Tungsten electrodes that ensures precise grinding at the correct angle and perfect centring of the tip of the electrode. It grinds down to 8 mm which results in minimal electrode waste and can grind up to Ø8.0 mm for TIG and plasma welding.

Highlights

Sealed grinding chamber with dust collector to protect the user

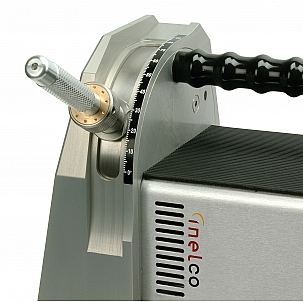

Variable angle setting gives more flexibility

Wet grinding prevents overheating of the electrode during grinding

High grinding speed provides faster grinding and a smooth surface

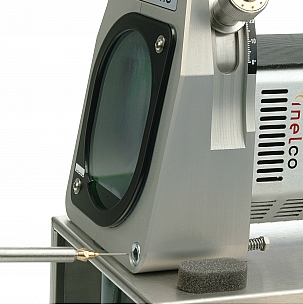

The electrode holder ensures centring of the tip and reduces waste

Less electrode waste results in a short payback time

High-quality Tungsten electrode grinding

Environmentally friendly and safe

Ultima-TIG-S is the environmentally friendly wet grinder of Tungsten electrodes for TIG welding, with minimal wastage of the expensive electrodes. Ultima-TIG-S is constructed with a unique disposable container that automatically collects the toxic dust particles and ensures safe disposal.

Cost-effective in high-quality

Ultima-TIG-S’ unique construction reduces the waste of expensive Tungsten electrodes and reduces the time spent on grinding, resulting in a short payback time. The variable angle adjustment and unique clamping system centres the electrode, so that the grinding is carried out in the correct longitudinal direction of the electrode. A precise angle is not only important for the quality of the welding seam; the number of re-ignitions between re-grinding is also increased.

Wet grinding

The combination of liquid for cooling and a high grinding speed of the diamond disc results in a polished and even surface of the Tungsten electrode. In addition, the cool wet grinding shortens the grinding time and prevents overheated and damaged electrodes.

Simple operation

Set the variable angle setting at the desired angle. Place the electrode in the electrode holder and tighten it in the stick-out. Insert the electrode holder, turn on the grinder and rotate the electrode holder until grinding is finished. After grinding, flatten the tip by placing the angle adjustment in the 90° position, if needed.

New engine control with

Service indicator

Overload protection

Readout the number of grindings

Specifications

Grinder facts

Electrode size: Ø0.8 – 8.0 mm

Min. length: 15 mm standard (8 mm with special clamps)

Angles: 7.5° – 90° grinding angle (equal to 15° – 180° tip angle)

Technical specifications

Motor: 110V-50/60 Hz, 220V-50/60Hz

Motor effect: 280W
