Ultima-Tig Autogrind Digital Unit 230V

Stock Code: ABHBUT2500
MPN: 88897826

Descriptions

AutoGrind Digital is a separate module for automatic grinding of Tungsten electrodes on the Ultima-TIG and Ultima-TIG-Cut. AutoGrind-S Digital is available for Ultima-TIG-S. The automatic grinding delivers a shorter grinding time as well as a better ergonomic solution for the user when grinding many electrodes. The AutoGrind Digital has an easy adjustment of the grinding time.

Highlights

Automatic grinding of the electrode ensures a precise and uniform result.

High rotation speed shortens the grinding time

The grinder is automatically switched off when the grinding is finished

The user can prepare the next electrode during the grinding process

High efficiency with automated grinding

AutoGrind Digital – the easy and fast way to get your Tungsten electrodes as sharp as you need – every time

The automatic process delivers precise and uniform grinding. It is also the best ergonomic solution for the user, because the electrode holder’s automatic rotation means no more repeated movements in the wrist and arm. It ensures a quick replacement of the electrode in the welding torch, because there is no need to adjust each electrode separately. This gives a correct welding seam, as well as longer time between regrinds.

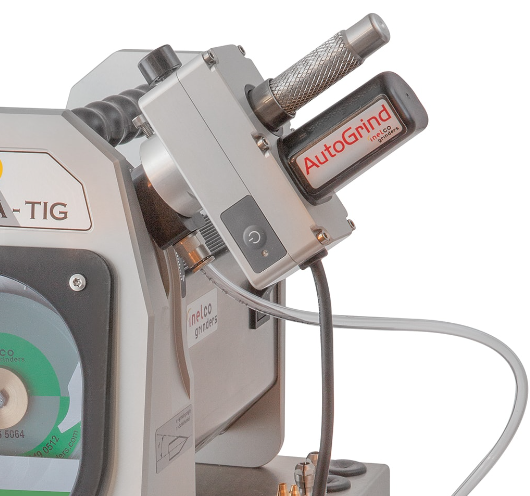

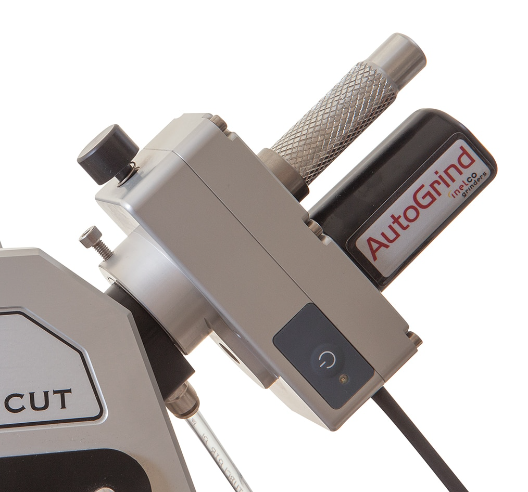

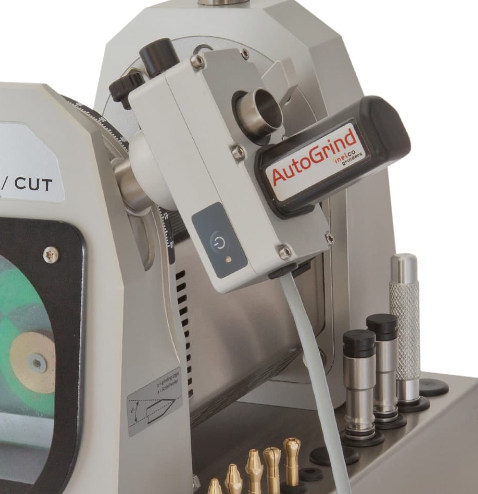

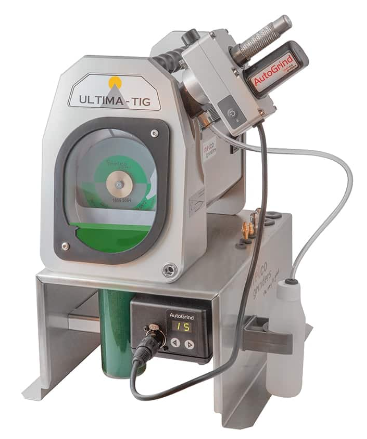

AutoGrind Digital is engineered to be mounted on the Ultima-TIG and Ultima-TIG-Cut grinders for electrodes up to Ø4 mm. The version AutoGrind-S Digital, designed for the Ultima-TIG-S grind electrode size Ø4,8 – 8 mm.

AutoGrind Digital can run on all voltages from 100 V to 240 V and on both 50 Hz and 60 Hz. Please refer to the model list for the correct model incl. cable set for the local voltage, Hz and plug type.

Specifications

The AutoGrind Digital includes

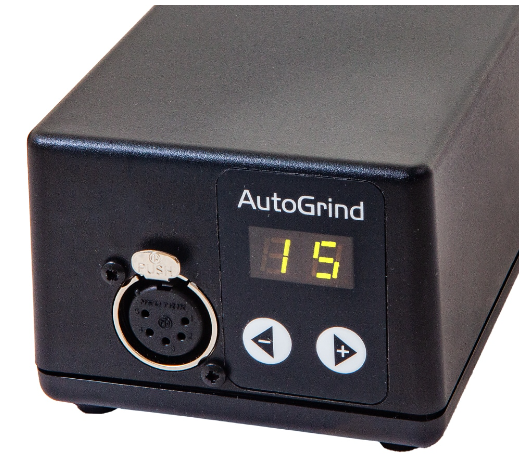

Control box – 100-240V, 50-60HZ

Grinding module

Grinder mounting screws (for mounting on the grinder)

Electrode holder

Cable set (mains cable for control box, connection cable for grinder)
