Neutrix Tungsten Grinder 240V

Stock Code: ABHBUT050
MPN: 88896025

Descriptions

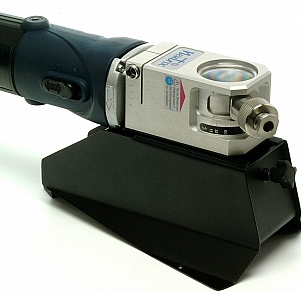

Neutrix is our hand-held and portable dry grinder for grinding of Tungsten electrodes, perfect for field welding. This grinder improves in-field grinding of electrodes with a dust filter and dust collector, ensuring a safer grinding environment for the welder.

Highlights

Sealed grinding chamber with dust collector to protect the user

Variable angle setting gives more flexibility

Inspection cover so you can follow the grinding process

The electrode holder ensures centring of the tip and reduces wastage

The 3 positions of the diamond disc give optimal utilisation

Powerful motor with speed adjustment

Portable grinding machine for Tungsten electrodes

Effective

Neutrix is a handheld and portable grinding machine that fulfills the requirements for safe and environmentally friendly grinding of Tungsten electrodes in high quality for TIG and plasma welding. Grinding in the longitudinal direction of the electrode, variable grinding angle, three grinding positions on the diamond disc and the electrode holder ensure efficient grinding.

Mobile and safe

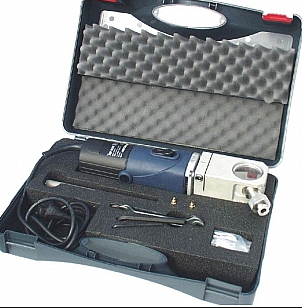

The storage case and low weight make Neutrix ideal where there is a need to take the grinder with you. At the same time, the Neutrix, is equipped with an integrated dust filter that protects against the harmful grinding dust and collects the dust for safe disposal.

Short electrodes

Neutrix can grind electrodes down to lengths of 19 mm and even 15 mm with a special clamp, for example for orbital welding. The inspection cover on the grinder makes it easy to follow the grinding process and to ensure that the electrode is not generating sparks during grinding. This avoids the electrode being damaged by high temperatures.

Simple operation

Insert the electrode in the electrode holder and lock it in the stick-out. Set the variable degree scale at the desired angle. Place the electrode holder in the grinder. Start the grinder and rotate the holder until it reaches the stop and the grinding is finished.

Specifications

Grinder facts

Electrode size: Ø0.8 – 4 mm

Min. length: 19 mm standard (15 mm with special electrode clamps)

Angles: 15° – 180° tip angle

Technical specifications

Motor: 110V-50/60 Hz, 220V-50/60Hz

Motor effect: 850W

Weight: 2.8 kg

Speed: 8,000 – 22,000 rpm

Grinding speed: 28 – 50 m/sec.

Standard unit includes
