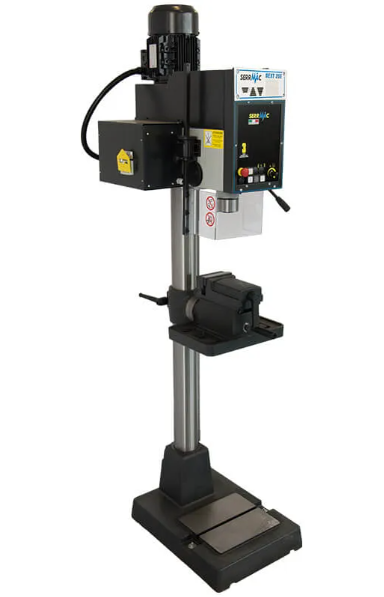

Serrmac NEXT25E-2814-SERR Variable Speed Drill Press

Stock Code: NEXT25E-2814-SERR
MPN: V25E-2514

Descriptions

This SERRMAC V25E-2514 is an Italian manufactured machine that has been thoughtfully configured to suit any demanding workshop.

Precise, silent and reliable column drill. Built according to strict accident-prevention regulations, with step pulley transmission and variable speed, precision spindle axis with tempered morse taper and machined base surface.

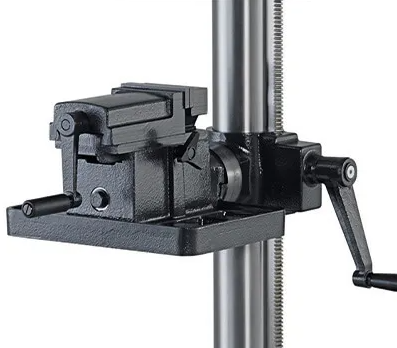

This machine comes complete with optional table with vice.

Belt-driven PU electronic potentiometer drill press
MT3 Taper
25mm steel maximum capacity
12 speeds: 98 to 3600 rpm

Specifications

Item Number V25E-2512-SERRMAC
Country of Manufacture Italy
Motor 0.75 kW
Quill Diameter 52 mm
Spindle Nose to Base 1150 mm
Spindle Speed 98 – 3600 rpm
Spindle Taper MT 3
Table Slot 16 mm
Tapping Capacity Steel 16 mm
Drill Capacity Steel 25 mm
Power 220V / 1-phase
Shipping Weight 185 kgs.
Spindle Travel 100 mm
Column Diameter 98mm
Dimensions (h x w x d) 1970 x 410 x 560 mm
Table Dimensions 350 mm x 250 mm
