ALFRA Lifting Magnet TML 250

Stock Code: PTATML250
MPN: 41250

Descriptions

The basis of the TML 250 is our patented magnet technology. The name: TML (Thin Material Lifting). There’s a wide range of application possibilities in these three letters. For example, the lifting magnet is showing an excellent performance on thin-walled materials. On materials from a thickness of 3 mm, the holding force is already 90 kg (for uncoated and stainless steels). From a thickness of ten millimeters, the TML 250 is convincing with a load capacity of 250 kg – with a triple safety factor. And with a dead weight of 3.5 kg, the magnet is up to 70 percent lighter than conventional permanent magnets with a comparable performance.

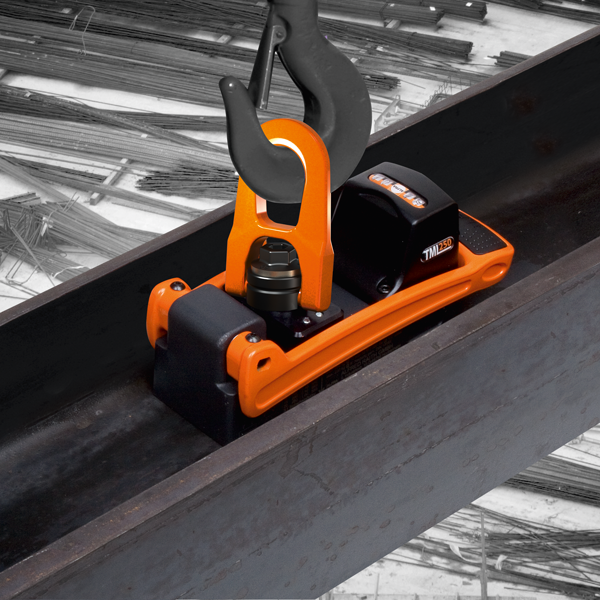

Like all Alfra products, this versatile helper in metal working, on building sites or in shipyards is particularly user-friendly: Activate the TML 250 by means of a practical one-hand operation inside a T-beam and connect the 360° rotating load swivel with your crane, ceiling crane or hoist - for example by means of a hook with safety flap or a load loop. Thanks to the resistant magnetic surface with TiN coating, theTML 250 is extremely robust.

Technical Details:

Prod.-No. 41250

Max. load-bearing capacity 250 kg (550 lbs)

Breakaway force > 750 kg (1,653 lbs) on 10 mm (3/8"") steel S235 ab 10 mm Stahl S235

Min. material thickness 2 mm (1/16“)

Dead weight 3,5 kg

Dimensions LxW 191 x 71 mm

(7-1/2"" x 2 -13/16"")
