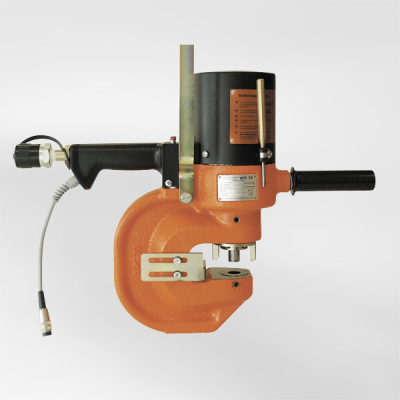

ALFRA-Press - Hydraulic Puncher APS 70

Stock Code: PTAPS70
MPN: 23002

Descriptions

29,9 kg weight, 30 tons punching force, 700 bar, 70 mm jaw depth - the ALFRA-Press APS 70 is a genuine power package. Belonging to the series of our hydraulic punches it hast he potential to punch heavy metal plates and even T-beams with a material thickness up to 13 mm. Depending on the used pump, the punching time for one hole is between 3 and 5 seconds. The APS 70 is compatible with the Alfra hydraulic pumps AHP-M or AHP-L. The maximum hole diameter is 22 mm (22X14 mm for long holes).

Prod.-No. 23002

Max. hole-Ø 22 mm 7/8""

Max. oblong hole 22 x 14 mm 7/8"" x 9/16""

Max. material thickness (S235) 13 mm 1/2""

Overall punch time with pump ... AHP-M: approx. 5 sec.

AHP-L: approx. 3 sec.

Jaw depth 70 mm 2-3/4""

Max. pressure 700 Bar 10,150 psi

Punching force 30 t

Punch stroke 18 mm 11/16""

Weight 29.9 kg / 65.9 lbs
