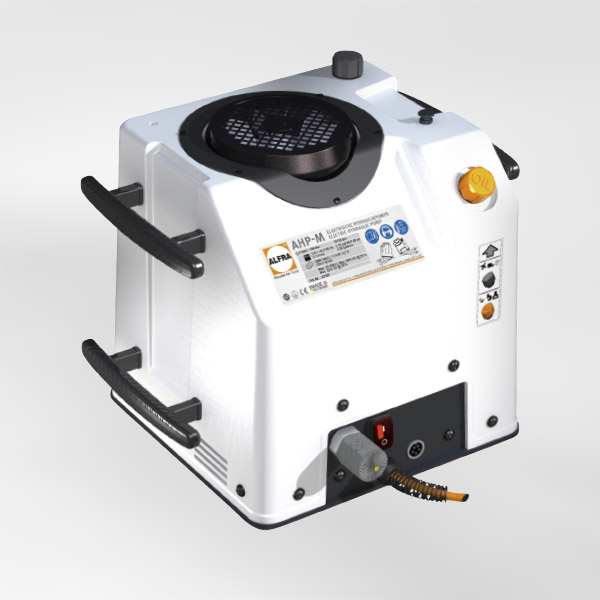

ALFRA Electric Hydraulic Pump AHP-M 110V

Stock Code: PTAHP-M110
MPN: 23189

Descriptions

Strong, compact, robust - the Alfra electric hydraulic pumps in the white clean-look are much more than easy on the eye. The powerful drive units are the perfect partner for our hydraulic punching yokes. With 700 bar pressure and a maximum delivery rate of 1.1 l/min, the AHP-M is providing speed - if necessary also in continuous operation. Due to the additional fan the pump is showing full power even in hot regions. A further advantage: extra-large, non-slip transport handles, on which the network cable can also be safely wound up.

Technical Specifications:

Max Pressure: 700 Bars

Max Pumping Capacity: 1.1 l/min

Oil Type: HLP46

Fill Volume: 3.2l

Active Volume: 2.2l

Weight: 29kg

Operating Voltage: 230 V/ 50 Hz

Rating: 1.3kW

Power Consumption: 5.65 A

Motor Speed: 2800 1/min
