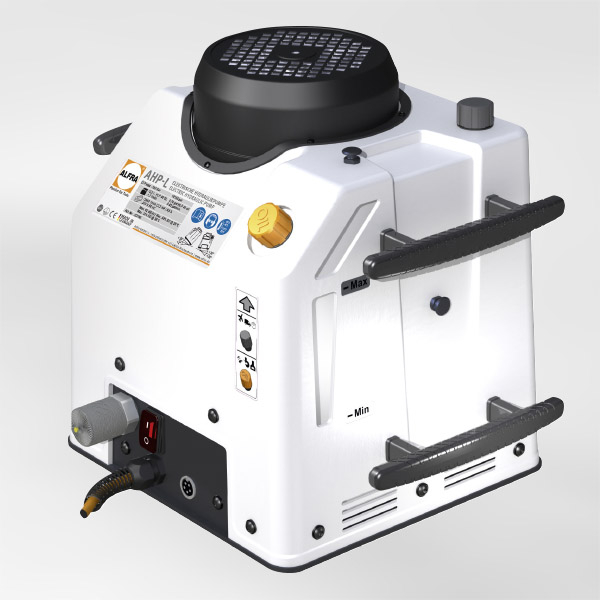

ALFRA Electric Hydraulic Pump AHP-L 240V

Stock Code: PTAHP-L240
MPN: 23190

Descriptions

Sophisticated technology in the smallest space - this is what our Alfra electro-hydraulic pumps stand for. Due to the compact design, the powerful drive units also find room when things are getting tight. With 700 bar pressure and a maximum delivery rate of 1.7 l/min, the AHP-L is providing speed while punching with the ALFRA hydraulic punching yokes - if necessary also in continuous operation. Due to the additional fan the pump is showing full power even in hot regions. A plus point in terms of user-friendliness: extra large, non-slip transport handles, on which the network cable can be wound up safely. The clean-look white housing is not only visually appealing, the impact-resistant plastic is also extremely durable.

Technical Specifications:

Max Pressure: 700 Bars

Max Pumping Capacity: 1.7 l/min

Oil Type: HLP46

Fill Volume: 3.0l

Active Volume: 2.2l

Weight: 34kg

Operating Voltage: 230 V/ 50 Hz

Rating: 2.2kW

Power Consumption: 9.8 A

Motor Speed: 2860 1/min
