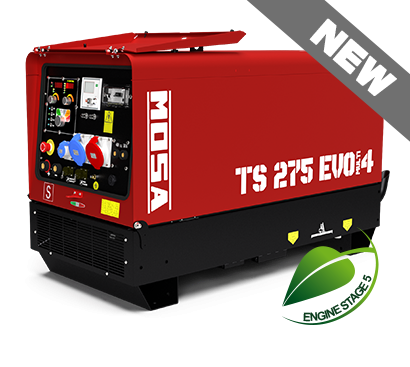

TS 275 EVO Multi4 - Diesel Welder Generator

Stock Code: WPMM35.C1SS00CV
MPN: 35.C1SS00CV

Engine Driven Welder Diesel KOHLER KDW702 - Three-phase asynchronous Alternator - Water cooling

WELDING

Welding current: 20A / 20.8V ÷ 270A / 21V (Stick) | 20A / 10.8V ÷ 270A / 20.8V (TIG)

Service: 200A / 28V @ 100% - 230A / 29.2V @ 60% (Stick) | 200A / 18V @ 100% - 230A / 19.2V @ 60% - 270A / 20.8V @ 35% (Tig)

Open circuit voltage (no-load voltage): 66 Vcc (68 Vcc peak)

POWER RATINGS

Three-phase power: 8 kVA (6.4kW) / 400 V / 14.4 A

Single-phase power: 5 kVA/kW / 230 V / 21.7 A

Single-phase power: 2.5 kVA/kW / 110 V / 22.7 A

Single-phase power: 5 kVA/kW / 48 V / 104 A

GENERAL SPECIFICATION

Tank capacity: 38 l

Running time (welder 100%): 15 h

Measured acoustic power LwA (pressure LpA): 94 dB(A) (70 dB(A) @ 7 m)

Guaranteed acoustic power LwA (pressure LpA): 95 dB(A) (70 dB(A) @ 7 m)

Weight: 390 Kg

Dimensions max. on base L x l x h: 1433x710x931 mm
