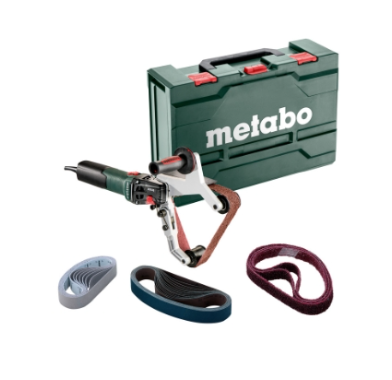

RBE 15-180 Tube Belt Sander Set

Stock Code: PTM15-180
MPN: 602243500
EAN / GTIN: 4007430298799

Descriptions

Powerful tube belt sander for processing even larger stainless steel pipes

Large wrap angle of 270° for smooth surfaces and quick work progress

Metabo Marathon motor with patented dust protection for long service life

Vario-Tacho-Constamatic (VTC)-Full Wave Electronics with Thumbwheel: for working at customised speeds to suit the application material and speeds that remain almost constant, even under load

Rubberised drive roller: reduces slipping of the sanding belt

Tool-free change of sanding belt and adjustable belt guide

Overload protection: protects the motor from overheating

Electronic soft start for smooth start-up

Restart protection: prevents unintentional start-up after power supply interruption

Auto-stop carbon brushes to protect the motor

With metaBOX, the intelligent solution for transport and storage

Scope of delivery

Side handle, 10 Sanding belts zirconia (40x760 mm; P80), 2 Pyramid sanding belts (40x760 mm; P280/A65), 2 Pyramid sanding belts (40x760 mm; P400/A45), 2 Pyramid sanding belts (40x760 mm; P600/A30), 2 Pyramid sanding belts (40x760 mm; P1200/A16), 3 Fleece bands (40x760 mm medium), metaBOX 185 XL

Technical specifications

Rated input power

1550 W

Output power

940 W

Belt speed in idle

8.4 - 28 m/s

Dimensions of grinding belt

40 x 760 mm

Maximum pipe diameter

180 mm

Wrap angle

270 °

Weight (without power cable)

3.4 kg

Cable length

4 m

Sound pressure level

94 dB(A)

Sound power level (LwA)

105 dB(A)

Uncertainty of measurement K

3 dB(A)

Surface grinding

2.5 m/s²

Uncertainty of measurement K

1.5 m/s²

Bandbreite

40 mm

Bandlänge

760 mm

Breite

355 mm

Gewicht

3.4 kg

Höhe

217 mm

Leistungsaufnahme

1550 W

Länge

4000 mm

Max. Bandgeschwindigkeit

28 m/min

Min. Bandgeschwindigkeit

84 m/min

Scope of supply

Side handle

10 Sanding belts zirconia (40x760 mm; P80)

2 Pyramid sanding belts (40x760 mm; P280/A65)

2 Pyramid sanding belts (40x760 mm; P400/A45)

2 Pyramid sanding belts (40x760 mm; P600/A30)

2 Pyramid sanding belts (40x760 mm; P1200/A16)

3 Fleece bands (40x760 mm medium)

metaBOX 185 XL

Top Features

Powerful tube belt sander for processing even larger stainless steel pipes

Large wrap angle of 270° for smooth surfaces and quick work progress

Vario-Tacho-Constamatic (VTC)-Full Wave Electronics with Thumbwheel: for working at customised speeds to suit the application material and speeds that remain almost constant, even under load

Further specifications

Mains voltage

220 - 240 V

Drive type

Mains

Maximum pipe diameter

180 mm
