KNSE 9-150 Fillet Weld Grinder Set

Stock Code: PTM12-150
MPN: 602265500
EAN / GTIN: 4007430298867

Descriptions

Very flat fillet weld grinder for processing stainless steel fillet welds in tight spaces

Powerful, and with double reduction gearing for effective working

Metabo Marathon motor with patented dust protection for long service life

Thumbwheel controlled Vario-Constamatic (VC)-Full wave electronics ideal for working on materials requiring customised speeds, and at speeds which remain almost constant under load

Robust planetary gear train for particularly long service life

Adjustable without tools, removable guard

Low-maintenance belt drive for long service life

Overload protection: protects the motor from overheating

Electronic soft start for smooth start-up

Restart protection: prevents unintentional start-up after power supply interruption

Auto-stop carbon brushes to protect the motor

With metaBOX, the intelligent solution for transport and storage

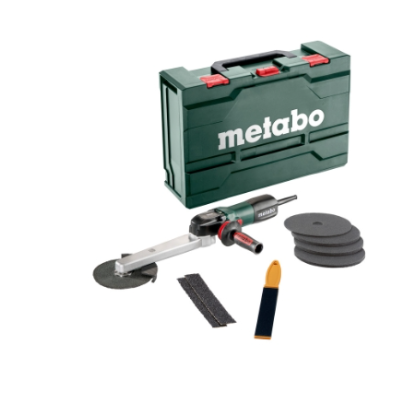

Scope of delivery

Guard, Inner support flange, Nut with two holes, Side handle, Flat-pin spanner, Hexagonal wrench, 1 Fleece compact disc (150x6x25.4 mm; medium), 1 Fleece compact disc (150x6x 25.4 mm; very fine), 2 Fleece compact discs (150x3x 25.4 mm; medium), 1 Polishing file incl. 2 sanding paper strips, metaBOX 185 XL

Technical specifications

Rated input power

950 W

Output power

510 W

No-load speed

900 - 3800 rpm

Disc diameter

150 mm

Spindle thread

M 14

Weight (without power cable)

2.7 kg

Cable length

4 m

Sound pressure level

89 dB(A)

Sound power level (LwA)

100 dB(A)

Uncertainty of measurement K

3 dB(A)

Polishing

2.5 m/s²

Uncertainty of measurement K

1.5 m/s²

Breite

2472 mm

Gewicht

2.7 kg

Höhe

768 mm

Leistungsaufnahme

950 W

Länge

4000 mm

Max. Leerlaufdrehzahl

3800 U/min

Min. Leerlaufdrehzahl

900 U/min

Werkzeugaufnahme

M 14

Scope of supply

Guard

Inner support flange

Nut with two holes

Side handle

Flat-pin spanner

Hexagonal wrench

1 Fleece compact disc (150x6x25.4 mm; medium)

1 Fleece compact disc (150x6x 25.4 mm; very fine)

2 Fleece compact discs (150x3x 25.4 mm; medium)

1 Polishing file incl. 2 sanding paper strips

metaBOX 185 XL

Top Features

Very flat fillet weld grinder for processing stainless steel fillet welds in tight spaces

Powerful, and with double reduction gearing for effective working

Metabo Marathon motor with patented dust protection for long service life

Thumbwheel controlled Vario-Constamatic (VC)-Full wave electronics ideal for working on materials requiring customised speeds, and at speeds which remain almost constant under load

Further specifications

Mains voltage

220 - 240 V

Drive type

Mains
