Roller Table RTI-2000

Stock Code: RTI-2000
MPN: RTI-2000

Descriptions

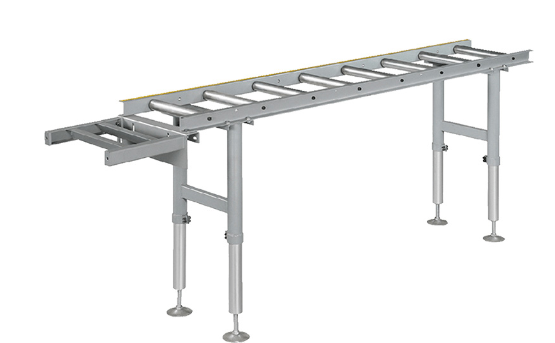

The Roller Table RTI-2000 is an Infeed Roller Table due to the lack of a scaled material stop. However, this industrial equipment can just as easily be put on both the input and output side of your saw.

A roller table can transform the efficiency of your cutting. They can assist with transportation to and from the blade. Additionally, a good quality roller table acts to keep the material level.

The Roller Table RTI-2000 can hold 800kgs of material, and transport it smoothly towards or away from the cutting machine’s blade. More than enough to support almost any application.

The table is fully adjustable between 600mm and 1000mm tall. This allows it to assist the setup for a large variety of metal coldsaws and bandsaws, not just DIMAKIN machinery.

The length of this model is 2,000mm, and is the smaller of the models offered by DIMAKIN. However, if you require a longer version, a three-metre version of the same table is called RTI-3000. Additionally, if more length is needed, these roller tables have the ability to link together to create a much longer assembly line.

With eight rollers at 300mm wide, this roller table will be an invaluable addition to your space.

Infeed Roller Table RTI-2000 FEATURES:

2000mm x 300mm working area dimensions
Adjustable height range between 600mm and 1000mm
Eight heavy duty supportive rollers
800kg maximum load capacity

This model is designed to be your Infeed Roller Table. We also offer Outfeed Roller Table to compliment your setup! These rollers are defined as outfeed rollers due to their scaled material stops which allow repeatability and accuracy in your cuts!

Specifications

Length 2000mm

Width 300mm

Adjustable height 600mm - 1000mm

Power N/A

Rollers 8

Scale type None

Max load capacity 800kgs

Packaging size 2300mm x 380mm x 190mm

Weigth TBA
