Powermax65 SYNC 400v 75° Handheld Torch, 15° Handheld Torch - 7.6m

Stock Code: WHY083360
MPN: 083360
EAN / GTIN: 00662310499075

Descriptions

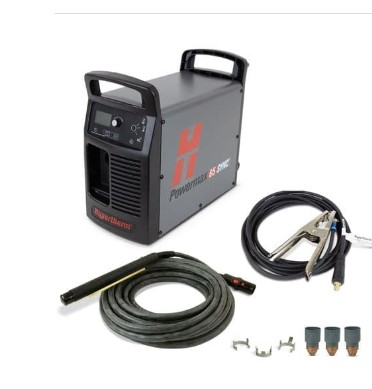

Hypertherm 083360 twin hand cutting torch package includes Powermax65 Sync powersource 083368, 7,6m SmartSYNC hand cutting torch 75 degree 059726, 7.6m SmartSYNC hand cutting torch 15 degree 059723, 7.6m earth return lead 223125, 2 off 428931 65 amp drag cut cartridge, 2 off 428933 45 -85 amp Max control gouging cartridge. CE version 380-400v 3 phase input.

The Hypertherm Powermax65 SYNC is a next-generation professional grade air plasma cutter that dramatically simplifies system operation for production cutting and gouging up to 20 mm (3/4) and severance cutting up to 32mm.

The Hypertherm 65 SYNC Features automated system process set-up via advanced RFID-enabled SmartSYNC torches and a revolutionary single-piece cartridge consumable that provides trackable utilization data.

The Powermax65 SYNC maximises productivity through reductions in downtime, optimised cut quality performance and streamlined consumable inventory management.

The SYNC system now uses a single cartridge that replaces the traditional 5 piece stack which eliminates the wrong consumable combination being fitted to the torch, the cartridge automatically sets the cutting or gouging mode along with the correct current to suit the cartridge.

4 colour coded cartridges are available for hand cutting, mechanised cutting, gouging and flush cutting.

Easy to use

Cartridges are easy to identify by process with clear laser marking and color coding to eliminate part mix-ups.

RFID-enabled SmartSYNC torches and cartridges automatically set the correct amperage and operating mode, eliminating setup errors.

End-of-life consumable detection eliminates the uncertainty of knowing when to change the cartridge.

Less operator fatigue when using hand torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material and will also be used on robotic torches.

Minimize operation costs

Simplified system operation minimizes the time and costs spent on training and troubleshooting.

Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts.

SmartSYNC torches feature RFID capability that when coupled with a Hypertherm cartridge will communicate with a Powermax SYNC system to automatically set the amperage and process on the power supply. Available in handheld, mechanized and robotic torch configurations.

Cartridge use

By using the optional cartridge reader, the performance and life of each cartridge can be very easily assessed by scanning the infomation stored within the cartridge itself. using a smart phone, no need to connect to the power source to read the data.

Cartridge usage data provides valuable insights for improving cutting operations and consumable inventory management.
