Hypertherm Powermax45 SYNC CE/CCC HS 400V/CPC/75° TCH 25'

Stock Code: WHY088567
MPN: 88567

Descriptions

Hypertherm Powermax45 SYNC plasma cutter CE

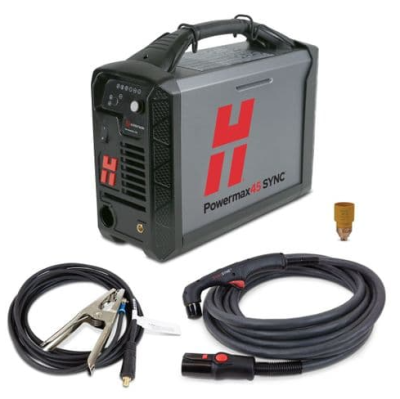

088567 Package includes 415 volt 3 phase Hypertherm Powermax 45 SYNC power source, CE marked for use in Europe, 6.1m 75 degree SmartSync hand torch, 6.1m earth lead, 45 amp drag cutting cartridge. Factory fitted with a CPC port for remote connection via Hand switch or CNC control.

For metal workers who want the most versatile system available to Cut, Gouge and mark, Powermax45 SYNC delivers the best return on investment with a patented single-piece cartridge, up to 5x longer consumable life, and greater cutting power than higher-amperage competitors.

With the relevant cartridge this machine can be used for all of these process's :-

Drag cutting up to 45 Amps in direct contact with the workpiece

Fine cut, for improved cutting on materials 3mm and below

Max control Gouging - precise metal removal for light metal washing

Max removal Gouging - For aggressive removal of weld seams

Mechanised Cutting

Metal Marking - at 10 Amps and Above

For Both 230 volt single phase and 415 volt 3 phase versions of this machine the cutting capacities are the same.

Max Cutting thickness ( Severence Cut) 29mm @ 125mm/min

Recommended Production Cut 16mm @ 500mm/min

Recommended pierce capacity for mechanised systems with DTHC 12mm.
