Exact PipeCut Infinity System - 110V

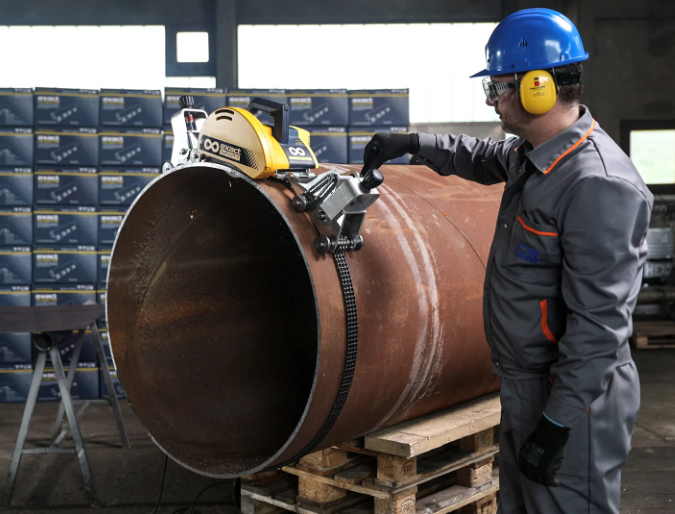

Cutting the world’s largest pipes with Infinity

As the name indicates, Infinity is pipe cutting without boundaries in terms of cutting capacity for pipe outside diameter. You can basically cut all pipe sizes (outside diameter) from 360 mm (14”) upwards.

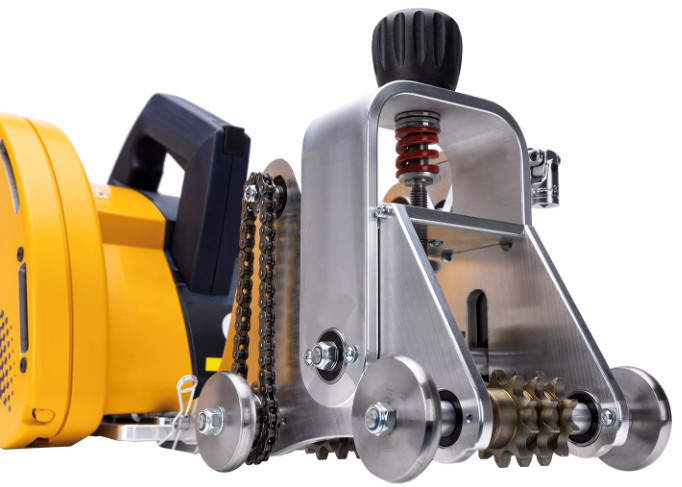

Exact Infinity is a completely new type of pipe cutting system, unlike the other exact models, it uses a chain type of gripping mechanism. Thanks to the flexibility of the chain segments, it allows you to extend the chain segment gripping unit as much as you like.

Thanks to this innovative method, the boundaries of pipe cutting diameter limitations are no longer an issue.

Also available as a Cut+Bevel option for cutting and beveling cast iron & plastic pipes in one process.

Package Includes

Infinity standard equipment

  • Exact PipeCut System Shoulder Bags, 2 pcs

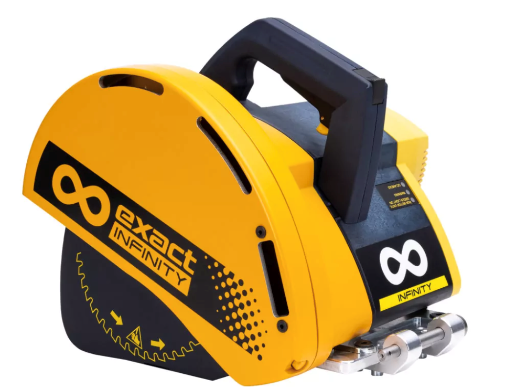

  • Exact PipeCut Infinity motor unit with Cermet 165 blade installed
  • Tensioner device
  • Tensioner device with crank
  • Chain segments for attaching the saw to pipe:

2 m, 2 pcs

1 m, 1 pc

0,5 m, 1 pc

0,2 m, 2 pcs

0,1 m, 1 pc

  • Operating instructions
  • Allen keys, 5 mm and 2 mm, attached to saw

Please note

The standard equipment of Infinity includes chains to cover pipe sizes (outside diameter) from 360 mm (14”) to 1850 mm (73”).

If you need chains to cut pipes over 1850 mm (73”), simply order additional chain segments, which are sold in 2 m (78”) increments.

The standard equipment chains cover the most common large pipe sizes.

Technical Data

Pipe OD 360 mm – Infinity (no upper limit)

Max. wall thickness 12mm (0.5”) iron / 110V, 20mm (0.78”) iron / 230V, 43 mm (1.7”) plastic, 12 mm (0.5”) steel / 120V, 20mm (0.8”) steel / 230V

Pipe material Aluminum, Cast iron, Copper, Ductile (nodular cast iron), Glass fiber, Plastic, Stainless/Inox steel, Steel

Blade diameter 140mm (5.51”), 165 mm (6.5"), 180 mm (7.2"), 190 mm (7.6")

Mounting bore 62mm (2.44”)

No-Load speed I (low) = 1900/min, II (high) = 2885 /min

Recommended generator capacity 4,9kVA for 230V, 3kVA for 100 V-120V

MPN7010428-110
BRANDEXACT
ConditionNew
