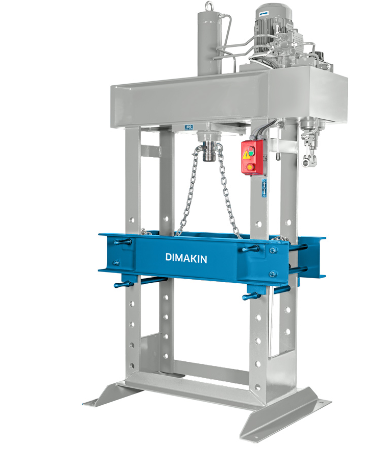

Workshop Press WSP-30

Stock Code: WSP-30
MPN: WSP-30

Descriptions

The Workshop Press WSP-30 is the ideal entry level model into hydraulically powered presses, one step up from a manually actuated machine. Instead, operation of this machine is controlled by a lever that directs the machine up or down. However, in addition to this, precise movements can also still be produced manually. To do this, you can use the additional hand pump located at the side.

This machine allows the operator to turn very little effort into up to 30 tons of pressure. This pressure can be maintained and monitored with ease by viewing the integral pressure gauge located in the frame.

In addition to the ease of use in being a powered machine rather than a purely manually actuated machine, this machine features a moveable head. This massively increases your options when pressing.

With eight interchangeable rungs to support the material bed on, the daylight of the machine is 900mm, allowing large objects to be worked on within the machine. In addition to this, the working size of the Workshop Press WSP-30 is 720mm x 300mm. Additionally, the stroke size is up to an impressive 400mm. Unlike some suppliers, V-blocks come as standard in all DIMAKIN workshop presses.

This machines frame is made from fully welded boiled steel, and weighs in at 600kgs. This allows it to handle the high pressures needed for every day use.

With a larger bed than its smaller cousin, chains are included to assist in adjusting the working height. In conclusion, this machine will be an invaluable addition to your workshop for many lifetimes.

Workshop Press WSP-30 FEATURES:
