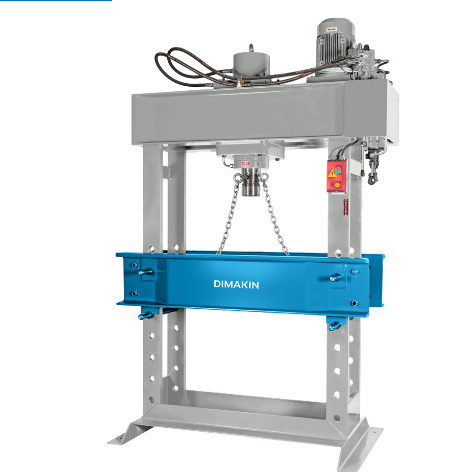

Workshop Press WSP-100

Stock Code: WSP-100
MPN: WSP-100

Descriptions

The Workshop Press WSP-100 is the next level up from the 60 ton capacity press. Identically to all other powered models, operation of this machine is lever controlled, moving the piston head up or down. Again, in addition to this, precise movements can also still be produced manually with a hand pump located at the side.

This machine allows the operator to convert almost zero effort into up to 100 tons of pressure. This pressure can be maintained and monitored with ease by viewing the integral pressure gauge located in the frame.

In addition to the ease of use in being a powered machine, this machine features a moveable head, increasing the operators options when pressing.

Again, with eight interchangeable rungs to support the material bed on, the daylight of the machine is 900mm, allowing large objects to be worked on within the machine. In addition to this, the working size of the Workshop Press WSP-100 is now 1010mm x 300mm. Additionally, the stroke size is again 400mm. Unlike some suppliers, V-blocks come as standard in all DIMAKIN workshop presses.

This machines frame is made from fully welded boiled steel, and weighs in at 1000kgs, or one ton. Because of this, the machine is capable of handling its 100 tons capacity all day long.

As with all powered hydraulic presses from DIMAKIN, chains are included to assist in adjusting the working height as standard. To conclude, this machine will add a tons of invaluable assistance for many years to come!
