CIBO FinitAll 230V Fillet Weld Grinder Kit in Steel Case

Stock Code: PTF-FINITALL230VSET
MPN: SMFASET/A

Price Unavailable

Quantity: - +

Descriptions

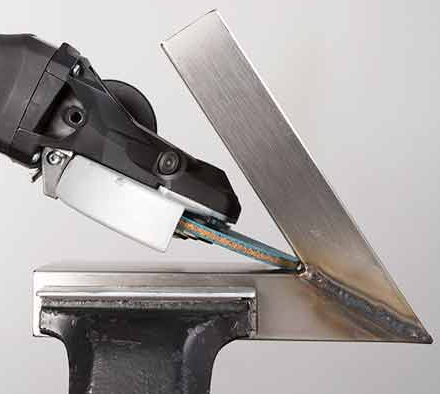

The all new variable speed narrow head grinder for fillet weld grinding and finishing.

Use Finit-All with…

– GA combi unitised discs to remove tig welds in corners and to satin finish or mirror polish in two or three steps

– Cutting and grinding discs where you need access in difficult to reach areas

– 150mm abrasive flap discs

– Felt and cotton mops for mirror polishing

– Cibo Time Saving Kits set 2,3,5 or 6 for a complete process.

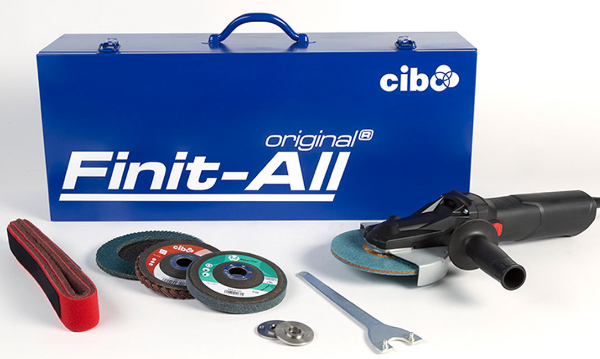

Finit-All Kit includes:

230 volt FinitAll motor unit

1 x GA7 combi unitised, 1 x RCD Med 125mm, 1 x SAG 5 125mm unitised, 1 x FORU / 60 rubbing block, 1 x FMGRT A Fine finishing belt, 1 x FNC 60 150mm zirconia flap disc

Machine Specification:

Motor Power: 1000 watt

Max disc dia: 150mm

Min rpm: 2,000 rpm

Max rpm: 7,600 rpm

Thread: M14

Spindle length: 19mm

Weight: 2.3Kg (excl power cable)

Vibration Data:

We can only give base test data for any of our machines as the data will vary dependent upon the type & grade of abrasive used, the density of a wheel & on the speed at which the machine is operated.

Surface grinding: 4.4 m/s2, variation (K) 1.5 m/s2

Sanding with back up pad: 2.5m/s2, variation (K) 1.5m/s2

Shipping weight: 10Kg 28 x 19 x 65cm
