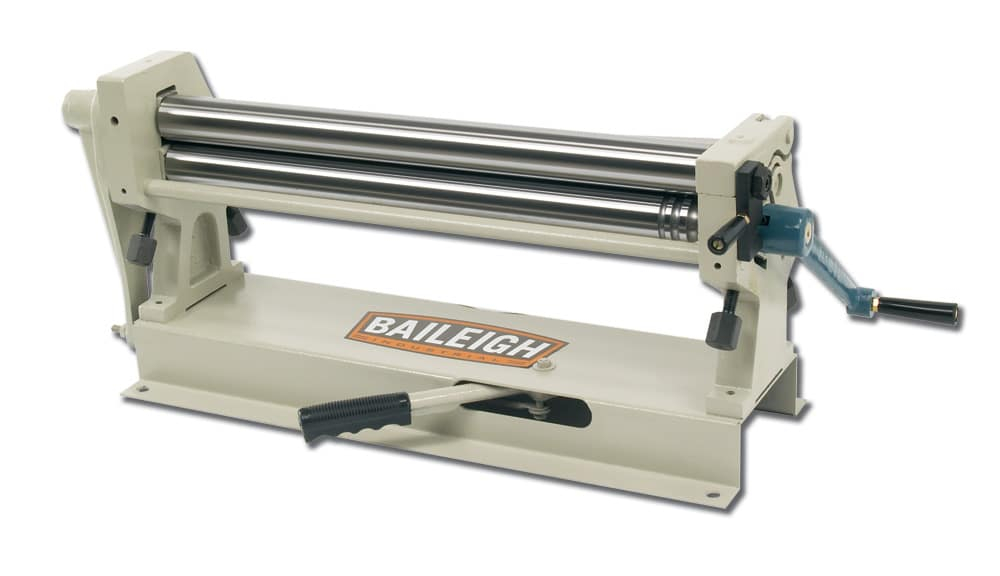

Baileigh SR-2420M Slip Roll

Baileigh SR-2420M Slip Roll

Stock Code: SR-2420M
MPN: SR-2420M
£1,023.75 (exc VAT) per 1
£1,228.50 (inc VAT)
Quantity: - +

Small bench top slip rolls have their place in most fabrication shops. In a lot of cases, these compact machines are more efficient to use when working on smaller projects. The SR-2420M manual roll former fits that description perfectly. It has the capacity to roll 20 gauge mild steel over its entire 24 length.

The SR-2420M, like all Baileigh Industrial slip rolls are built to last. It features a fully integrated frame that helps keep all three rolls in alignment to ensure the best possible results. It even incorporates a lever mechanism that helps open up the top roll when the form is complete. It even has three wire grooves for those jobs that require wire forming.

  • 610mm forming width
  • 1mm mild capacity
  • Manually powered
  • 3 wire grooves

Specifications

Item Number SR-2420M
Country of Manufacture Taiwan
Forming Width 610 mm
Upper Roll Dia. 50.8 mm
Minimum Forming Dia 76.2 mm
Capacity (Mild Steel) 1 mm
Gear Ratio 1:01
Power Manual
Shipping Weight 100 kgs.
Shipping Dimensions (Inches) 1118 x 381 x 533 mm

MPNSR-2420M
BRANDBaileigh
WEIGHT100kgs
ConditionNew
