PB_40-3 Roll bender

Stock Code: PB_40-3
MPN: PB_40-3
£4,524.63 (exc VAT) per 1
£5,429.55 (inc VAT)
Quantity: - +

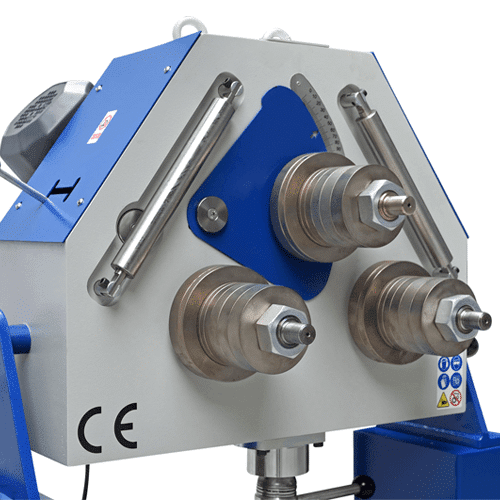

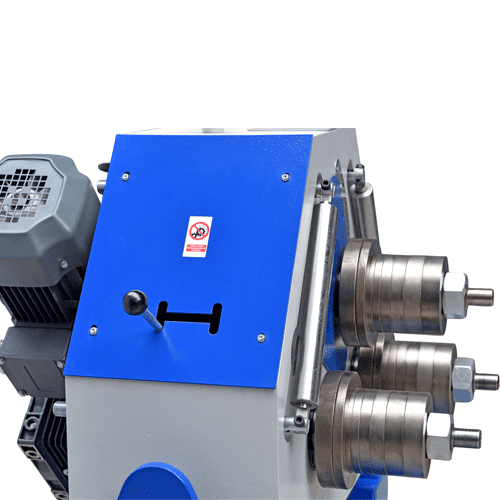

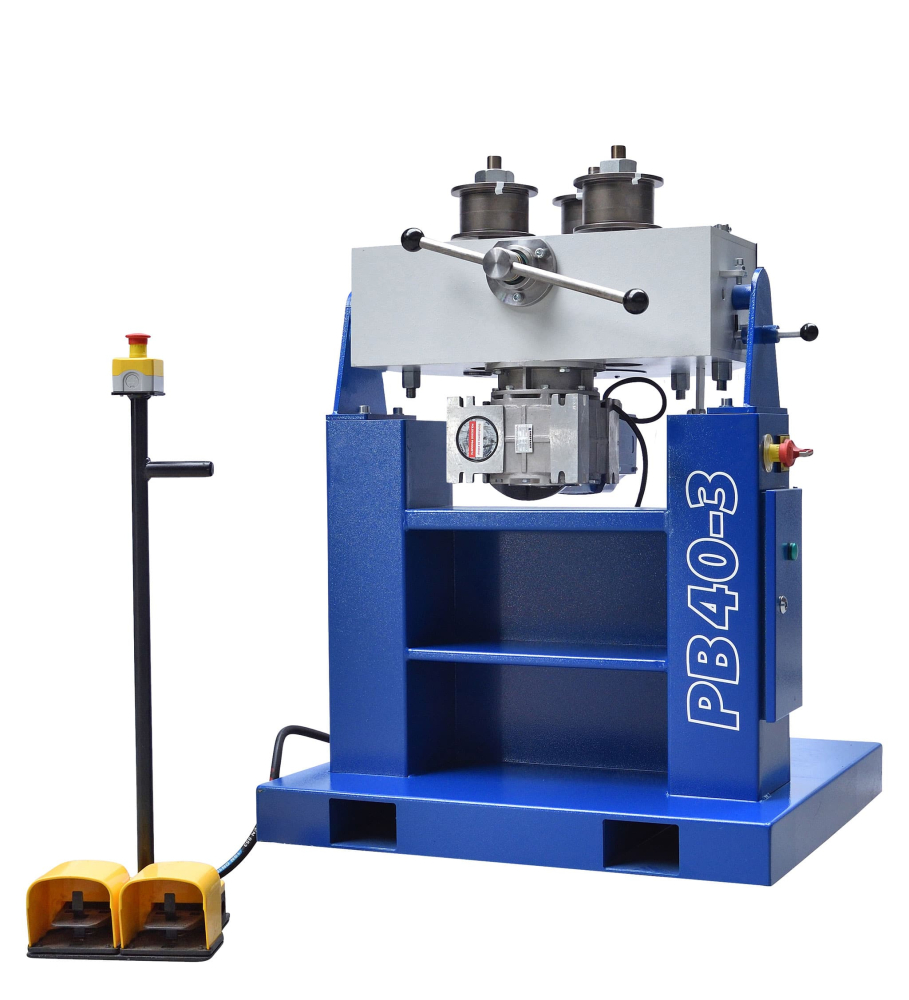

The PB 40-3 is a tube bending machine. This tube bending machine has a shaft diameter of 40 mm and 3 driven rolls. It is easy to switch between working with two or three driven rolls via the gearshift on the side of the machine. Operation of this roll former is done by a foot pedal, with the pedals you choose the turning direction of the rolls. This PB 40-3 has a hand wheel to adjust the position of the upper / centre roll. The position of this upper roll can be read out on the scale next to it. Furthermore, this tube bending machines can work in two positions: a vertical and a horizontal working position. Changing this working position is quick and easy. A standard set of rollers is included for bending profiles and flat bars. However, we can also deliver roller sets for bending tubes and pipes as an additional option. Further optional accessories are distance rollers, a yoke and a spiral bending device. These machines are provided with storage compartments for its accessories as well. This tube bending machines are robust and reliable. They are manufactured to the high quality materials and they fulfil the CE-directives.

  • Manual adjustment of the upper roll with a hand wheel
  • Vertical and horizontal working position
  • 40mm Shaft diameter

Specifications

  • Shaft diameter [mm]: 40
  • Roll diameter [mm]: 150
  • Rotational speed of rollers [rpm]: 10
  • Voltage [v/Hz]: 400/50
  • Driving motor [kW]: 1.5
  • Adjusting way [mm]: 72
  • Weight [kg]: 290
  • Total length [mm]: 870
  • Total width [mm]: 800
  • Overall height [mm]: 1350
MPNPB_40-3
BRANDPromac
WEIGHT290kgs
ConditionNew
