Stock Code: HPB-45
MPN: HPB-45
£23,002.88 (exc VAT) per 1
£27,603.45 (inc VAT)
Quantity: - +

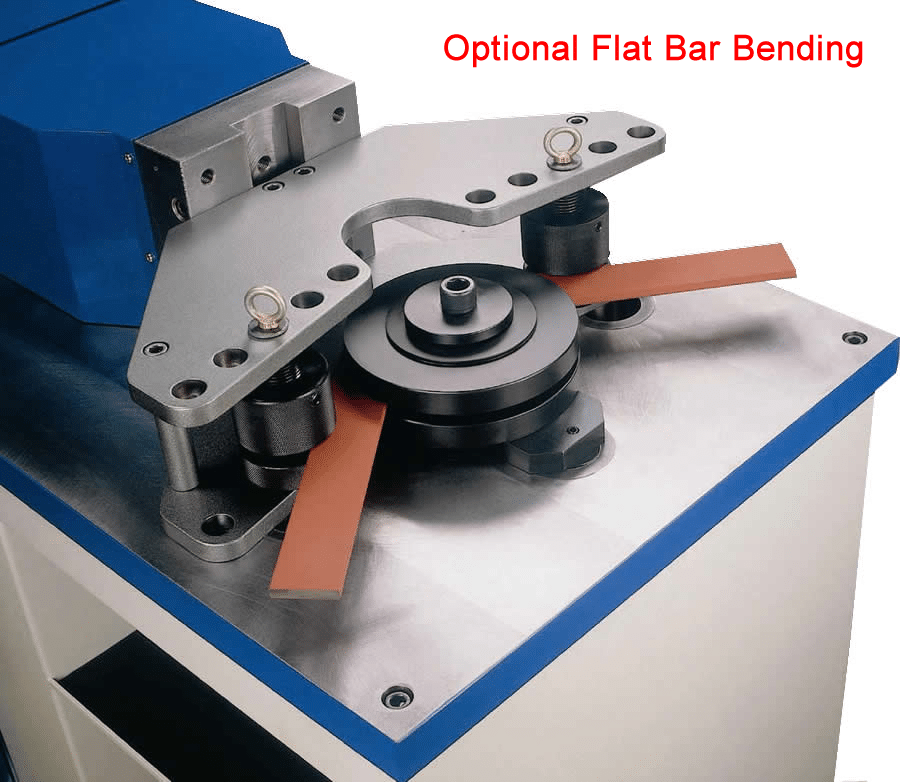

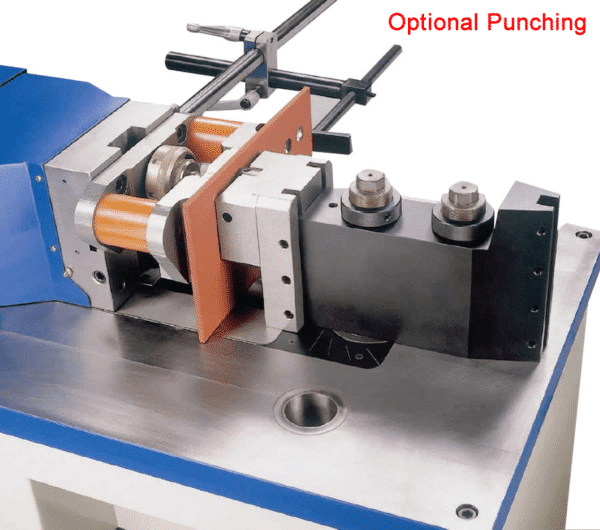

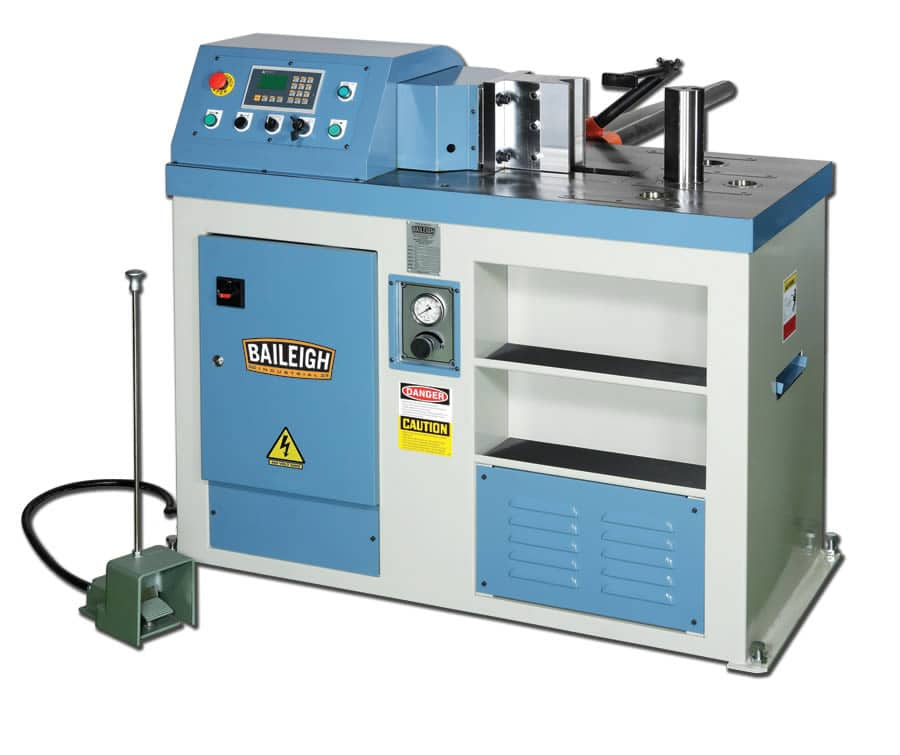

The HPB-45NC horizontal press brake from Baileigh Industrial is truly a must-have in any fabrications shop. This do-it-all machine can bend, punch, and shear with the correct tooling, yet takes up very little space. The HPB-45NC makes it much easier to make smaller parts such as flanges and brackets, because the material has a surface to lie on during the process. No having to hold one side and hope that it is perfectly level or lined up; the perfectly machine leveled table takes care of that for you.

The HPB-45NC runs on 415 volt three phase power and produces a whopping 45 tons of pressure with its 5hp motor. Operation of the HPB-45NC is very simple. It comes with an NC controller that can handle up to 99 programs with up to 10 bends per program. The operator can also put the machine in a manual mode for one off projects and set up as well. Bends are actuated by foot pedal control so the operator’s hands are free to assist with the material. The HPB-45NC has an accuracy of +/- .002.

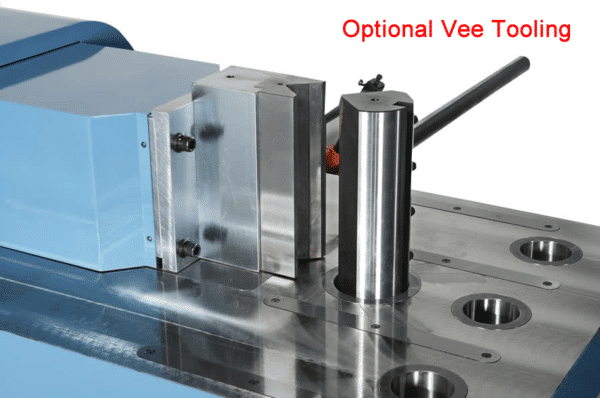

Other features included with the HPB-45NC horizontal press brake are a set of single-vee tooling (7.8″ high) as well as a manual back gauge to help with repeatability.

  • Hydraulic operation
  • 40 metric tons of pressure
  • Foot pedal operation

Specifications

Item Number HPB-45NC
Country of Manufacture Taiwan
Return Speed 14.5mm/sec
Motor 5 hp
Pressure 40 ton
Punch Height 200 mm
Working Width .51″ / sec.
Stroke Accuracy +/ .002″
Stroke Length 250 mm
Table Height 930 mm
Approach Speed 28.2mm/sec (low pressure)
Fixture Holes (1) @ 83 mm dia. / (3) @ 58 mm dia.
Power 400V / 3-phase
Shipping Weight 1010 kgs.
Shipping Dimensions (Inches) 1340 x 2015 x 1185 mm

MPNHPB-45
BRANDBaileigh
WEIGHT1010kgs
ConditionNew
