Baileigh HSP-20A Pneumatic Workshop Press

Stock Code: HSP-20A
MPN: HSP-20A

Descriptions

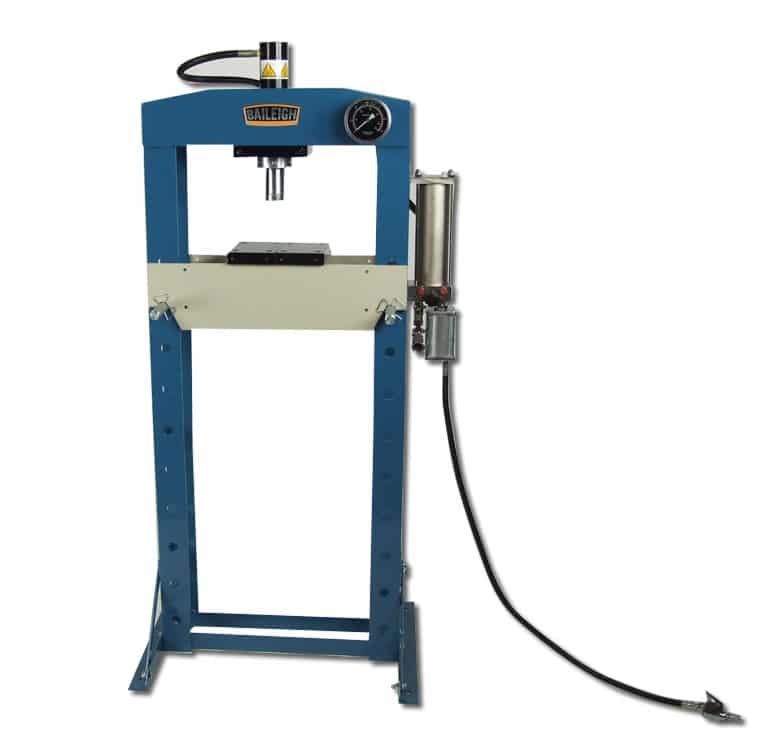

Looking for a high quality, inexpensive shop press? Baileigh Industrial's line of pneumatic H-frame presses fits that description and the first in the pneumatic range is the HSP-20A.

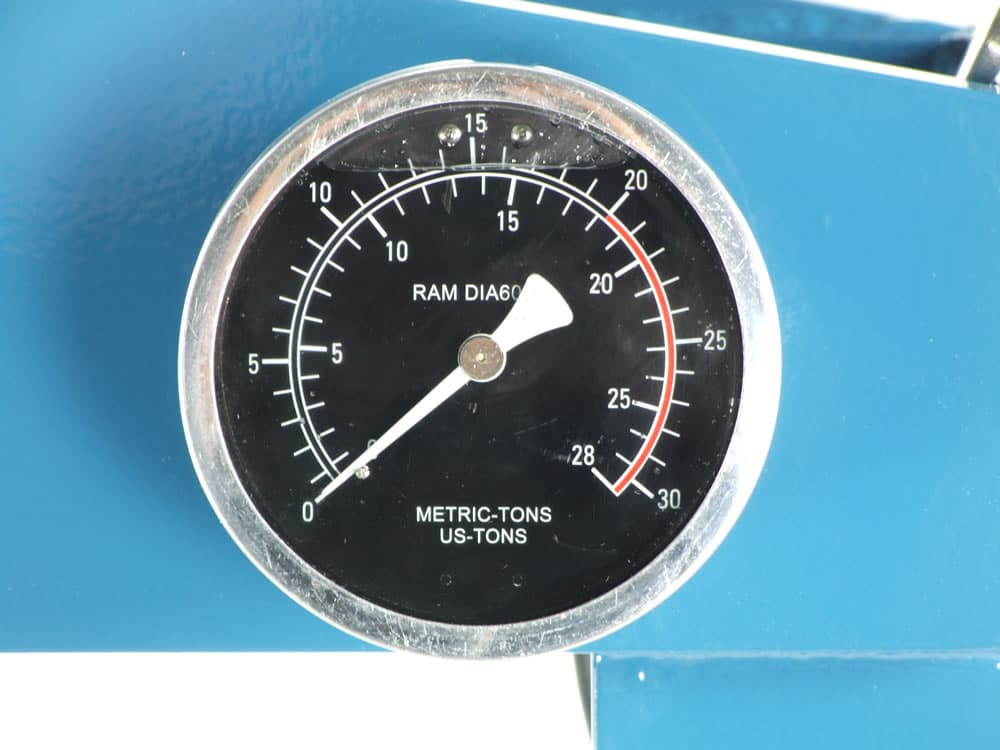

The HSP-20A features an extremely ridged, fully welded main frame, allowing the operator to use the full 20 tons capacity with no worries. Along with its fully welded frame, the HSP-20A shop press uses industrial-grade hydraulic components for years of care free use. A pressure regulator and gauge are also included.

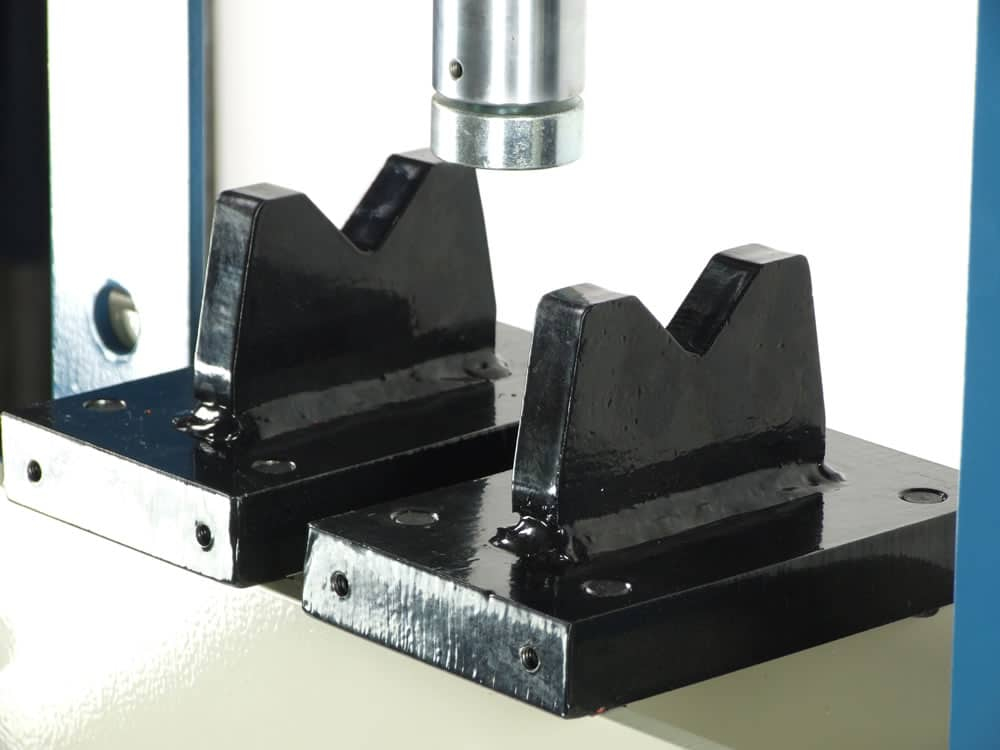

The HSP-20A pneumatic H-frame press also comes with its own set of vee block, making this press even greater value.

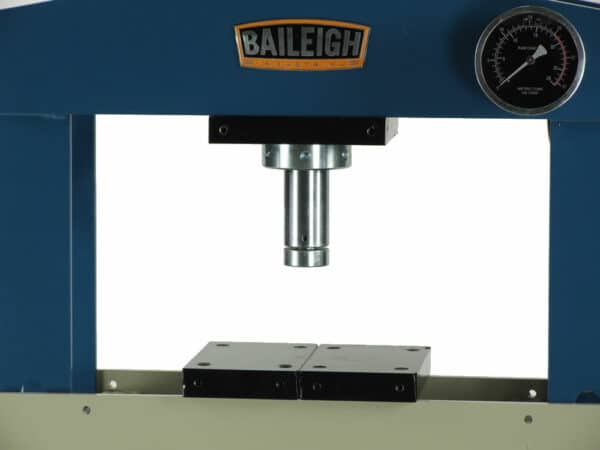

The working with of the HSP-20A is a full 483mm and the cylinder stroke is 190mm, these facts coupled with an easily adjustable table, complete this versatile shop press.

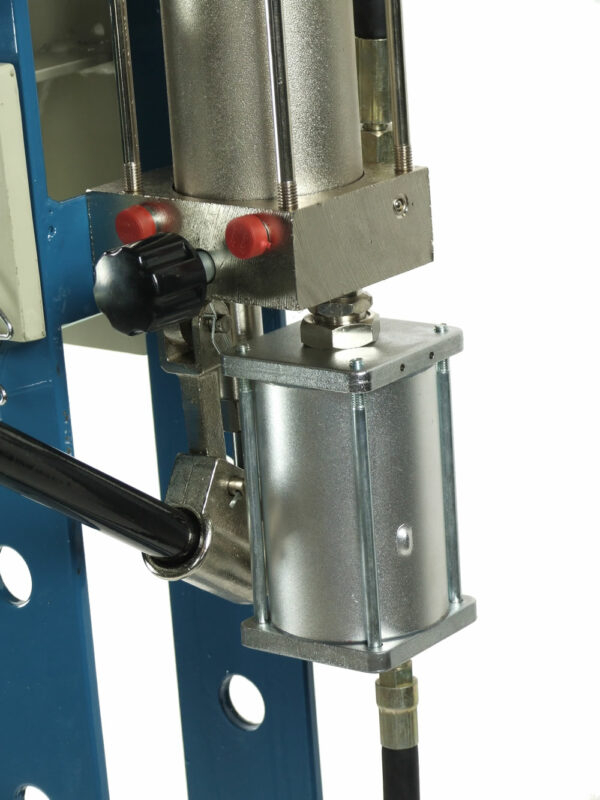

Pneumatic operation
18 metric tons of pressure

Specifications

Item Number HSP-20A
Piston Head Diameter 50.8 mm
Movable Cylinder Yes
Maximum Capacity 18 ton
Cylinder Stroke 190.5 mm
Cylinder Diameter 76.2 mm
Power Pneumatic / Manual
Shipping Weight 145 kgs.
Shipping Dimensions (Inches) 1727 x 1118 x 610 mm
