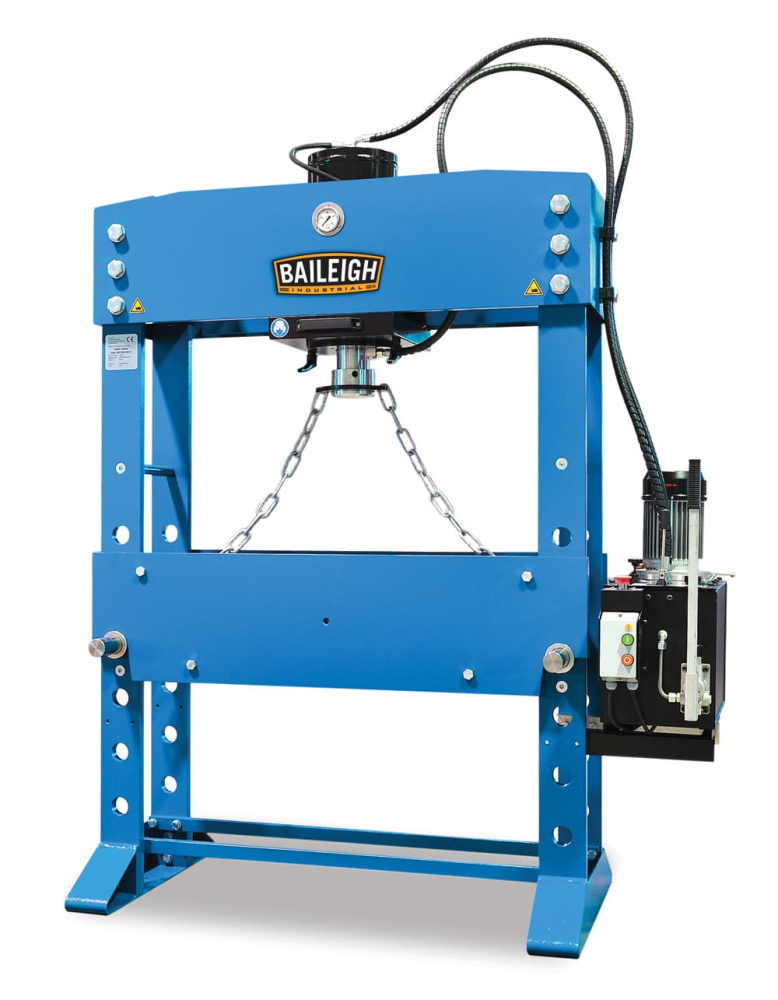

Baileigh HSP-110M Hydraulic Workshop Press

Stock Code: HSP-110M
MPN: HSP-110M

Descriptions

Built with only the best components, the HSP-110M from Baileigh Industrial sets the standard that all other hydraulic presses are measured by.

The HSP-110M has a 3hp, 400 volt, three phase motor that is able to push all 110 tons of force and not even break a sweat. And by using fully welded 3/8 plate steel for the framework, makes this press the most ridged press in its price range.

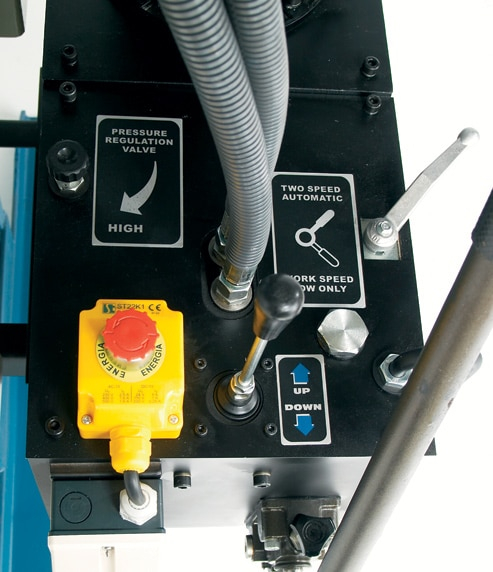

This press includes an automatic piston return, two speed down movement with pressure regulator, chrome piston, head screw, and a cylinder that is moveable left or right within the framework itself.

Operation of the HSP-110M hydraulic press has its option as well, the operator can chose operate the ram automatically (motorised) or manually (hand pump) for even more control.

Whether it is being used for general assembly, straightening work, or just for pressing bearings in and out of their housings, the HSP-110M is a great choice.

Hydraulic operation
100 metric tons of pressure
Movable cylinder design

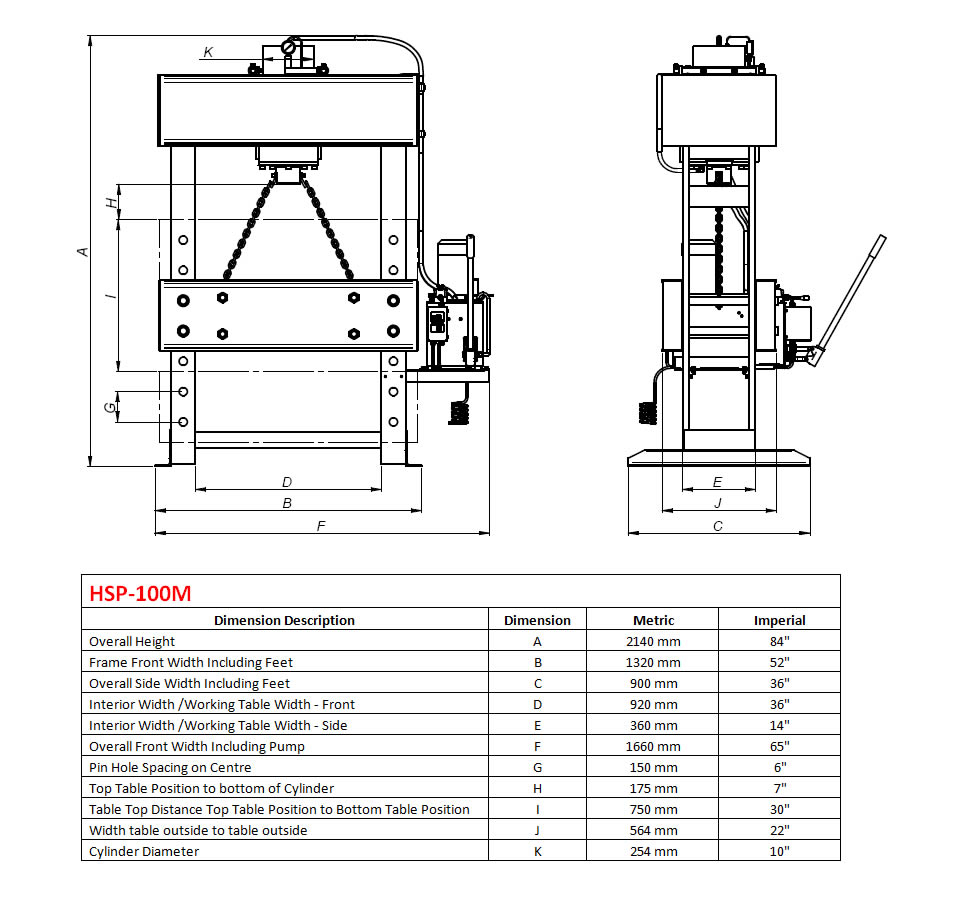

Specifications

Item Number HSP-110M
Country of Manufacture Netherlands
Return Speed 12.3 mm / sec.
Maximum Pressure 266 bar
Motor 2.2 kw
Piston Head Diameter 120 mm
Pump Speed 1.5 / 5.17 gal/min.
Oil Capacity 30 liters
Working Width .106″ / sec.
System Oil Capacity 12 liters
Lowering Speed .362″ / sec.
Maximum Capacity 100 ton
Cylinder Stroke 400 mm
Cylinder Movable Yes
Cylinder Diameter 254 mm
Rpm 3000
Power 400V / 3-Phase
Shipping Weight 955 kgs.
Shipping Dimensions (Inches) 1320 x 900 x 2140 mm
