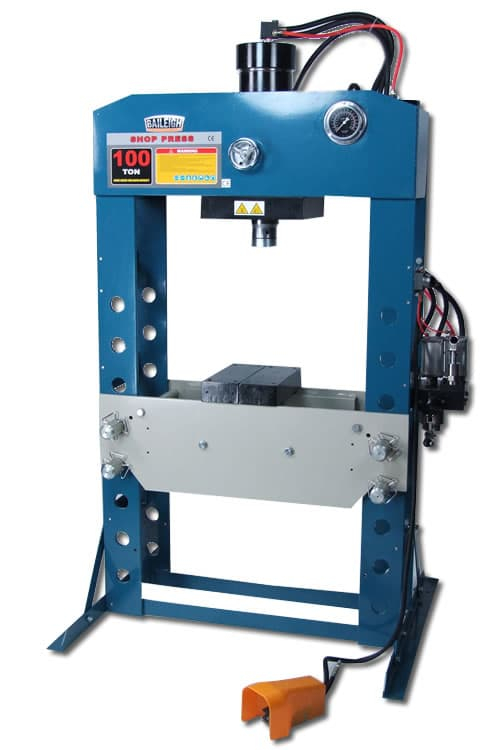

Baileigh HSP-100A Pneumatic Workshop Press

Stock Code: HSP-100A
MPN: HSP-100A

Descriptions

When you really need power to get the job done, the HSP-100A pneumatic shop press is the best you can get for the money.

Any shop would love the 100 tons of raw power that this press can deliver. A fully welded frame made from plate steel helps add rigidity for less flex and more accurate pressing. Like all Baileigh Industrial products, it is covered by a 1 year warranty and designed to last years in any shop environment.

The HSP-100A shop press uses industrial-grade hydraulic components to deliver the power.

A heavy-duty 165mm movable hydraulic cylinder is a great benefit when working on off-center parts.

The HSP-100A has a 300mm stroke length that is controlled using a foot pedal. If even more control is needed a hand operated lever is also included.

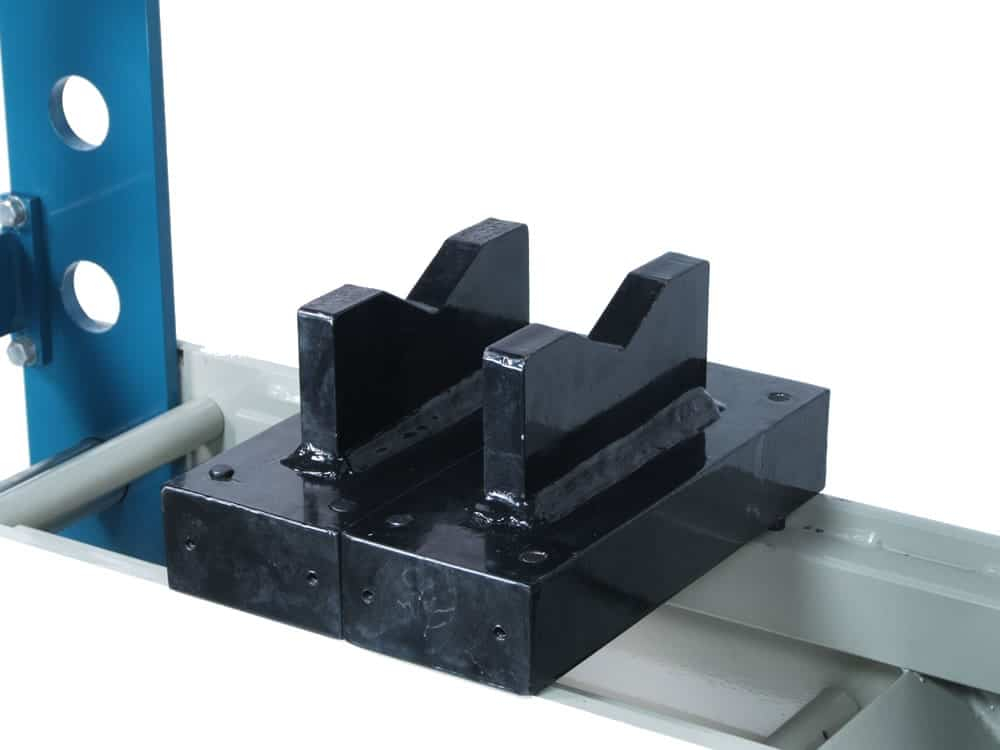

The HSP-100A from Baileigh Industrial also includes a set of V-blocks for even more value.

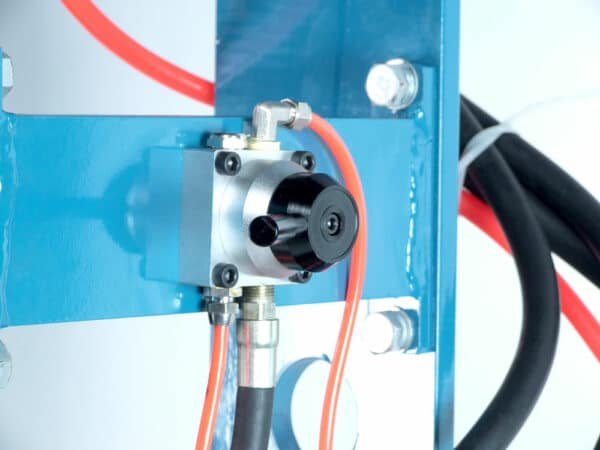

Pneumatic operation
89 metric tons of pressure

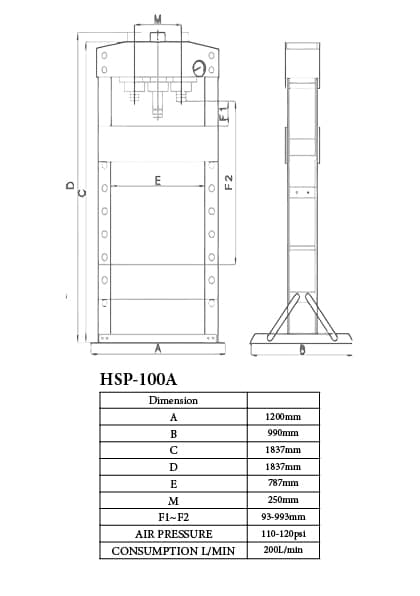

Specifications

Item Number HSP-100A

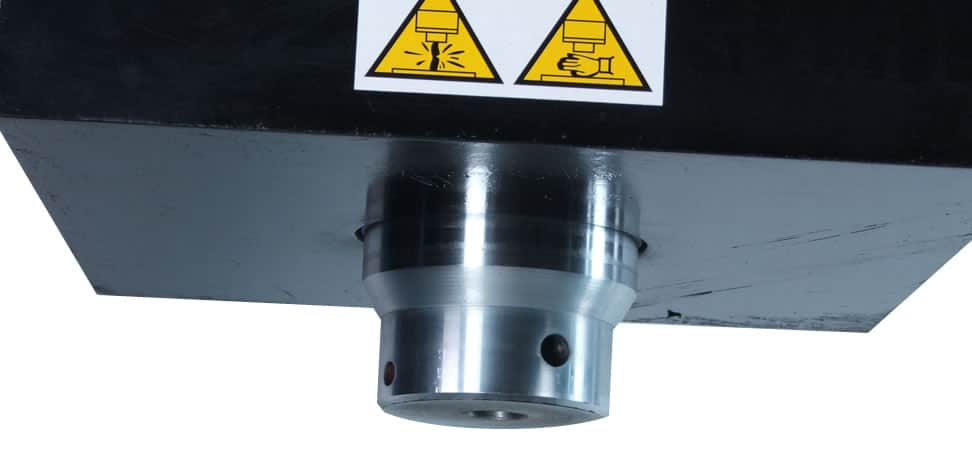

Piston Head Diameter 89 mm
Movable Cylinder Yes
Maximum Capacity 89 ton
Cylinder Stroke 300 mm
Cylinder Diameter 165 mm
Power Pneumatic / Manual
Shipping Weight 775 kgs.
Shipping Dimensions (Inches) 2184 x 1143 x 610 mm
