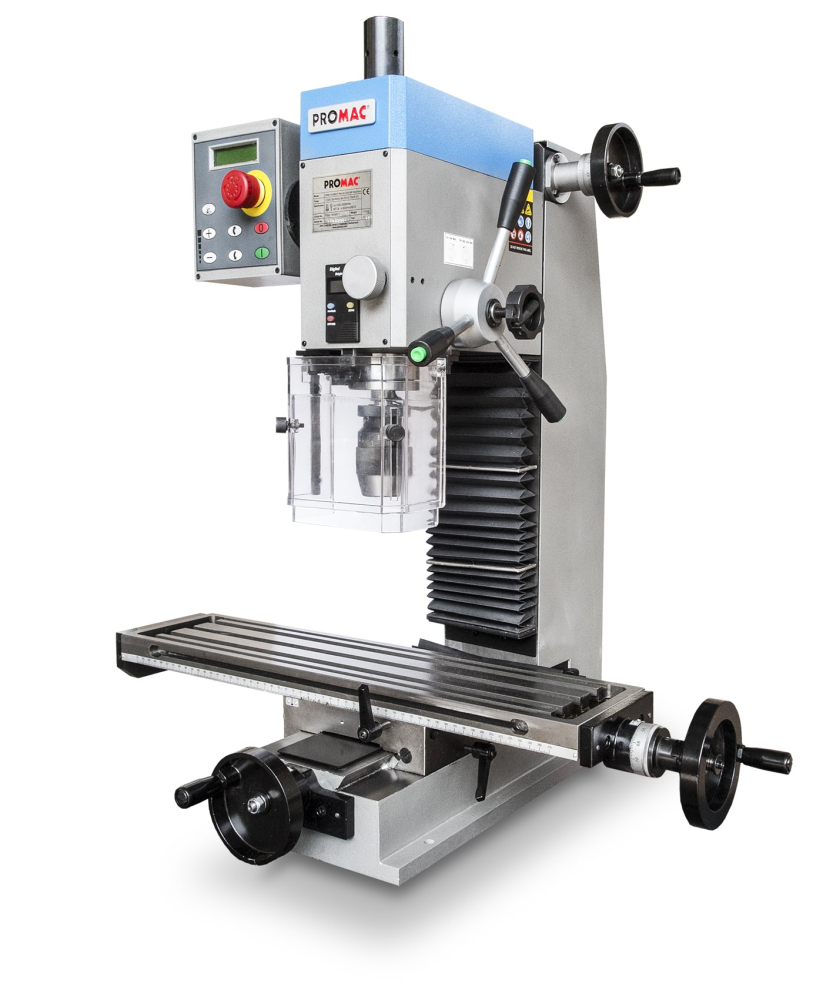

Promac PBM-1839BDV Vertical Mill Drill

Promac PBM-1839BDV Vertical Mill Drill

Stock Code: PBM-1839BDV
MPN: PBM-1839BDV
£2,483.25 (exc VAT) per 1
£2,979.90 (inc VAT)
Quantity: - +

Powerful, smooth, brushless DC motor with variable speed control Digital display of the drilling or milling depth Electronically switchable thread cutting device Variable rotation speed of the spindle Large work table 700×160mm Chuck protection and emergency stop button Solid, vibration-damping cast iron case (GG-20).

  • 230v Single phase 0,75kw motor
  • Cutting capacity for steel 20mm
  • Speed range 100-2,000rpm
  • Table Dimensions 700 x 160mm

Specifications

  • Motor (V/kW) 230/0.75
  • Morse taper MT3
  • Cutting capacity for steel (ø-mm) 20
  • Spindle stroke (mm) 70
  • Max. milling plan/groove cutter (mm) 50/16
  • Speed range (min-1) 100–2’000 variable
  • X axis, longitudinal stroke (mm) 400
  • Y axis, transverse stroke (mm) 190
  • Z axis, vertical stroke (mm) 290
  • Tapping capacity max. M12
  • Spindle taper (mm) 370
  • Throat (mm) 190
  • Table dimensions (mm) 700×160
  • T-Slot width (mm) 12
  • Weight (kg) 110
MPNPBM-1839BDV
BRANDPromac
WEIGHT110kgs
ConditionNew
