Promac JMD_45PFD-T Vertical Mill Drill

Promac JMD_45PFD-T Vertical Mill Drill

Stock Code: JMD_45PFD-T
MPN: JMD_45PFD-T
£6,230.88 (exc VAT) per 1
£7,477.05 (inc VAT)
Quantity: - +

Automatic spindle lowering, Equipped with monitoring function for 3 axes (X, Y, Z) with glass scale, 2 gear motor, CW/CCW rotation of the spindle enables threads to be realized, Automatic downward movement of the spindle, Compound table with parallel T slots (16mm), Tilting head, tiltable by 30° to the right and 90° to the left, With MT2/B16 adapter, M12 draw bar, 1 13-mm auto-clamping chuck, chuck guard and emergency stop switch.

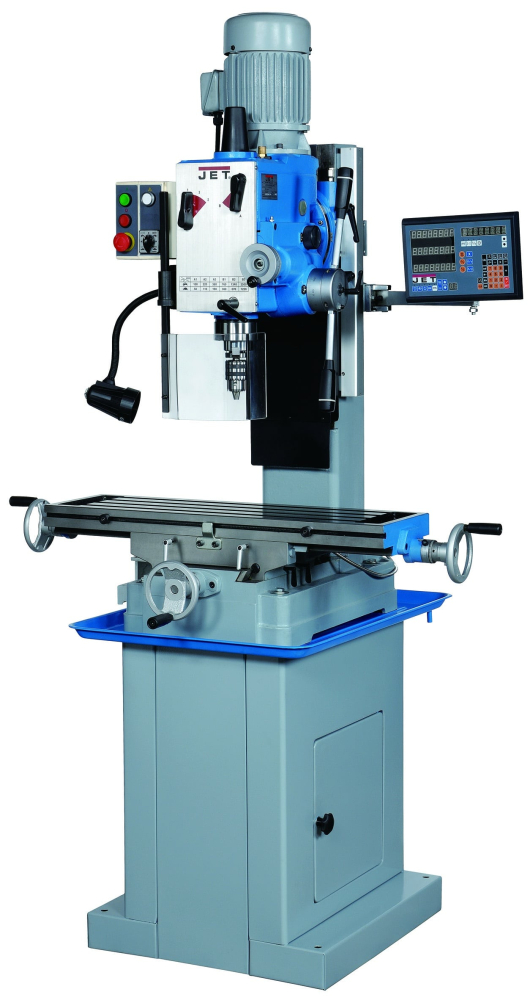

Shown with optional stand – Part Number 350045-G

  • 400v 3 Phase 1,1kw motor
  • Gear driven 12 speed
  • Cutting capacity 32mm in steel
  • Morse taper MT3

Shown with optional stand – 350045-G

Specifications

  • Motor (V/kW) 400/1.1
  • Morse taper MT3
  • Cutting capacity for steel (ø-mm) 32
  • Spindle stroke (mm) 250
  • Max. milling plan/groove cutter (mm) 30/20
  • Gear ranges 12
  • Speed range (min-1) 50–2’500
  • X axis, longitudinal stroke (mm) 520
  • Y axis, transverse stroke (mm) 210
  • Z axis, vertical stroke (mm) 460
  • Tilting head 90° left, 30° right
  • Throat (mm) 250
  • Table dimensions (mm) 240×825
  • T-Slot width (mm) 16
  • Weight (kg) 165
MPNJMD_45PFD-T
BRANDPromac
WEIGHT165kgs
ConditionNew
