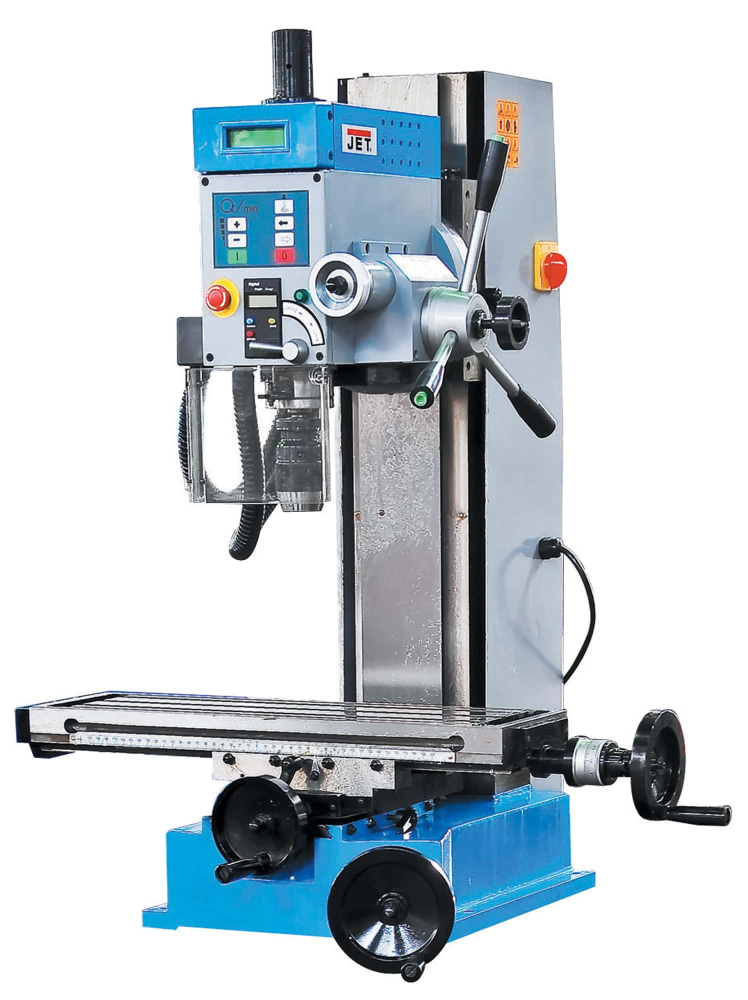

Promac JMD_3-M Vertical Mill Drill

Promac JMD_3-M Vertical Mill Drill

Stock Code: JMD_3-M
MPN: JMD_3-M
£2,730.00 (exc VAT) per 1
£3,276.00 (inc VAT)
Quantity: - +

Electronic variable speed control, Fine adjustment of the drilling spindle with digital depth display, Tilting head, tiltable by 45° to the right/90° to the left, Micrometric spindle lowering, Chuck guard, CCW/CW operation (M12), With adapter 1–13-mm auto-clamping chuck and M12 draw bar, emergency stop switch.

  • Drilling capacity 20mm in steel
  • Variable speed control
  • 230v Single phase motor
  • Morse taper MT3

Specifications

 Motor (V/kW) 230/1.0

  • Morse taper MT3
  • Cutting capacity for steel (ø-mm) 20
  • Spindle stroke (mm) 70
  • Max. milling plan/groove cutter (mm) 50/16
  • Speed range (min-1) 100–1’750 variable
  • X axis longitudinal stroke (mm) 400
  • Y axis transverse stroke (mm) 150
  • Z axis vertical stroke (mm) 300
  • Tapping capacity max. M12
  • Tilting head 90° left 45° right
  • Throat (mm) 230
  • Table dimensions (mm) 550×160
  • T-Slot width (mm) 12
  • Weight (kg) 165
MPNJMD_3-M
BRANDPromac
WEIGHT165kgs
ConditionNew
