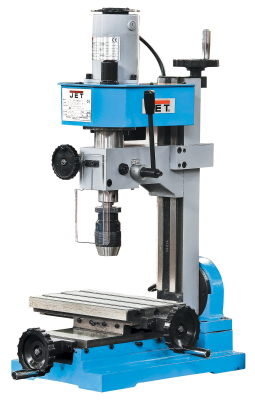

Promac JMD_1-M Vertical Mill Drill

Promac JMD_1-M Vertical Mill Drill

Stock Code: JMD_1-M
MPN: JMD_1-M
£680.75 (exc VAT) per 1
£816.90 (inc VAT)
Quantity: - +

DC motor with variable speed control, Two gear ranges thanks to mechanical gearbox, CCW/CW operation, Vertical column, swiveling angle of 45° to each side, Compound table with 3 parallel T-slots, Micrometric spindle lowering, With adapter, 1 10-mm auto-clamping chuck and M10 draw bar, transparent guard, emergency stop switch.

  • Drilling capacity 10mm in steel
  • Morse taper MT2
  • Spindle stroke 30mm

Specifications

  • Motor (V/kW) 230/0.15
  • Morse taper MT2
  • Cutting capacity for steel (ø-mm) 10
  • Spindle stroke (mm) 30
  • Max. milling plan/groove cutter (mm) 20/10
  • Speed range (min-1) 100–1’000/200–2’000 variable
  • X axis longitudinal stroke (mm) 190
  • Y axis transverse stroke (mm) 100
  • Tilting head 45° right 45° left
  • Throat (mm) 140
  • Table dimensions (mm) 145×240
  • T-Slot width (mm) 8
  • Weight (kg) 40
MPNJMD_1-M
BRANDPromac
WEIGHT40kgs
ConditionNew
