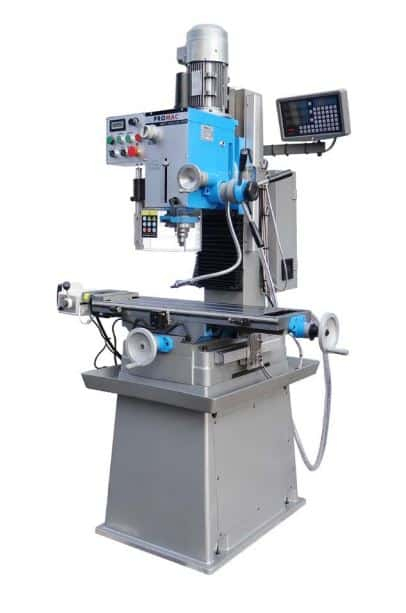

Promac JMDT-804516X-DRO Vertical Mill Drill

Promac JMDT-804516X-DRO Vertical Mill Drill

Stock Code: JMDT-804516X-DRO
MPN: JMDT-804516X-DRO
£5,259.63 (exc VAT) per 1
£6,311.55 (inc VAT)
Quantity: - +

The JMDT series of vertical milling drilling machines are our new products designed and developed by ourselves based on our accumulated experience of many years in this field. It is really a multi-function universal machine with power feed to the X axis which could be widely used for small and middle sized work pieces for drilling, milling, spot facing, reaming, tapping, Milling Plane, slot-milling etc. Besides, some machine tool accessories could also be used on this machine. The machines are suitable for the machining workshop, maintenance workshop and production line etc.

  • Drilling capacity(Iron/Steel) 45/45*mm
  • Milling capacity of face mill 80mm / end mill 32mm
  • Tapping capacity(Iron/Steel) 16/16*mm
  • Table size 240x800mm

Specifications

  • Drilling capacity(Iron/Steel) 45/45*mm
  • Milling capacity of face mill 80mm
  • Milling capacity of end mill 32mm
  • Tapping capacity(Iron/Steel) 16/16*mm
  • (*not for intense operations) 32mm
  • Spindle to column 260mm
  • Distance table to spindle max 460mm
  • Spindle taper MT-4
  • Draw bar M16
  • Spindle travel 120mm
  • Spindle speeds…75-435/435-2500rpm
  • Max travel X-axis 560mm
  • Max travel Y-axis 190mm
  • Table size 240x800mm
  • T-slots…3 14mm
  • Overall (LxWxH) 1280x960x2080mm
  • Net weight 486kg
  • Mains 3~400V, PE, 50Hz
  • Output power 1,5 kW S1
  • Reference current 3.7A
  • Extension cord (H05VV-F): 4Gx1,5²
  • Installation protection 4-6.3A
MPNJMDT-804516X-DRO
BRANDPromac
WEIGHT486kgs
ConditionNew
