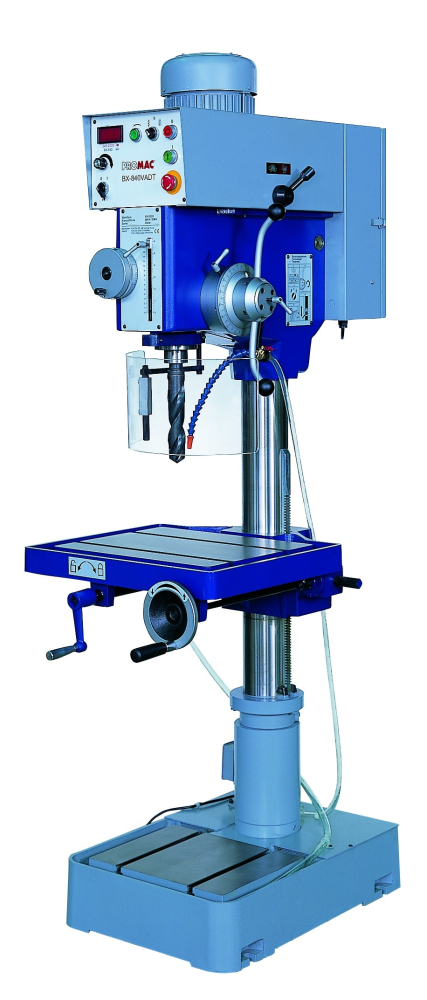

Promac BX_840VADT Drill Press

Promac BX_840VADT Drill Press

Stock Code: BX_840VADT
MPN: BX_840VADT
£6,646.50 (exc VAT) per 1
£7,975.80 (inc VAT)
Quantity: - +

Powerful drill with stepless speed control
2-stage reduction gearbox
Digital speed display
Tapping device with reversal of rotation
Automatic spindle lowering (micrometric, 0.05/0.1/0.2mm)
Automatic 3-stage spindle feed
Independent motor ventilation

Including lubrication system
Switch with start-interlock coil
Belt cover and chip guard with safety switch, transparent guard and emergency stop button
Externally mounted LED machine light

  • Drilling capacity 40mm
  • 400v 3 Phase 1,5kw motor
  • Variable speed control
  • Morse taper MT4

Specifications

  • Motor (V/kW) 400/1.5
  • Morse taper MT4
  • Cutting capacity for steel (ø-mm) 40
  • Spindle stroke (mm) 150
  • Tapping capacity M20
  • Speed range (min-1) 65–2’000 variable
  • Table load (kg) 70
  • T-Slot width (mm) 16
  • Weight (kg) 385
MPNBX_840VADT
BRANDPromac
WEIGHT385kgs
ConditionNew
