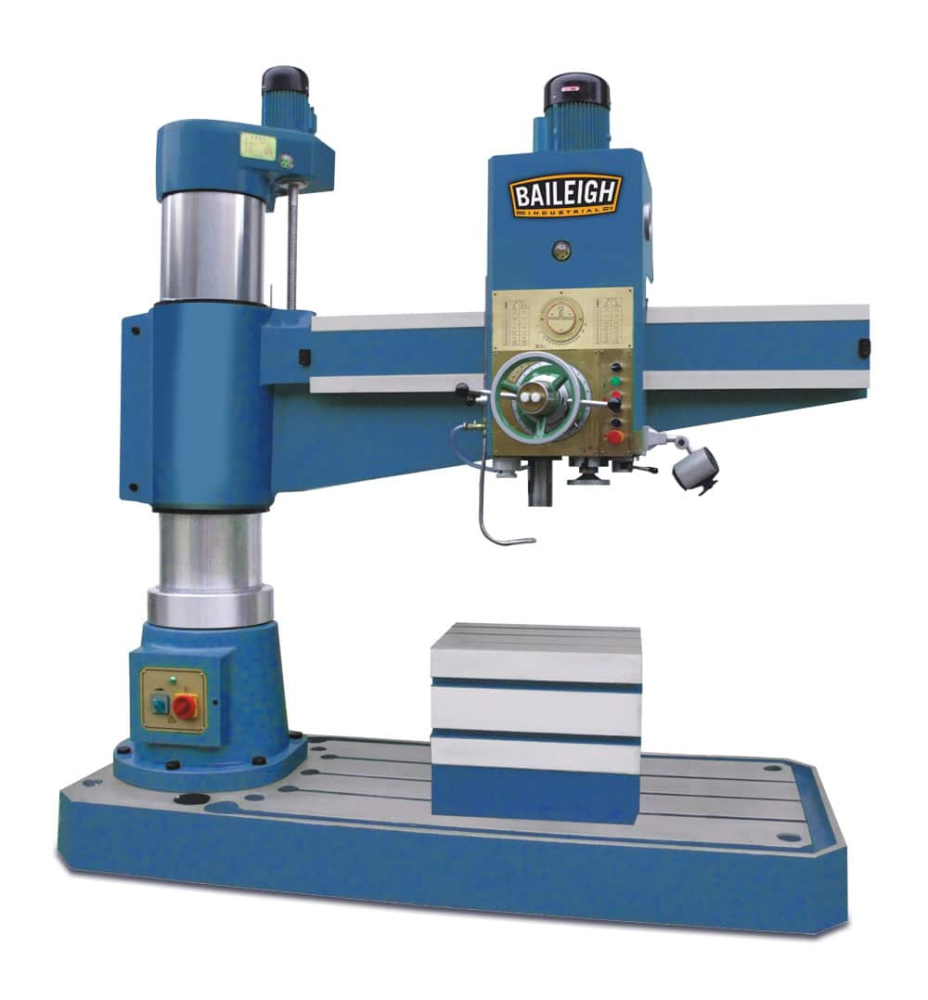

Baileigh RD-1600H Hydraulic Radial Drill

Stock Code: RD-1600H
MPN: RD-1600H

Descriptions

2″ maximum drilling capacity
Heavy-duty construction
Power downfeed
MT5 spindle
Large 63″ column
5.25hp motor
400 volt, three phase
Includes spindle protection cover, quick chuck, tapping chuck, industrial coolant system, worklight, and box-shaped worktable.

50mm (2″) maximum drilling capacity
440V 3-phase power
Variable speeds: 25 to 2000 rpm

Specifications

Item Number RD-1600H
Max. Drill Capacity 2″
Distance from Spindle to Column Center 13.7″ to 63″
Diameter of Column 13.7″
Spindle Taper MT5
Spindle Travel 12.4″
Spindle Speed Range 25 to 2000 rpm
Range of Spindle Feeds .001″ to .125″
Spindle Feeds 16
Distance Between Spindle Nose and Base 12.6″ to 48″
Table Size 24.8″ x 19.6″ x 19.6″
Base Size 94.4″ x 39.3″ x 7.8
Overall Size 98″ x 40″ – 96″ x 103″ – 112″ (accounting for beam movements)
Motor 5.25 hp
Power 220V 3-phase
Shipping Weight 9,460 lbs.
Shipping Dimensions 102″ x 44″ x 100″
