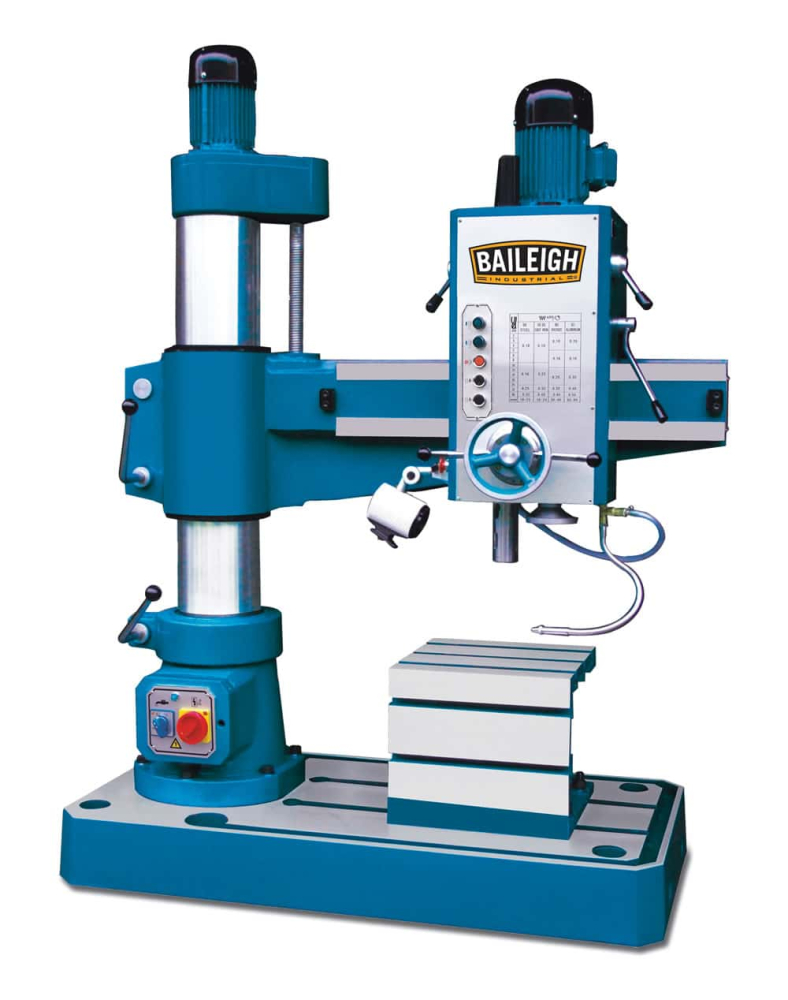

Baileigh RD-1000M Radial Drill

Baileigh RD-1000M Radial Drill

Stock Code: RD-1000M
MPN: RD-1000M
£8,823.50 (exc VAT) per 1
£10,588.20 (inc VAT)
Quantity: - +

1.57″ maximum drilling capacity
Heavy-duty construction
Power downfeed
MT4 spindle
39.3″ reach
9.4″ column
Box-shape worktable

  • 40mm (1.57″) maximum drilling capacity
  • Heavy-duty construction
  • Power downfeed
  • MT4 spindle

Specifications

Item Number RD-1000M
Max. Drill Capacity 1.57″
Distance from Spindle to Column Center 7.8″ to 39.3″
Diameter of Column 9.4″
Spindle Taper MT4
Spindle Travel 9.8″
Spindle Speed Range 71 to 1800 rpm
Range of Spindle Feeds .005″ to .02″
Spindle Feeds 4
Distance Between Spindle Nose and Base 10.3″ to 41.8″
Table Size 15.7″ x 17.7″ x 15.7″
Base Size 29″ x 20″
Overall Size 68″ x 29.5″ x 93″
Motor 4 hp
Power 400V 3-phase
Shipping Weight 3,740 lbs.
Shipping Dimensions (Inches) 74″ x 39″ x 87″


MPNRD-1000M
BRANDBaileigh
WEIGHT1160kgs
ConditionNew
