Stock Code: DP-0625E
MPN: DP-0625E
£1,212.75 (exc VAT) per 1
£1,455.30 (inc VAT)
Quantity: - +

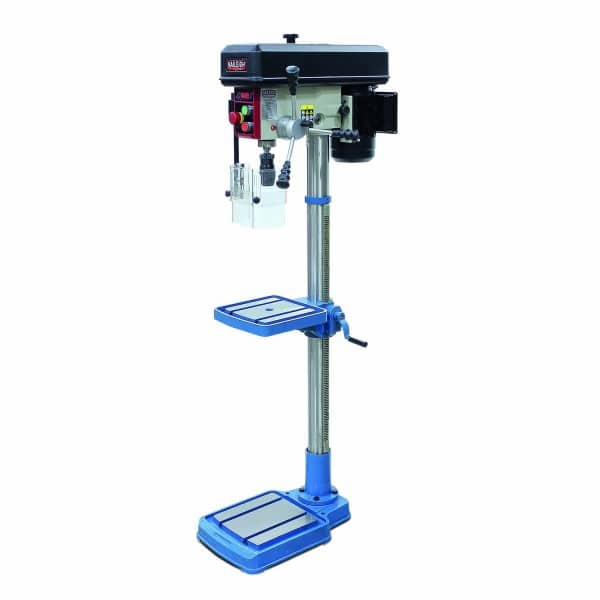

This economical belt driven drill press runs smoothly even at full capacity – this 14″ drill press lets you run tooling at the proper speed to fit your application with its 5 speed pulley configuration which helps extend tooling life.

.5 hp motor requires 220 volt power and will work at any shop or site.
Belt driven head drills a maximum capacity of 5/8 steel.
5 speeds in the range from 250 to 2900 rpm to suit your application.
2-7/8″ steel column eliminates flexing even when drilling at full capacity.
Rigid cast iron base and table add strength to the drill's structure.
Includes a safety shield around the drill head to protect you.

  • Belt-driven drill press
  • 16mm steel maximum capacity
  • 5 speeds: 250 to 2900 rpm

Specifications

Item Number DP-0625E
Country of Manufacture Taiwan
Spindle Speeds 5
Swing 14″
Diameter of Column 2-7/8″

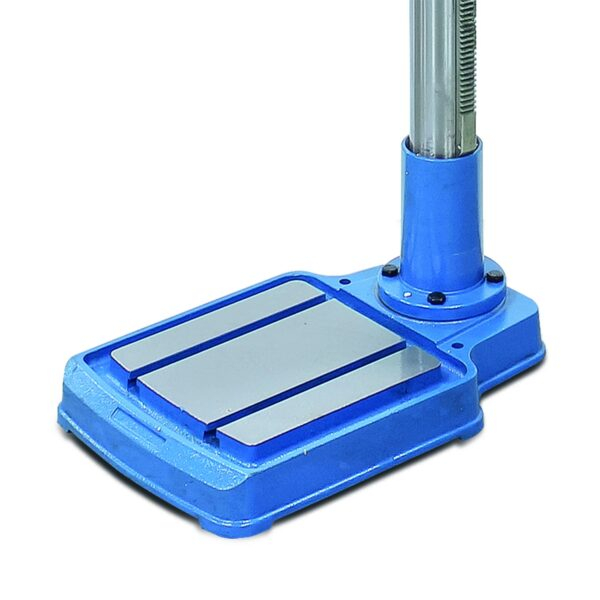

Base Size 25-3/4″ x 16-1/2″

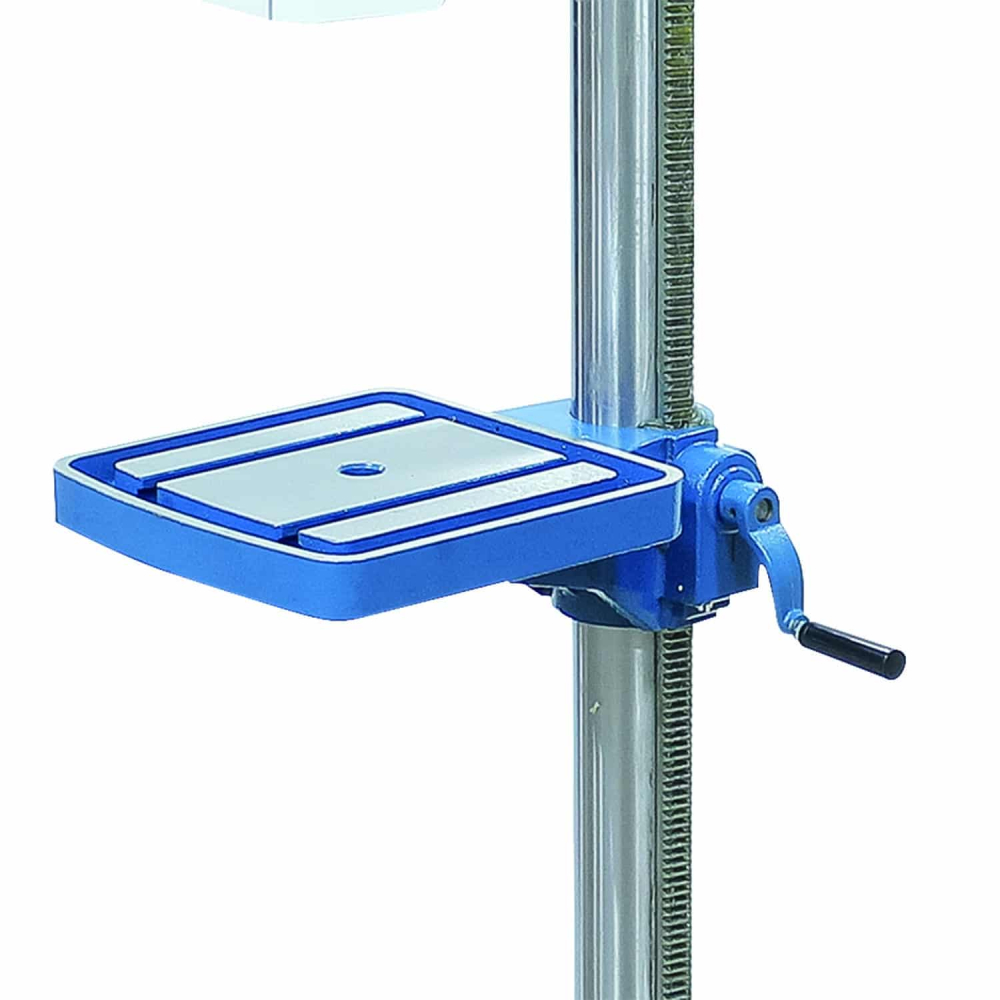

Table Size 11″ x 11″
Quill Diameter 1-3/4″
Spindle Nose to Table 6″ Min to 36″ Max
Spindle Nose to Base 48″
Spindle Taper MT 3
Table Angle Adj 360°
Main Motor 1/2 hp
Rpm 250, 700, 1150, 1900, & 2900
Drill Capacity Steel 5/8″
Power 220V Single Phase
Shipping Weight 230 lbs.

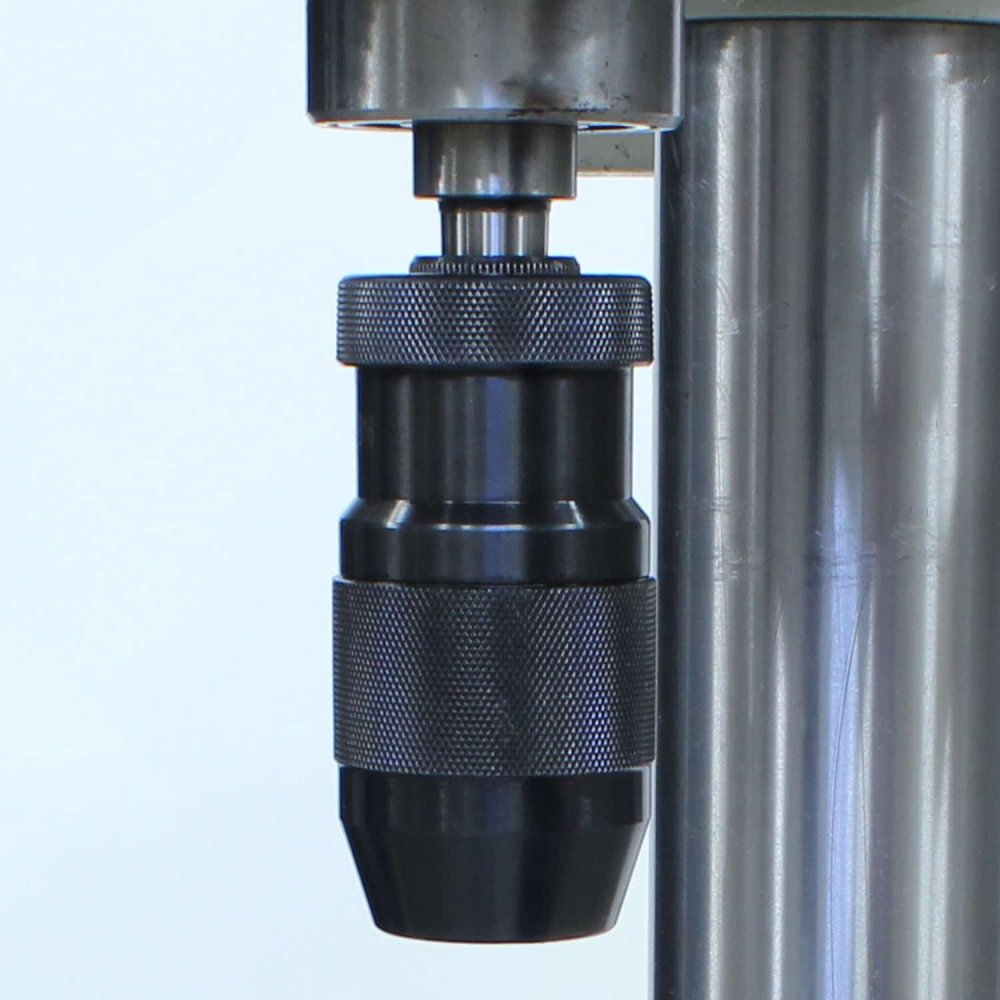

Special Notes Includes B-16 1-16mm Keyless Chuck
Column Diameter 3.62″
Shipping Dimensions (Inches) 60″ x 26″ x 17″

MPNDP-0625E
BRANDBaileigh
WEIGHT104kgs
ConditionNew
