Baileigh BR-18M-24 Bead Roller

Stock Code: BR-18M-24
MPN: BR-18M-24

Descriptions

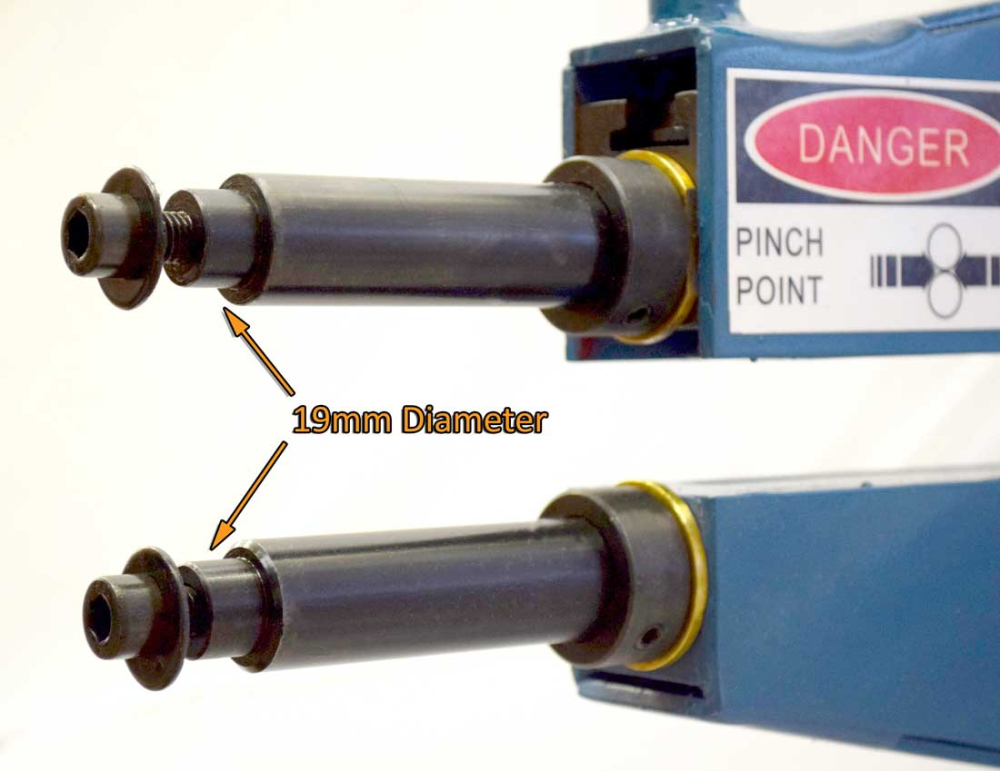

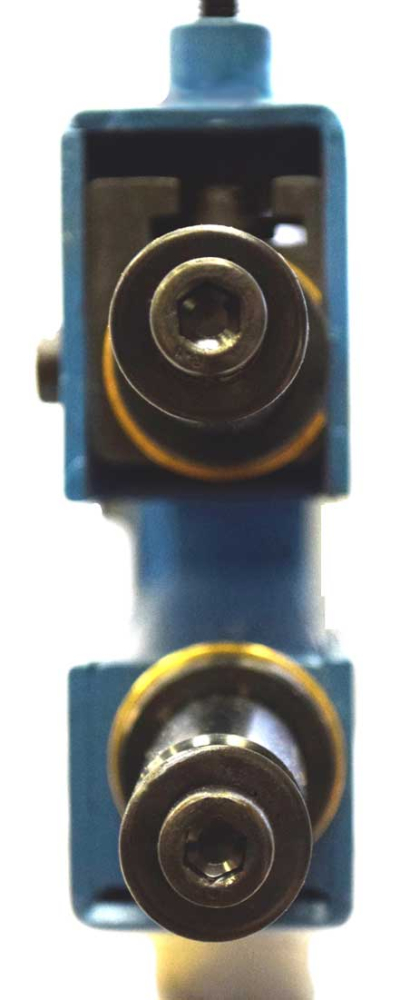

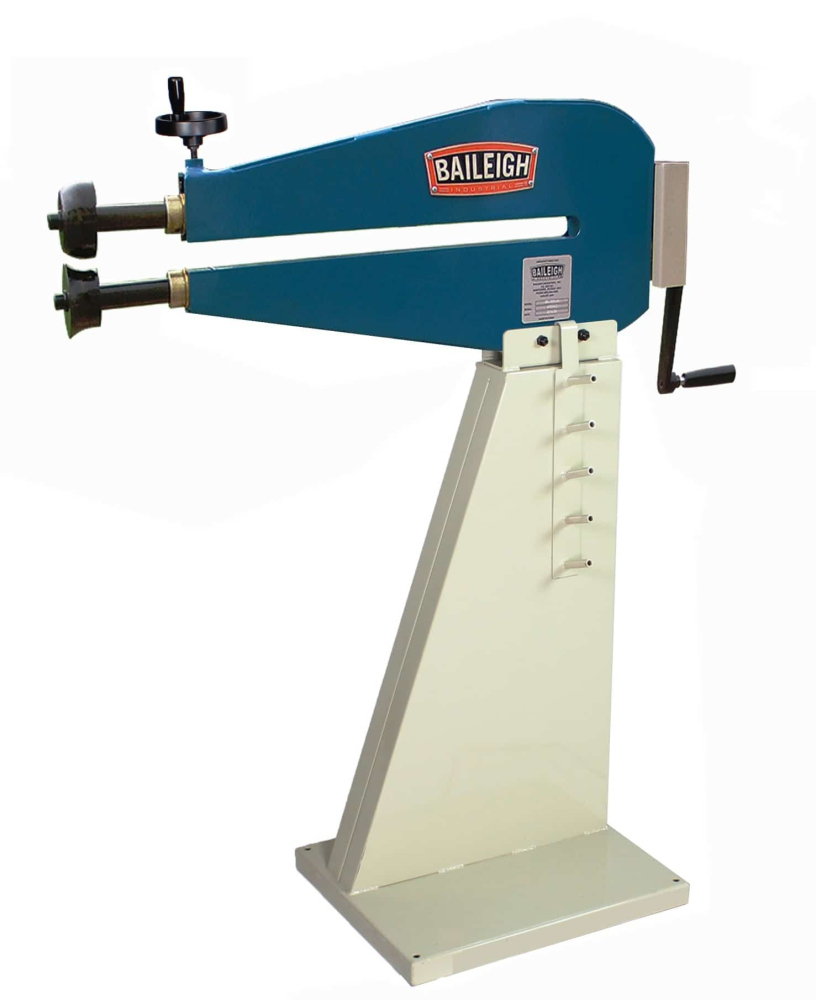

Baileigh Industrial’s line of bead rollers now has something for everyone. The BR-18M-24 bead roller is a manually operated bead roller based off of their popular BR-18E-24. This bead roller is made from of a heavy steel framework that is electro welded for further rigidity. It has a 610mm throat depth for almost any application, but is compact enough to make even the most demanding beading patterns. The BR-18M-24 manual bead roller has a capacity of 1.2mm mild steel and 16 gauge aluminum. The bead depth is adjustable via the top roll. Baileigh offers many sets of tooling for the BR-18M-24 bead roller and the shaft diameter is 19mm and will fit most commercially available roll sets. All moving parts on the BR-18M-24 bead roller have bronze bushings for long life. Like most Baileigh bead rollers, the BR-18M-24 comes standard with a depth stop for perfectly straight beads, and a heavily constructed floor stand that includes a die rack. This bead roll is built to last.

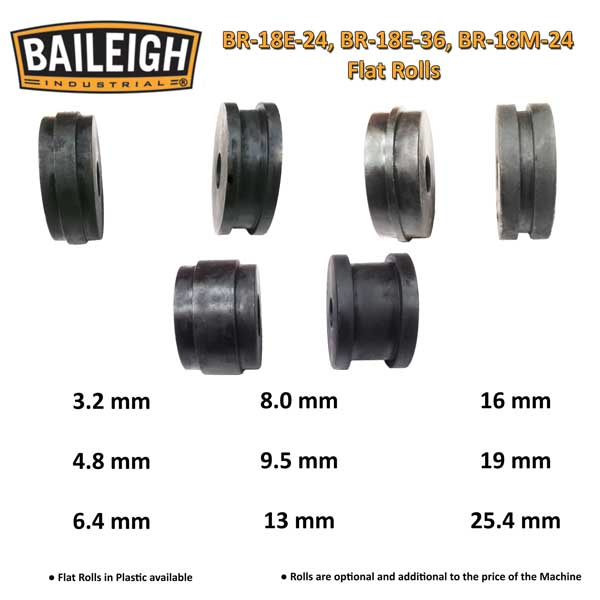

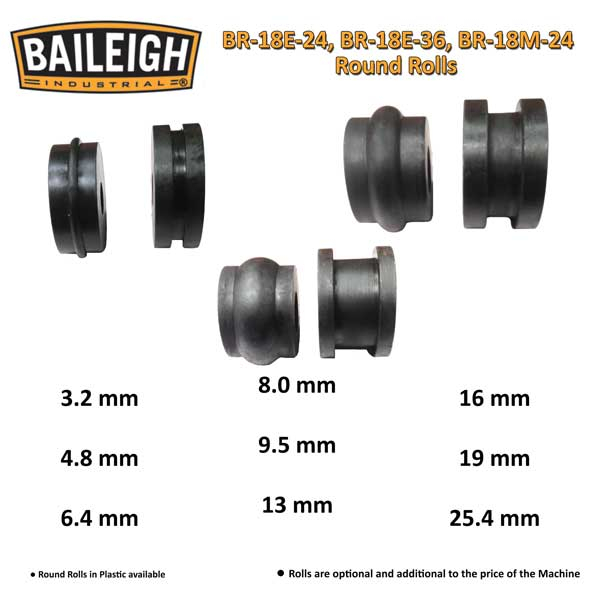

THERE is 1 SET of SPOILER ROLLS that come with this machine. Any other rolls are OPTIONAL and EXTRA to the cost of the machine.

1.25mm mild steel capacity
610mm throat depth
Manual operation
Stand and depth stop included

Specifications

Item Number BR-18M-24
Throat Depth 610 mm
Capacity (Mild Steel) 18 ga.
Adjustable Depth Stop Included
Shipping Weight 50 kgs.
Shipping Dimensions (Inches) 914 x 457 x 203 mm
