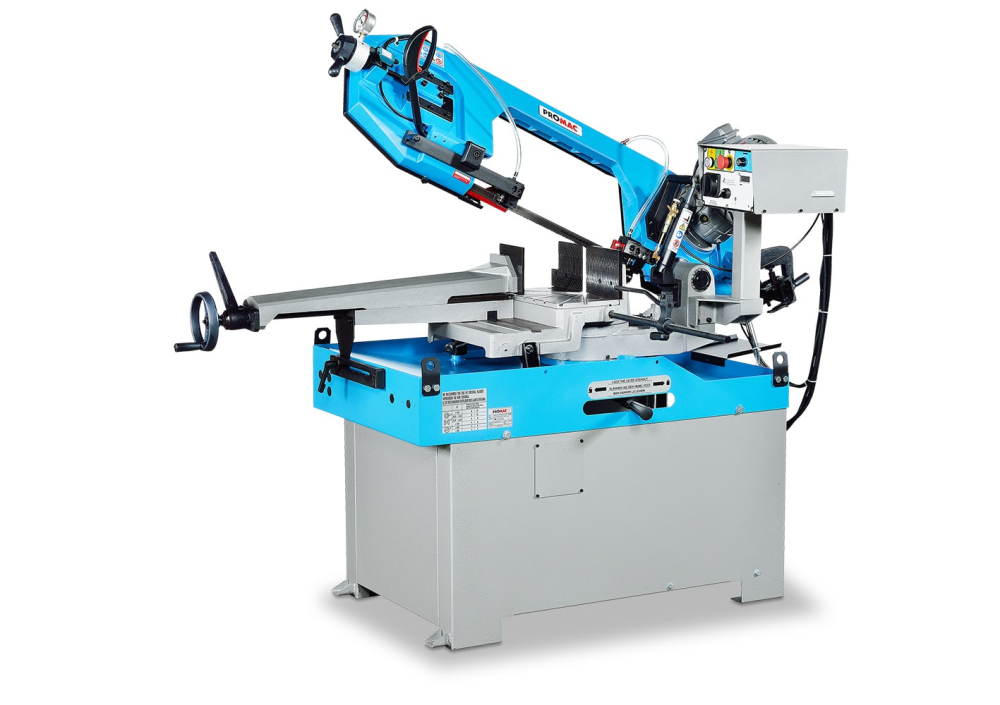

Promac SX_827DGVI Manual Bandsaw

Promac SX_827DGVI Manual Bandsaw

Stock Code: SX_827DGVI
MPN: SX_827DGVI
£6,861.75 (exc VAT) per 1
£8,234.10 (inc VAT)
Quantity: - +

Electronic variable speed control through frequency control, With thermal protection against overload and emergency stop button, Right-hand and left-hand cut by means of bow rotation, Manual or servo-assisted lowering of the saw bow, Quick-clamping vise, Including lubrication system, Blade guides with rolling contact bearings, Blade tension gauge with immediate stop in case of blade breakage, Supplied with sawing band and pedestal.

  • 270mm Round capacity
  • Dual-mitre upto 60° right and 45° left
  • Variable speed control
  • Hydraulic controlled descent

Specifications

  • 270mm Round capacity at 90°
  • 260mm Square capacity at 90°
  • 350 x 220 Rectangle capacity at 90°
  • Motor (V/kW) 400/1.5
  • Blade speed (m/min-1) 20–85
  • Blade dimension (mm) 3’160×27×0.9
  • Tilting head, tiltable by 60° right, 45° left
  • Vise opening (mm) 355
  • Working height (mm) 900
  • Dimensions (mm) 749×1’880×1’715
  • Weight (kg) 360
MPNSX_827DGVI
BRANDPromac
WEIGHT360kgs
ConditionNew
