CK 3 Series Complete Front End Gas Saver Kit - Standard, Pyrex Cup 4.0mm

Stock Code: WTCKD3GS532-P
MPN: D3GS532-P

Descriptions

CK Worldwide's Gas Saver™ front-end kit allows users to save up to 40% of shield gas consumption while providing better shield gas coverage patterns. With better shielding gas coverage patterns the welder can extend the tungsten up to 6 x the diameter of the electrode beyond the edge of the gas cup (This is achieved in draft-free areas using argon gas).

Alumina push-on or Pyrex high-temperature glass cups are available. Alumina cups are durable, impact-resistant and handle high-temperature welding applications. Pyrex glass cups are used in applications where visibility is an issue such as inside corners, inside pipe, around tubing, etc.

The Gas Saver kits will retrofit 3 series (CK17, CK18, CK26) torches or competitive brand equivalents using a replaceable white Teflon heat shield on a silicon rubber torch body.

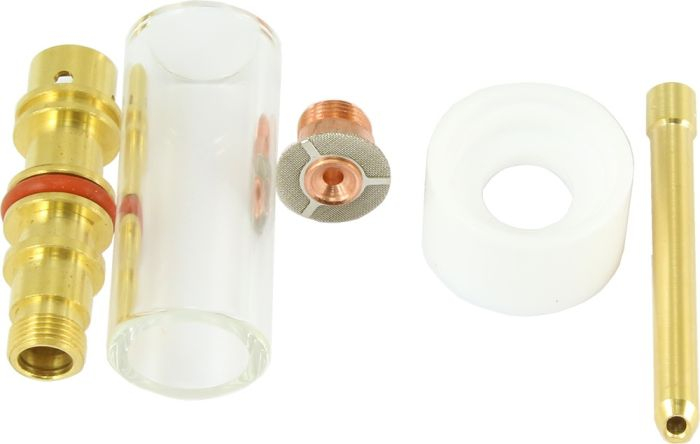

Part Description Quantity

2P8GS CK #8 Pyrex Cup - 3 Series Gas Saver, 12.7mm 1

bore x 32.6mm length

4C532GS CK Stubby Wedge Collet - 3 Series Gas Saver, 4.0mm 1

3HSGS CK Standard Heatshield - 3 Series Gas Saver 1

3CBGS CK Standard Collet Body - 3 Series Gas Saver, One Size Fits All 1

TAS532GS CK Tungsten Adaptor /w Screen - 3 Series Gas Saver, 4.0mm 1
