Jasic TIG 300P DC Inverter Package
Jasic TIG 300P DC Inverter Package

Jasic TIG 300P DC Inverter Package

Stock Code: WPTZXJT-300P
MPN: ZXJT-300P
£1,435.00 (exc VAT) per 1
£1,722.00 (inc VAT)
Quantity: - +

Jasic TIG 300P DC Inverter Package

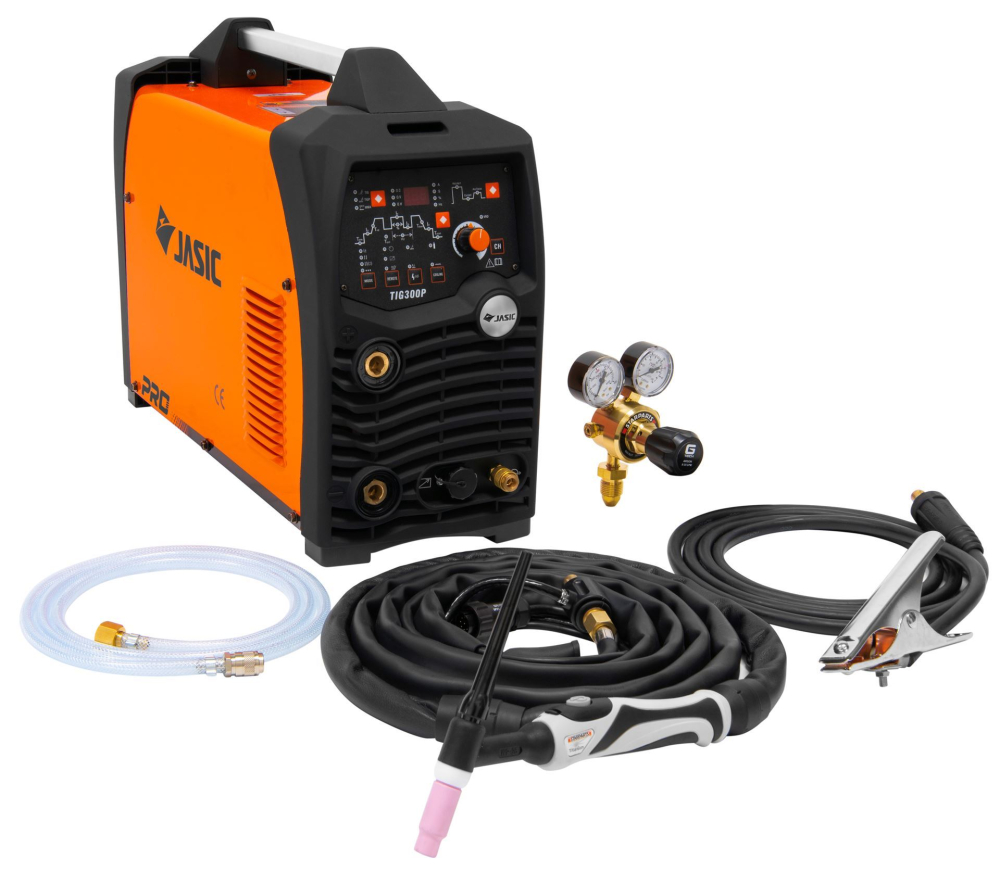

Inverter power source, TIG torch & adaptor, Gas regulator, Work return lead and clamp, Operating instructions

The Jasic TIG 300 DC Pulse inverter is equipped with industrial grade components and microprocessor control for high accuracy and performance.

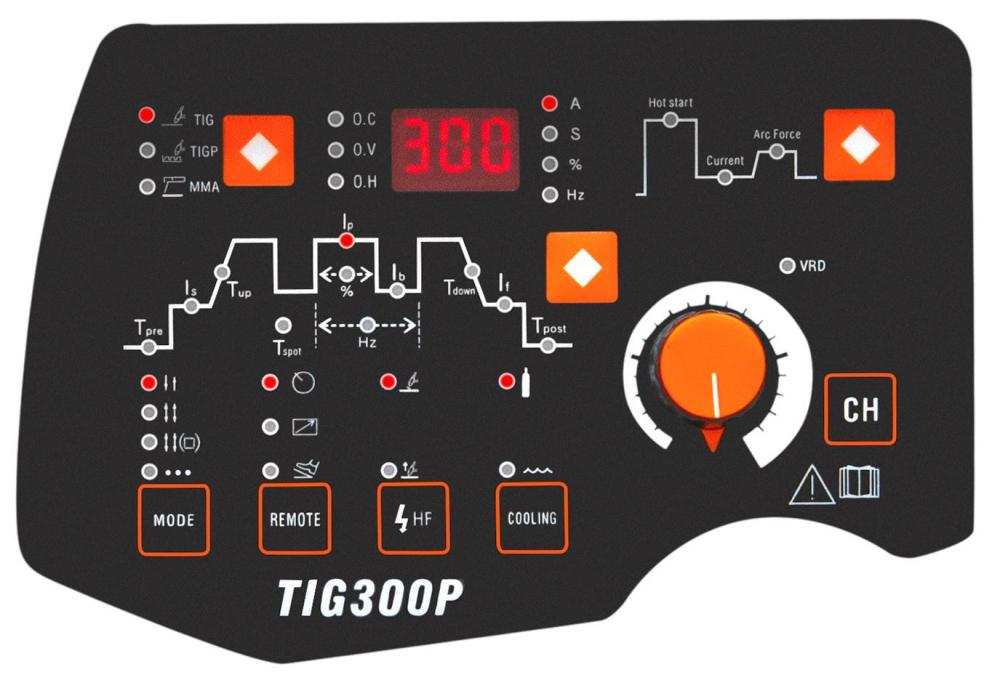

This technologically advanced inverter with a digital control panel allows for feature rich options and provides 8 channel automatic storage of the welding parameters.

This modular design TIG welding system can be assembled with an optional trolley and water cooler where required.

Key Features

• TIG DC Pulse with digital control

• Program memory storage

• Microprocessor control of a wide range of functions

• HF and lift TIG

• Remote control interface

• VRD function

• Digital display

• Intelligent fan and cooler control

• Excellent welding characteristics

• Protection system to enhance equipment life

• S Suitable for welding in an environment

with increased risk of electric shock

• Water cooled option

• Generator friendly**

Technical Data

Input Voltage AC 400V +/-15% - 50/60 Hz

Ieff (A) 9.9

Input Power (kVA) 11

Current Range (A) TIG 5 - 300 MMA 20 - 210

Duty Cycle @ 40°C TIG 300A @ 20% MMA 210A @ 50%

No-Load Voltage (V) 60 (11.8V - VRD)

Efficiency (%) 85

Protection/Insulation Class IP23S/F

Dimensions (LxWxH mm) 566 x 224 x 405

Weight (Kg) 19.4

MPNZXJT-300P
BRANDJASIC
WEIGHT19.4kg
ConditionNew
