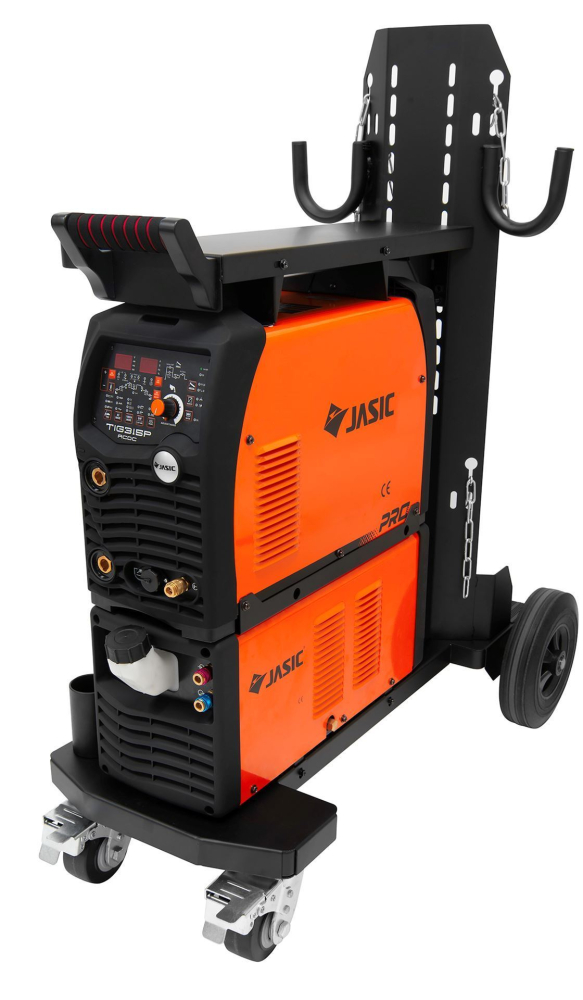

Jasic TIG 315D AC/DC Multi Wave Pulse Inverter Package

Stock Code: WPJT315MWDWC
MPN: ZXJT-315MWD-WC

Jasic TIG 315P AC/DC Multi Wave Digital Inverter Water Cooled

Key Features

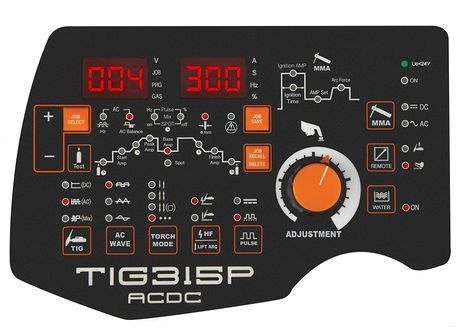

• TIG AC/DC with digital control

• program memory storage up to 50 sets of data

• Microprocessor control of a wide range of functions

• Square, Triangular, Sine, Mixed Wave

• Multi wave options on AC

• Variable AC frequency

• Remote control interface

• VRD function

• Intelligent fan and cooler control

• Excellent welding characteristics

Package Includes

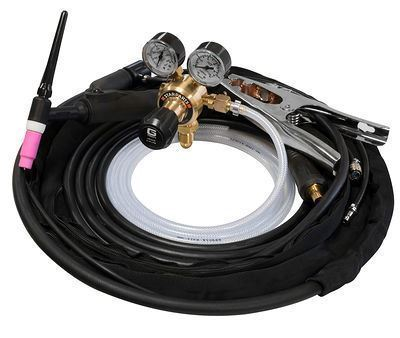

Inverter power source, TIG torch & adaptor, Gas regulator, Work return lead and clamp, Operating instructions

Technical Data

Input Voltage AC 400V +/-15% - 50/60 Hz

Ieff (A) TIG 10 MMA 12.4

Input Power (kVA) 14

Current Range (A) TIG 10 - 315 MMA 10 - 270

Duty Cycle @ 40°C TIG 315A @ 30% MMA 270A @ 30%

No-Load Voltage (V) 73 (12.4V - VRD)

Efficiency (%) 85

Protection/Insulation Class IP21S/F

Dimensions (LxWxH mm) 566 x 224 x 405

Weight (Kg) 25.5
