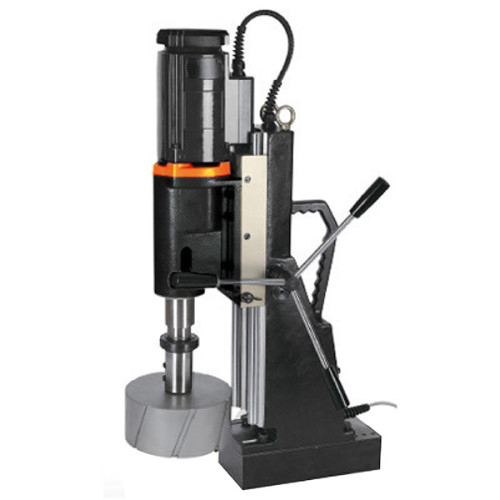

HMT V200T Magnet Drill 230V

Stock Code: HMT803096-230
MPN: 803096-230
EAN / GTIN: 5060940351124

Descriptions

The HMT MAX200T offers the world's largest capacity for portable drilling, tapping and countersinking. Designed for heavy duty, industrial application, it tackles the most challenging metalworking tasks with its 2850W, high torque, variable speed, reversible motor.

Features & Benefits:

• 4 speed gearbox for low speed, high torque applications • Lifting eyes for safe positioning of the unit • Morse Taper 5 spindle with XL Weldon Arbor supplied in kit • Emergency stop function and safety guard included

Specification:

CUTTER SIZE RANGE - 12-200mm MAX CUTTER LENGTH - 200mm MAX TWIST DRILL - 56mm TAPPING RANGE - M52 COUNTERSINKING - 110mm REAMING - 56mm LENGTH - 455mm WIDTH INC HANDLES - 280mm HEIGHT - 730 - 955mm STROKE - 330mm WEIGHT - 52kg MAGNET SIZE - 295 x 140 x 70mm MAGNETIC FORCE - 2700kg POWER CONSUMPTION - 2850w SPEED RPM (No Load) - 40-60 // 90-130 // 170-240 // 380-545 SPINDLE - MT5 ARBOR - 31.75mm (1-1/4") Weldon COOLANT SYSTEM - Included WARRANTY - 1Yr
