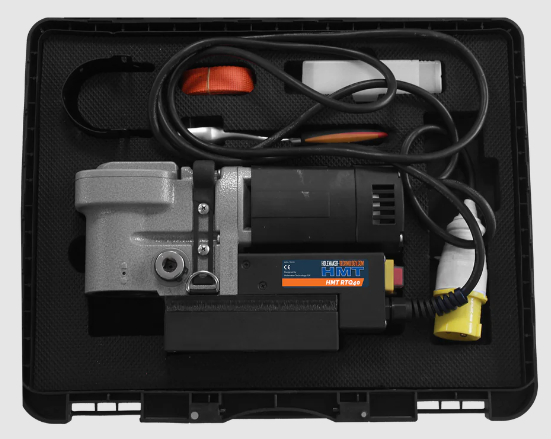

HMT RTQ40 Low Profile Magnet Drill 110V

Stock Code: HMT803084-110
MPN: 803084-110
EAN / GTIN: 5060451523454

Descriptions

The new HMT RTQ40 is a low profile Magnet drill for tight access applications, being designed to fit into any space greater than 180mm. Suitable for use with any standard broaching cutters while optimised to work with the high-performance CarbideMax 40 cutters. • Ratchet drive can be mounted on either side of the machine. • Powerful motor and magnet gives excellent stability. • Quick-change 19.05mm 3/4" arbor for all standard broaching cutters.

Features:

Fits into spaces 180mm or greater
Quick release weldon arbor for keyless use
Ratchet handle can be used on both sides of machine

CUTTER SIZE RANGE- 12-40mm MAX CUTTER CAPACITY - 40mm TWIST DRILL CAPACITY- 13mm LENGTH- 310mm WIDTH- 135mm HEIGHT- 180mm STROKE- 40mm WEIGHT- 10.8 Kg MAGNET SIZE- 160x80x37mm MAGNETIC FORCE- 1200 Kg MOTOR POWER- 1050 W SPEED/s (RPM)- 700 RPM ARBOR- 19.05mm (3/4”) Weldon TAKES CHUCK- No COOLANT SYSTEM- Gravity Oil Fed.
