Magbeast Premium PRO-152T 110V

Stock Code: PTJEIPRO152T110
MPN: DRILL-PRO152T/1

Descriptions

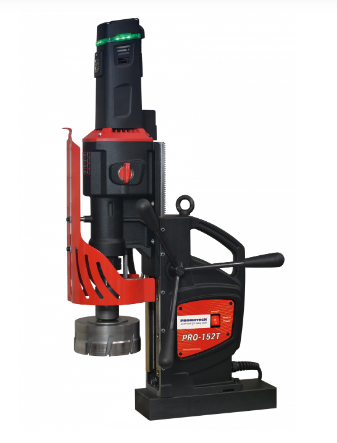

HEAVY DUTY TAPPING AND DRILLING MACHINE

The PRO-152T drilling machine is designed for large hole making and very big tapping applications. Powerful 2300 W variable speed motor enables cutter capacity up to 150 mm (6”) and twist drill capacity up to 47 mm (1-7/8”).

2300 W powerful motor with heavy duty 4-speed gearbox
Intelligent speed control system maintains stable speed

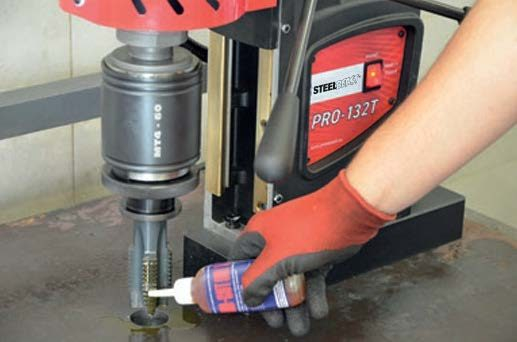

Tapping of through and blind holes

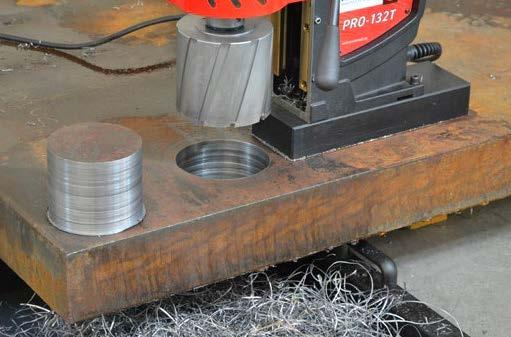

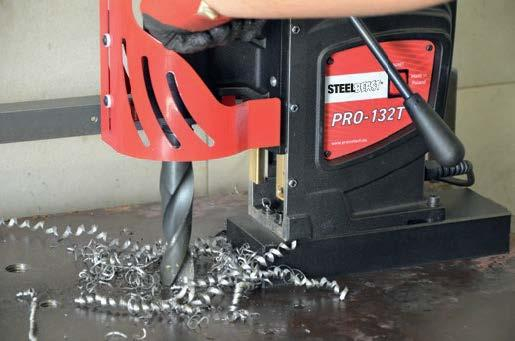

Drilling with TCT or HSS annular cutters
Electronic speed control
Electronic clutch
Rigid design ex tends tool life
Tilt sensor stops the motor in cases of machines break away
360 degree visual monitoring system
Innovative smart magnet with reduced weight
Intuitive control panel at top of the drill
Large coolant container

Four speed gearbox with continuous speed adjustment allows to set the optimal speed depending on diameter, steel grade or tool quality. Intelligent speed control system maintains constant motor speed regardless of changing loads. Innovative 360-degree LED indicator facilitates proper machine operation and increases work safety.

SPECIFICATIONS

Motor Speeds (under load) 55-85 rpm (gear 1) / 100-150 rpm (gear 2) /200-300 (gear 3) / 350-520 rpm (gear 4)

Motor Power 2300 W

Weight 31 kg (68 lbs)

Max cutter capacity 150 mm (6")*

Max twist drill capacity 47 mm (1-7/8")

Max tapping size M42 (1-5/8")

Stroke 260 mm (10")

Max depth of cut 100 mm (4")

Voltage1 ~ 220-240 V, 50-60 Hz / 1~ 110-120 V, 50-60 Hz

Magnetic clamping force 2550 kG (25,000 N)

Magnetic Base Dimensions 105 mm x 315 mm x 50 mm | 4-1/8" 12-3/8" x 2"
