MagBeast Ultra Low Profile 220V

Stock Code: PTJMULP220
MPN: DRILL-ULP35/2

Descriptions

The world's lowest height compact drilling machine designed to fit into the most height restrictive areas, only 150mm working height.

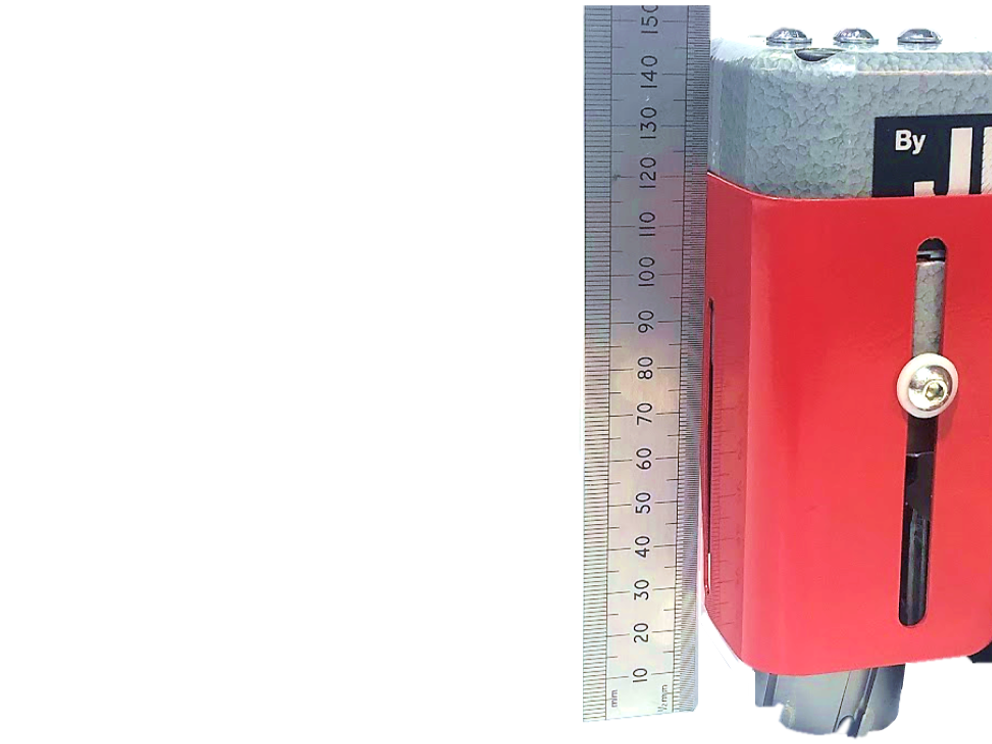

Ultra low design to fit into the most height restrictive areas – only 150mm high.
Capacity – will handle up to 35mm diameter holes through 35mm plate.

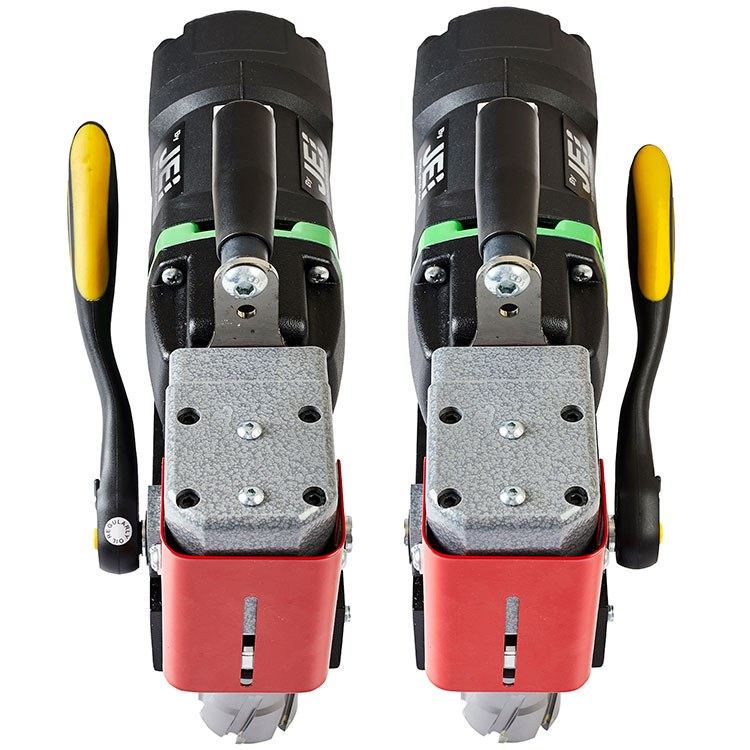

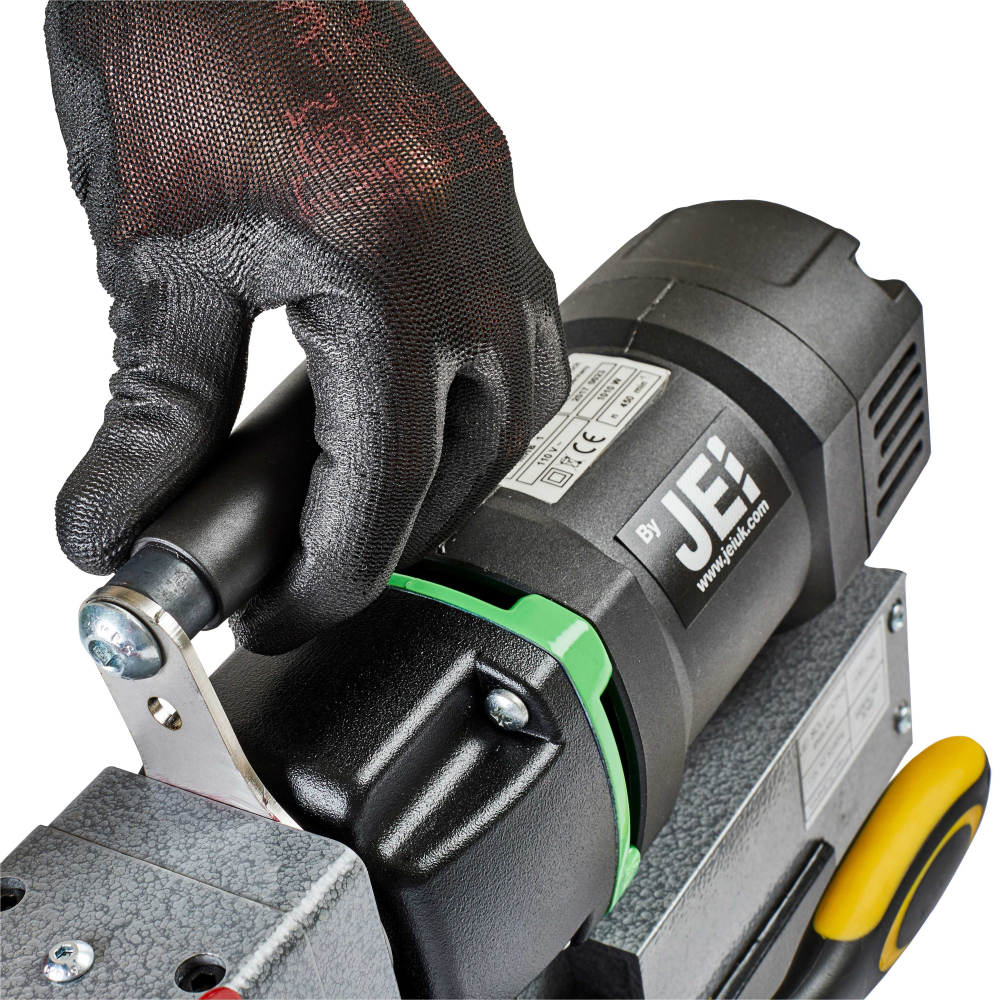

Convenient ratchet handle can be used in either a left or right hand position.
Maintenance free – no adjustable slides, no exposed motor cord.
Ideal for bridge maintenance work & repairs, platform drilling, steel construction.

The Ultra Low Profile is designed to fit into the most height restrictive areas at only 150mm high. Small in stature but not in power, this drill will handle up to 35mm diameter holes through 35mm plates.

SPECIFICATIONS

Model Ultra Low Profile

Spindle 19mm

Weight 9kg

Max Stroke 40mm

Cutter Capacity 35mm Ø x 35mm depth of cut

Countersink Capacity 30mm

Motor 1100 W

RPM 1 Fixed Speed no load 500 RPM loaded 290 RPM

Height 150mm

Length x Width 320 x 120mm

Magnetic Base L x W 184 x 85mm
