JEI MagBeast LP45 220V

Stock Code: PTJLP45220
MPN: DRILL-LP45/2

Descriptions

Designed to fit into the most height restrictive areas

Compact design – only 180mm high.

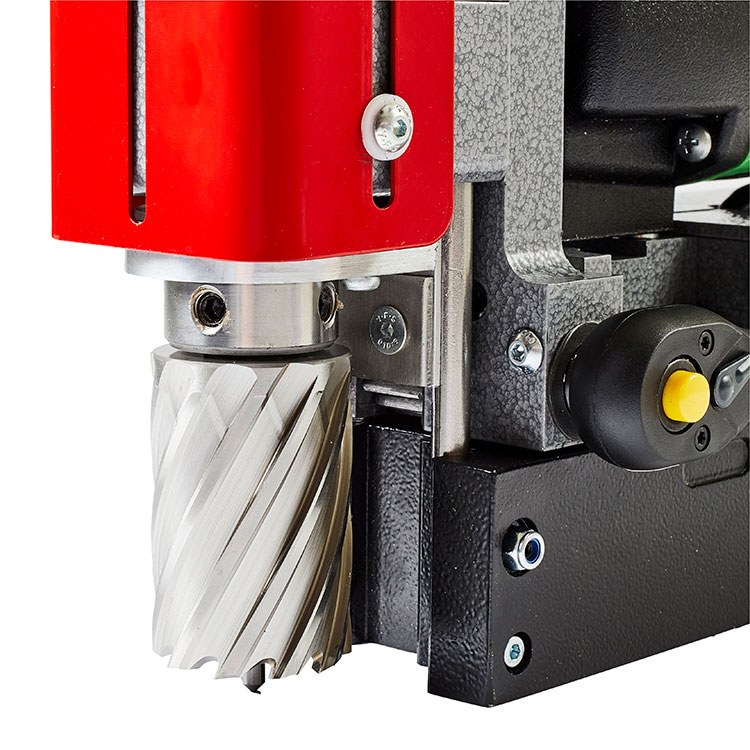

Big capacity – will handle up to 45 mm diameter holes through 50mm plate.

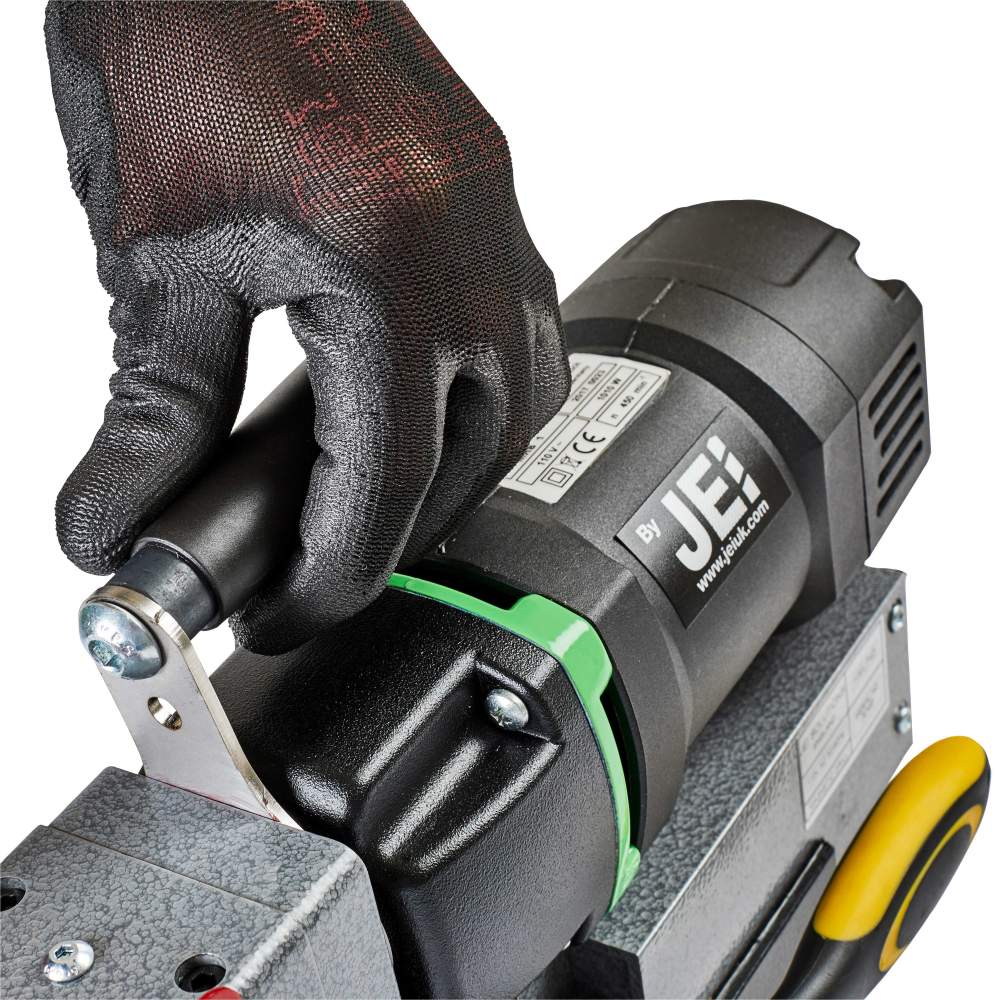

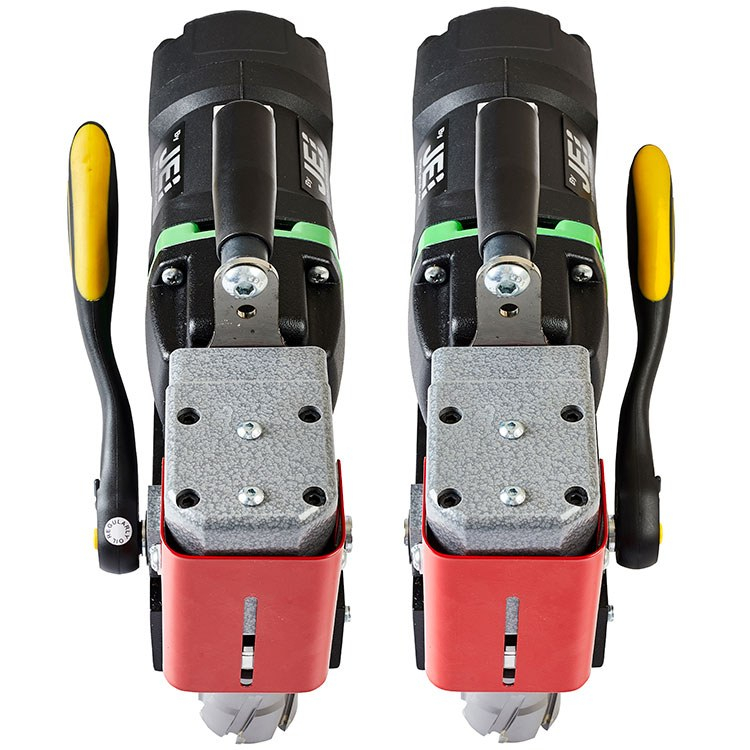

Convenient ratchet handle can be used in either a left or right hand position.

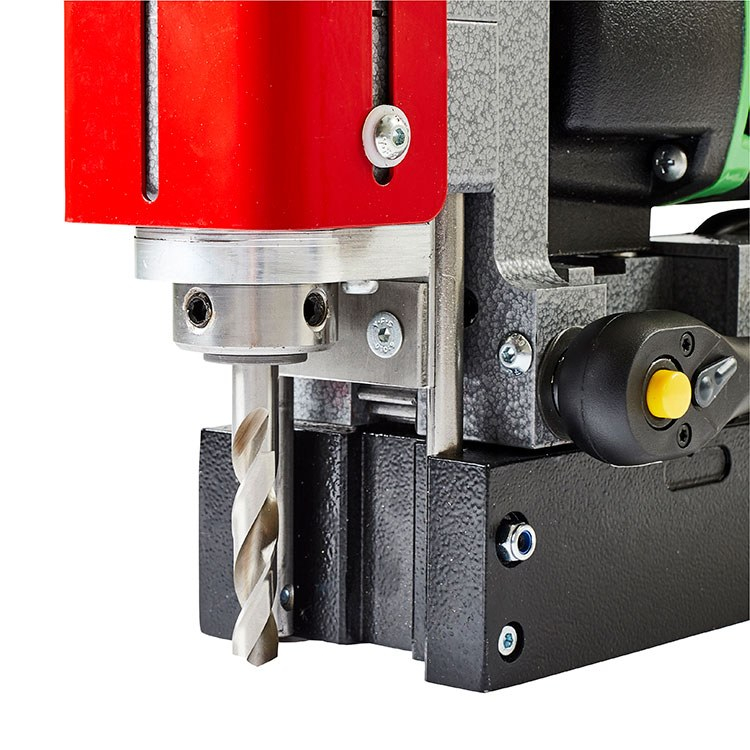

12mm twist drill capacity.
Maintenance free – no adjustable slides, no exposed motor cord.
Ideal for bridge maintenance work & repairs, platform drilling, steel construction.

The LP45 is designed to fit into the most height restrictive areas at only 180mm high. Small in stature but not in power, this drill will handle up to 45mm diameter holes through 50mm plates.

SPECIFICATIONS

Model LP45

Spindle 19mm

Weight 11kg

Max Stroke 63mm

Cutter Capacity 45mm Ø x 2” depth of cut

Twist Drill Capacity 12mm Ø with optional Turbo™ Twist drills (see page 41)

Countersink Capacity 30mm

Motor 1010 W

RPM 1 Fixed Speed no load 500 RPM loaded 290 RPM

Height 180mm

Length x Width 310 x 120mm
