MagBeast HM140T Drill 240V

Stock Code: PTJEIHM140T240
MPN: DRILL-HM140T/2

Descriptions

A durable, heavy duty 4 Morse Taper Powerhouse designed for many holemaking applications.

Heavy duty 2300 watt, variable speed motor - enables larger cutting capacity.
Weighs only 35kg - a one man job to position and operate machine

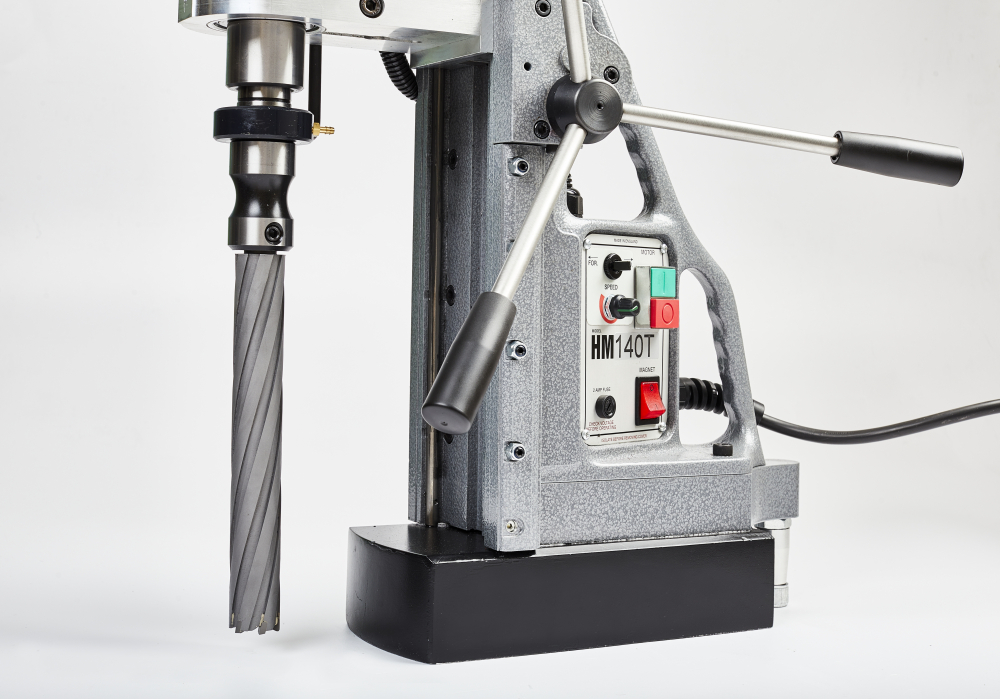

140mm cutter capacity - unrivalled weight to cutting capacity ratio.
300mm total drill travel - facility for extra long cutting depth and stroke

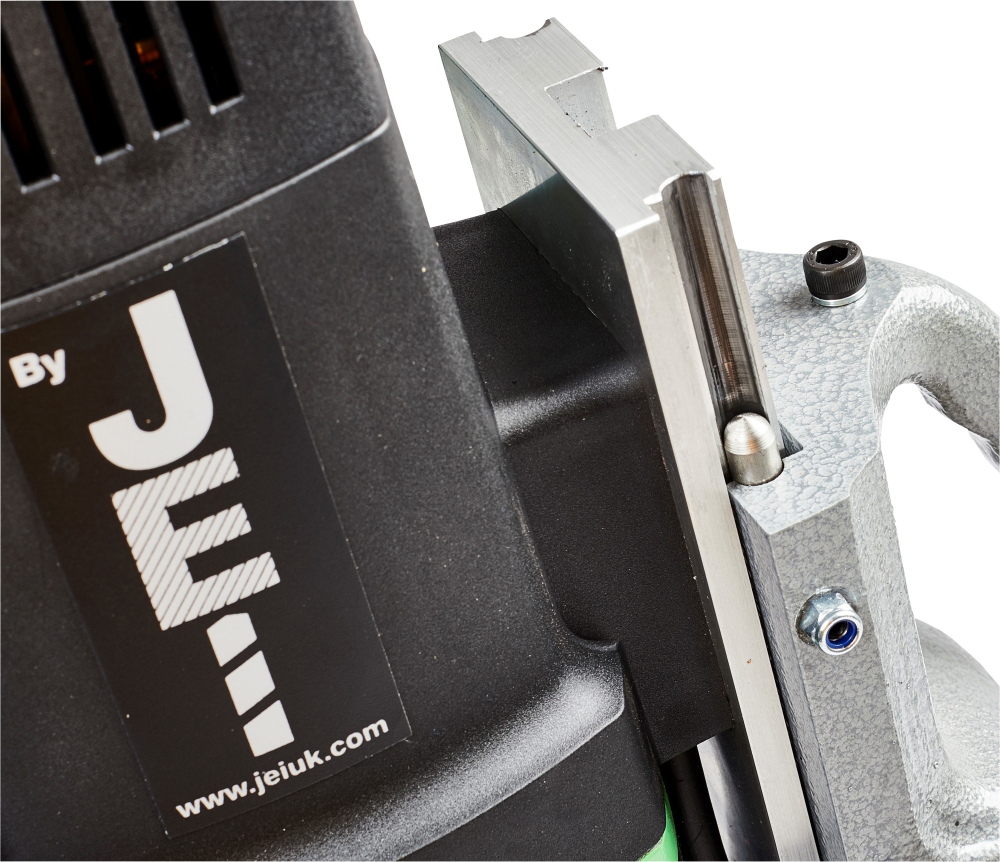

Maintenance friendly twin slide rails - no wearing parts and adjustment free operation.

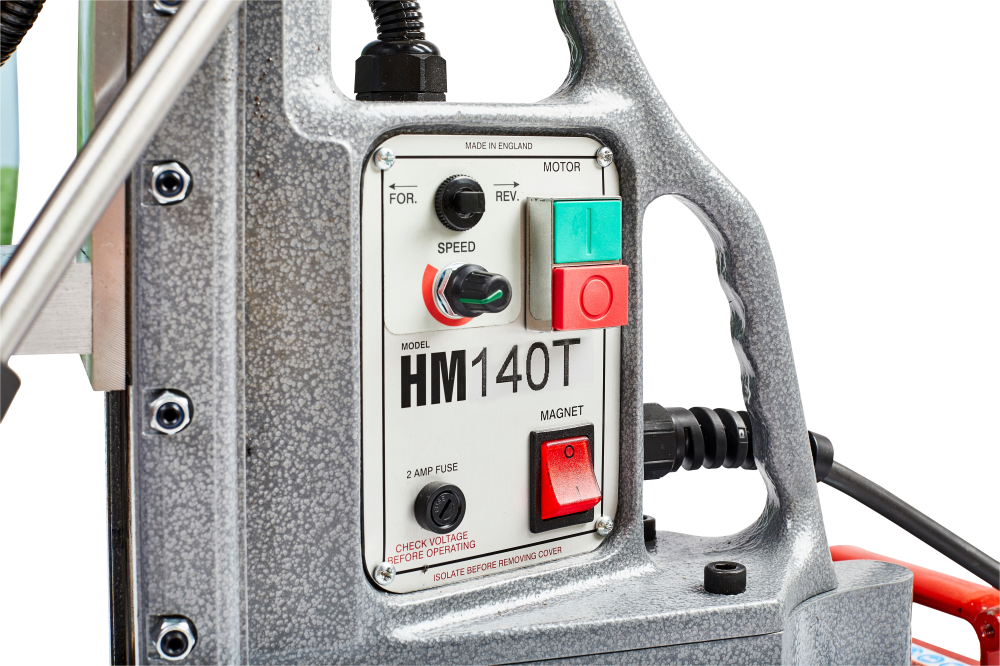

Integral forward/reverse operation - Ability to tap pre-drilled holes upto M44
Built in soft start Motor switch - Provides protection to motor when tapping

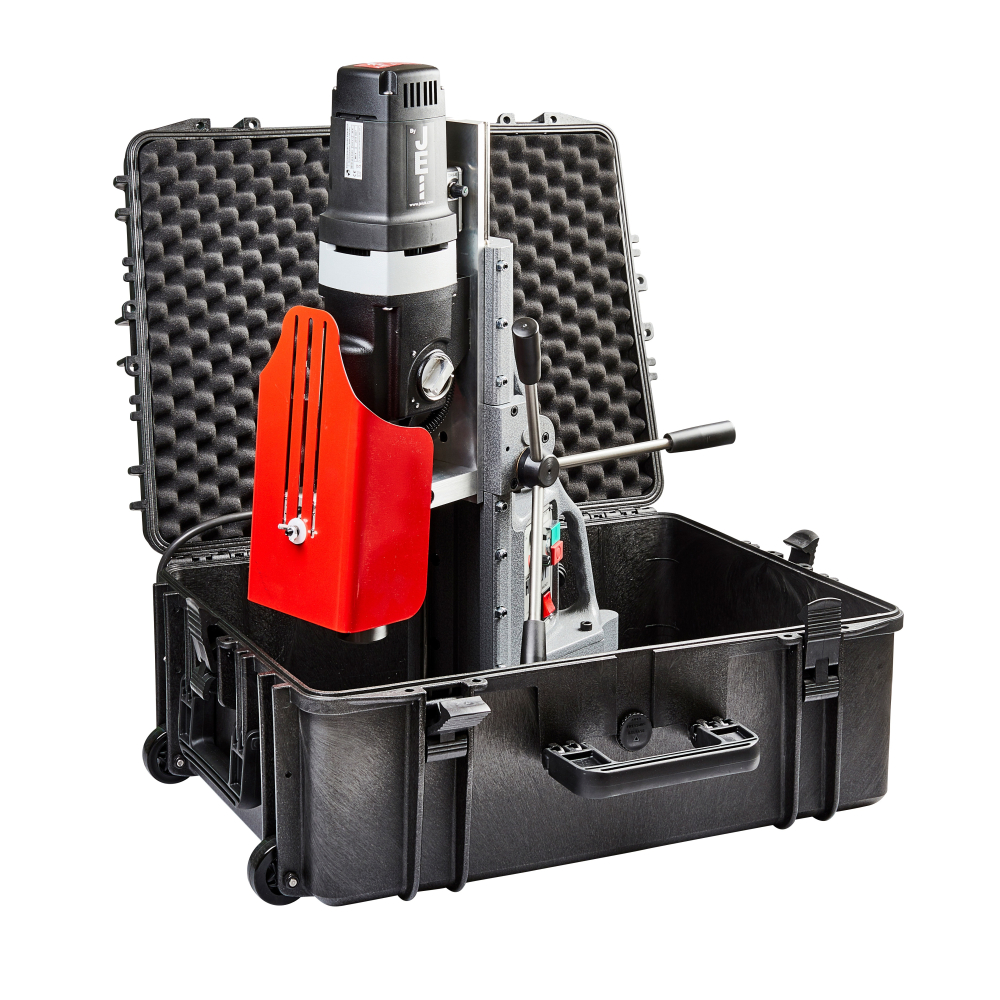

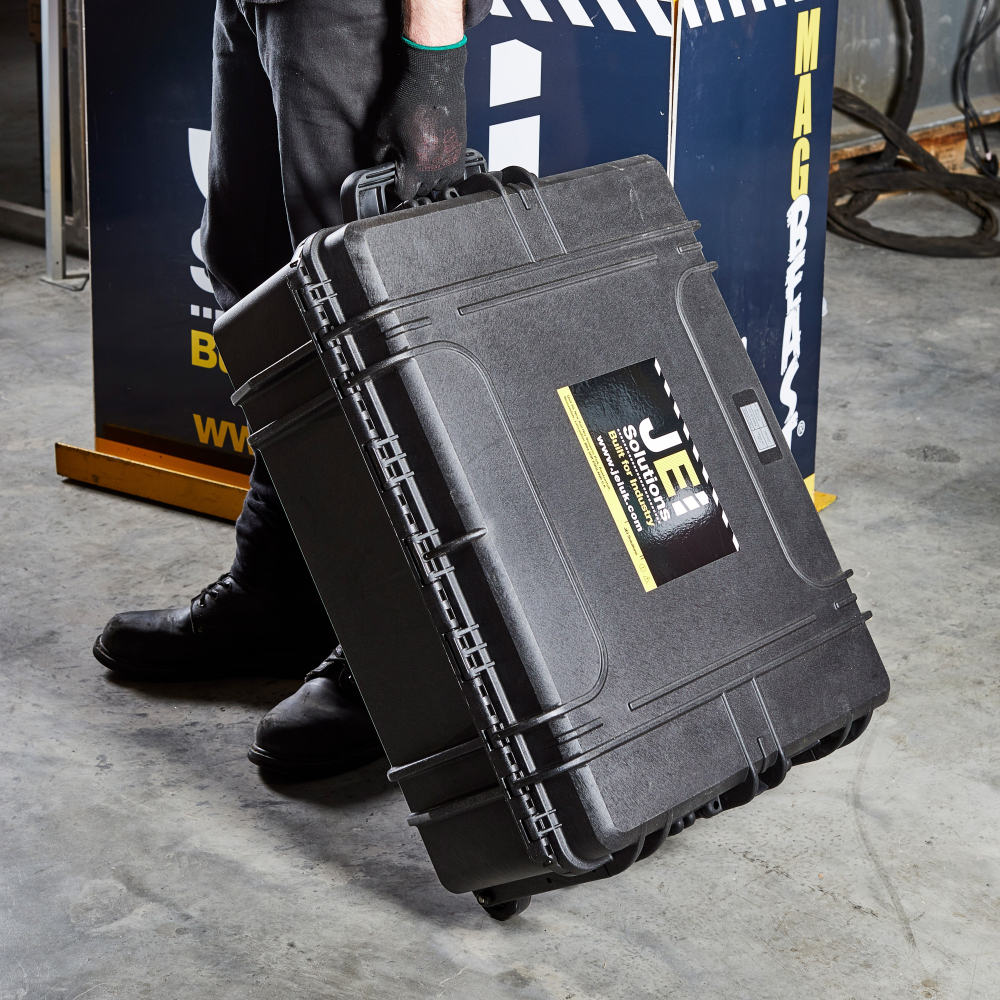

Complete with robust carrying case with wheels - easy movement to site

With built in forward/reverse and variable speed, the HM140T has the ability to tap/thread pre-drilled holes up to M44. Weighing only 35kgs, this machine has an unrivalled weight to capacity ratio for a machine of its size and can be lifted into position by one operator.

SPECIFICATIONS

Model HM140T

Weight 35kg

Cutter Capacity 140mm Ø

Twist Drill Capacity 19mm with 4MT Chuck ~ 50mm with 4 MT Twist Drill

Countersink Capacity 80mm

Reaming Capacity 47mm

Motor 2300 watts

Height Min/Max 570 / 850mm

Length x Width 440 x 245mm

RPM 4 Variable Speeds 30-80/50-120/130-350/ 210-550 RPM

Magnetic Base (L x W) 120 x 260mm
