JEI HM100T Magbeast Drill 110V with Swivel Base

Stock Code: PTJEIHM100T110SB
MPN: DRILL-HM100TS/1

Descriptions

The complete 3MT magnetic drilling and tapping model also capable of cutting, reaming, counterboring and threading holes.

Heavy duty 1800w motor
2 speed variable gearbox with reverse
250mm total drill travel
Sleek, ergonomic design

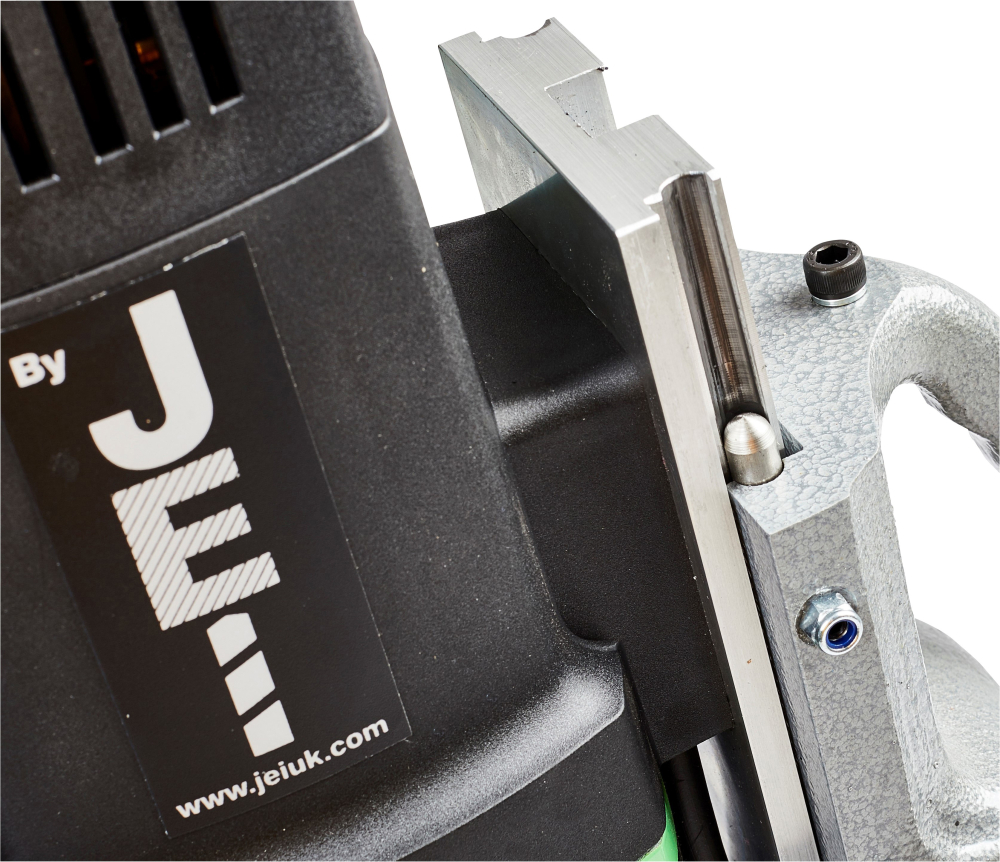

Maintenance free twin slide rails
Fixed safety guard

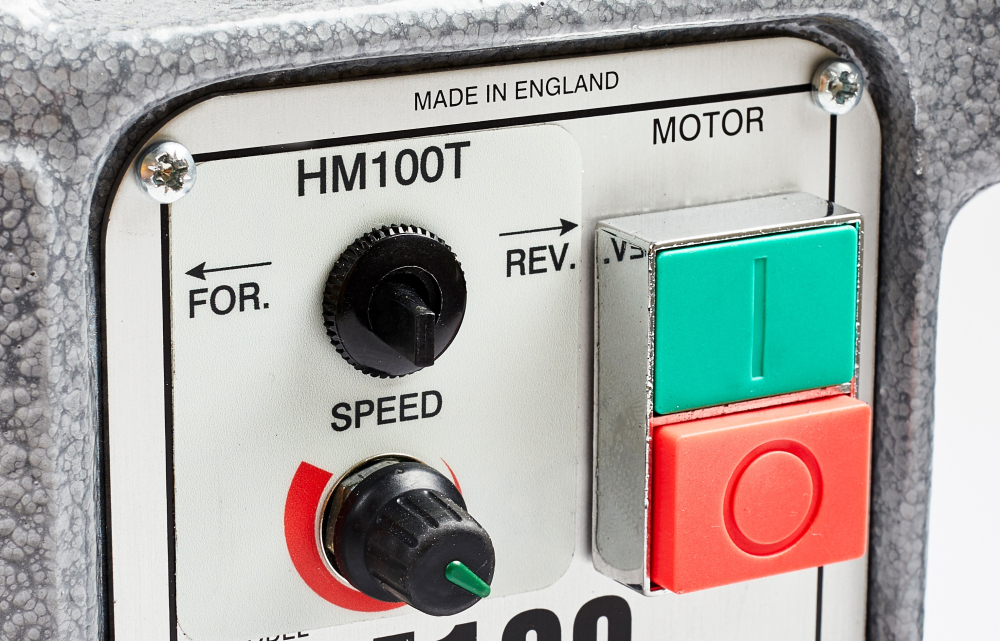

Simple and effective control panel
Powerful electromagnetic base

Capable of cutting, reaming, counterboring and tapping holes, the MagBeast® HM100T is the perfect all-around choice for a variety of applications using simple and efficient electronic controls.

SPECIFICATIONS

Model HM100TS Swivel based model

Spindle MT3

Weight 27kg

Max Stroke 290mm

Cutter Capacity 100mm Ø x 6” depth of cut

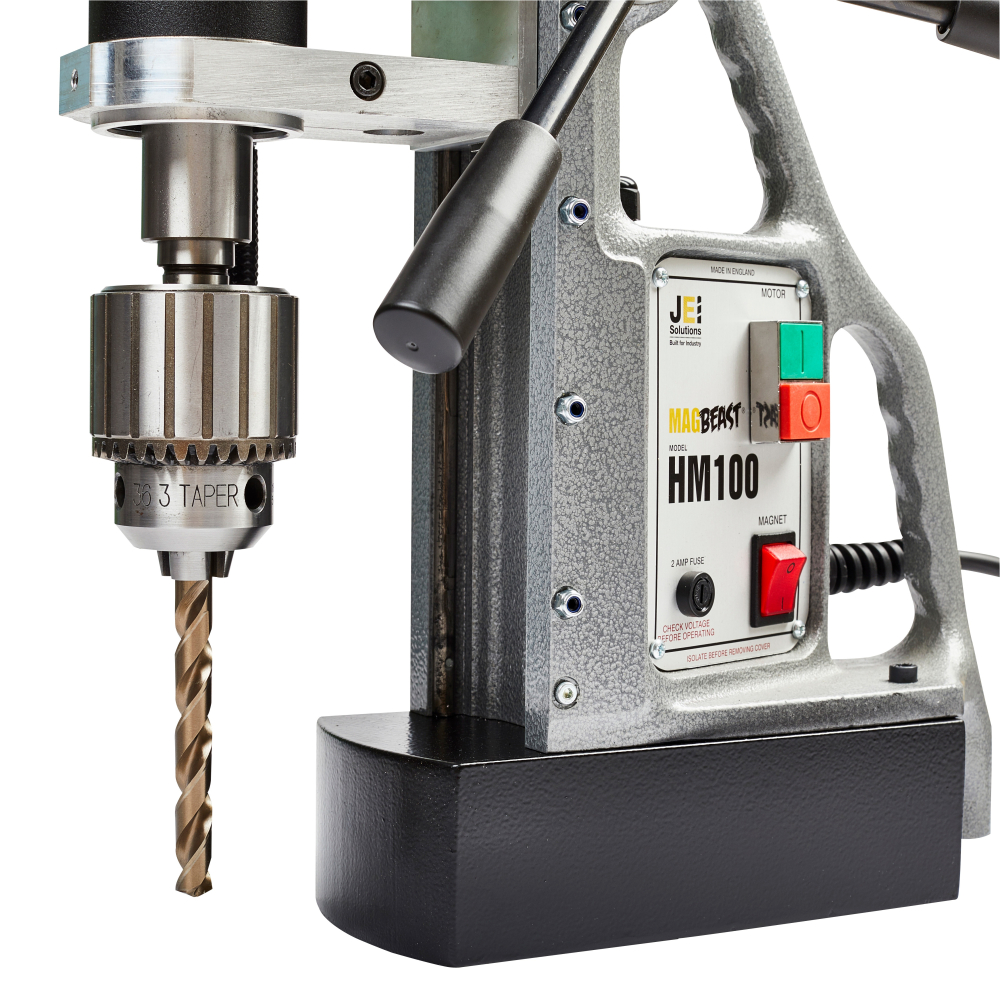

Twist Drill Capacity 19mm with 3MT Chuck ~ 32mm with 3MT Twist Drill

Countersink Capacity 55mm

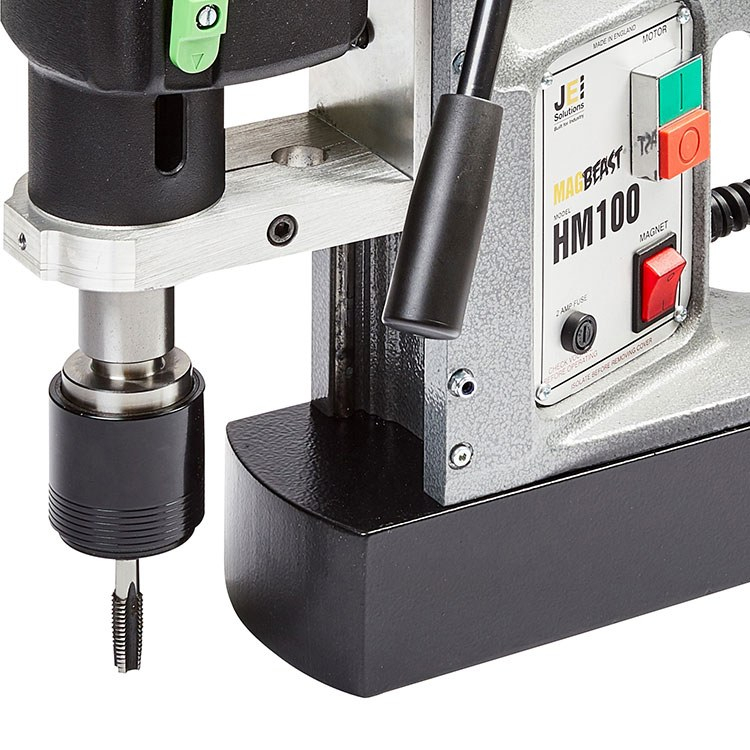

Tapping Capacity M30

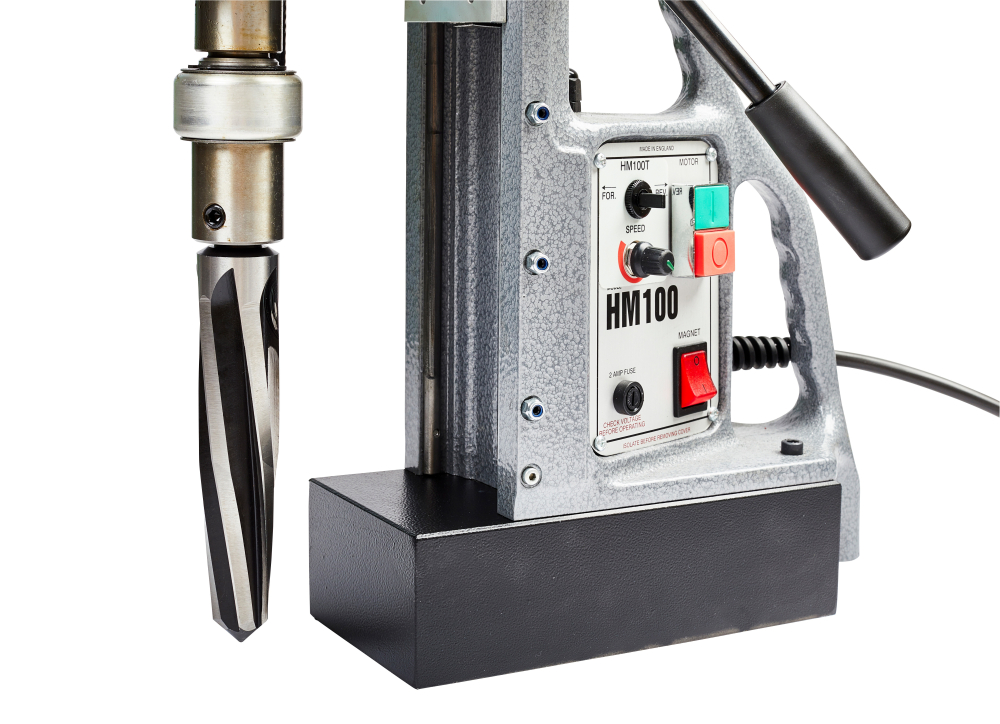

Reaming Capacity 39mm

Motor 1800 W

RPM 2 Variable Speeds (torque control) 60–140 / 200–470

Swivel Base 360 degree

Height min/max 495 / 740mm

Length x Width 345 x 190mm

Magnetic Base L x W 212 x 102mm

Magnet Deadlift 2050kg on 1” Plate (20100 N)

Noise Level < 90dB

Vibration Level < 2.5 m/s2

Voltage/ Part no 110 V – DRILL-HM100TS/1 ~ 240 V – DRILL-HM100TS/2

Shipping Weight 32kgs

Shipping Dimensions571 x 450 x 250mm

Specifications

MPN	DRILL-HM100Ts/1
BRAND	JEI
WEIGHT	27kgs
Condition	New

Downloads

Click on any of the following links to download the file.

HM100TS Product Catalogue (pdf)
