Stock Code: PTJEIHM100T110
MPN: DRILL-HM100T/1
£1,366.33 (exc VAT) per 1
£1,639.59 (inc VAT)
Quantity: - +

The complete 3MT magnetic drilling and tapping model also capable of cutting, reaming, counterboring and threading holes.

  • Heavy duty 1800w motor
  • 2 speed variable gearbox with reverse
  • 250mm total drill travel
  • Sleek, ergonomic design

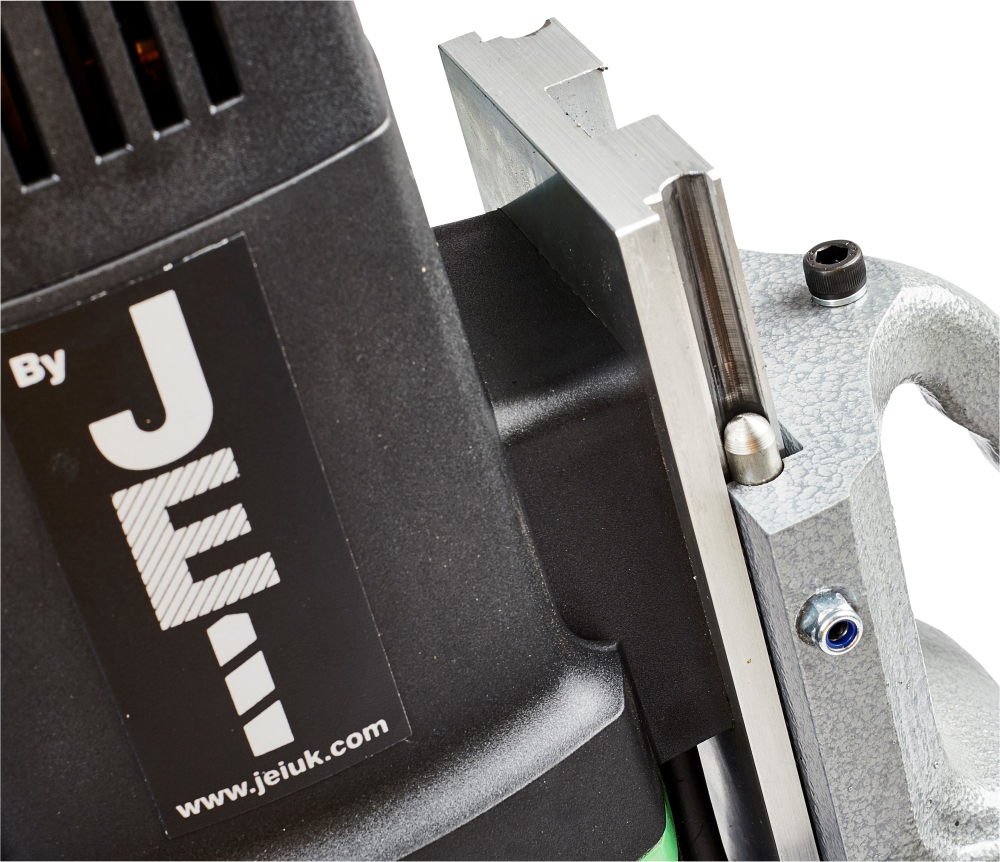

  • Maintenance free twin slide rails
  • Fixed safety guard

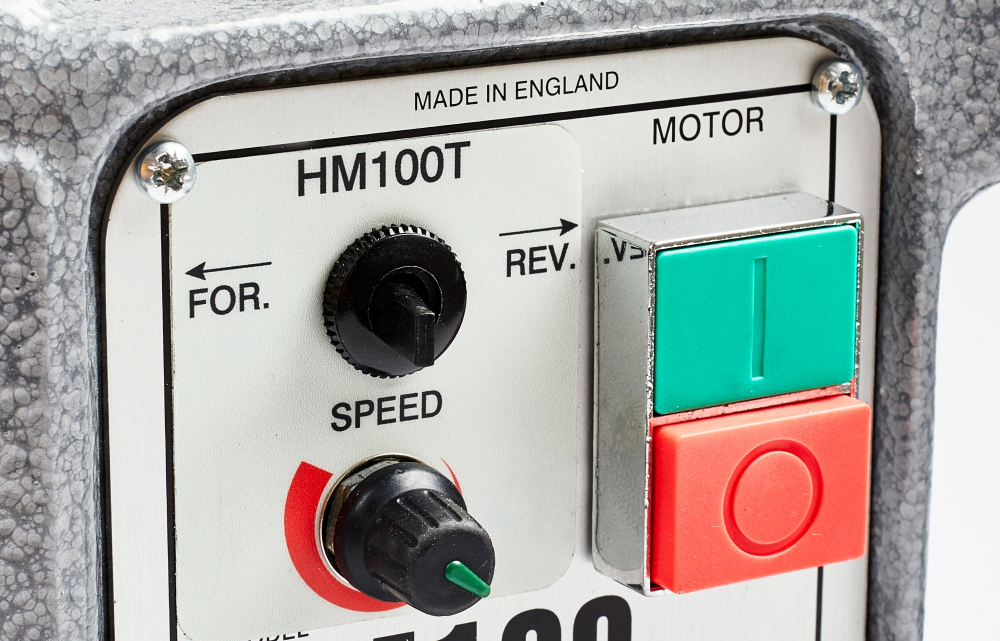

  • Simple and effective control panel
  • Powerful electromagnetic base
  • Optional 360º swivel base

Capable of cutting, reaming, counterboring and tapping holes, the MagBeast® HM100T is the perfect all-around choice for a variety of applications using simple and efficient electronic controls.

SPECIFICATIONS

Model HM100T

Spindle MT3

Weight 23.5kg

Max Stroke 250mm

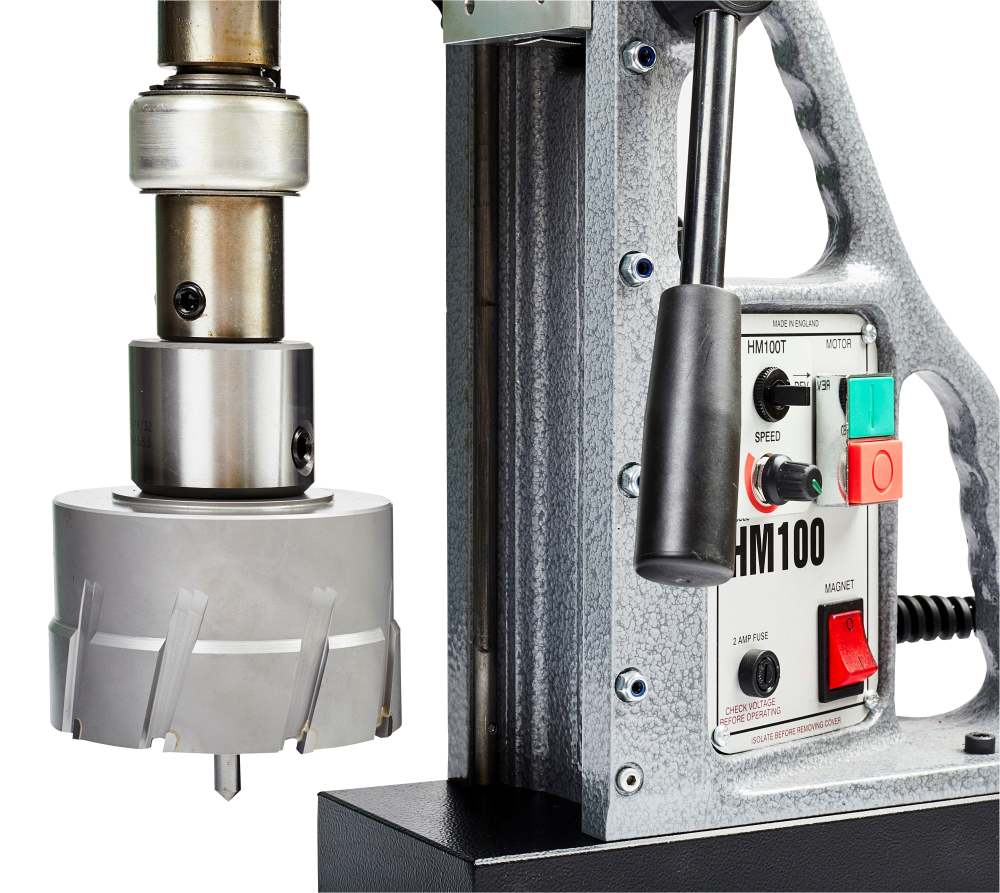

Cutter Capacity 100mm Ø x 6” depth of cut

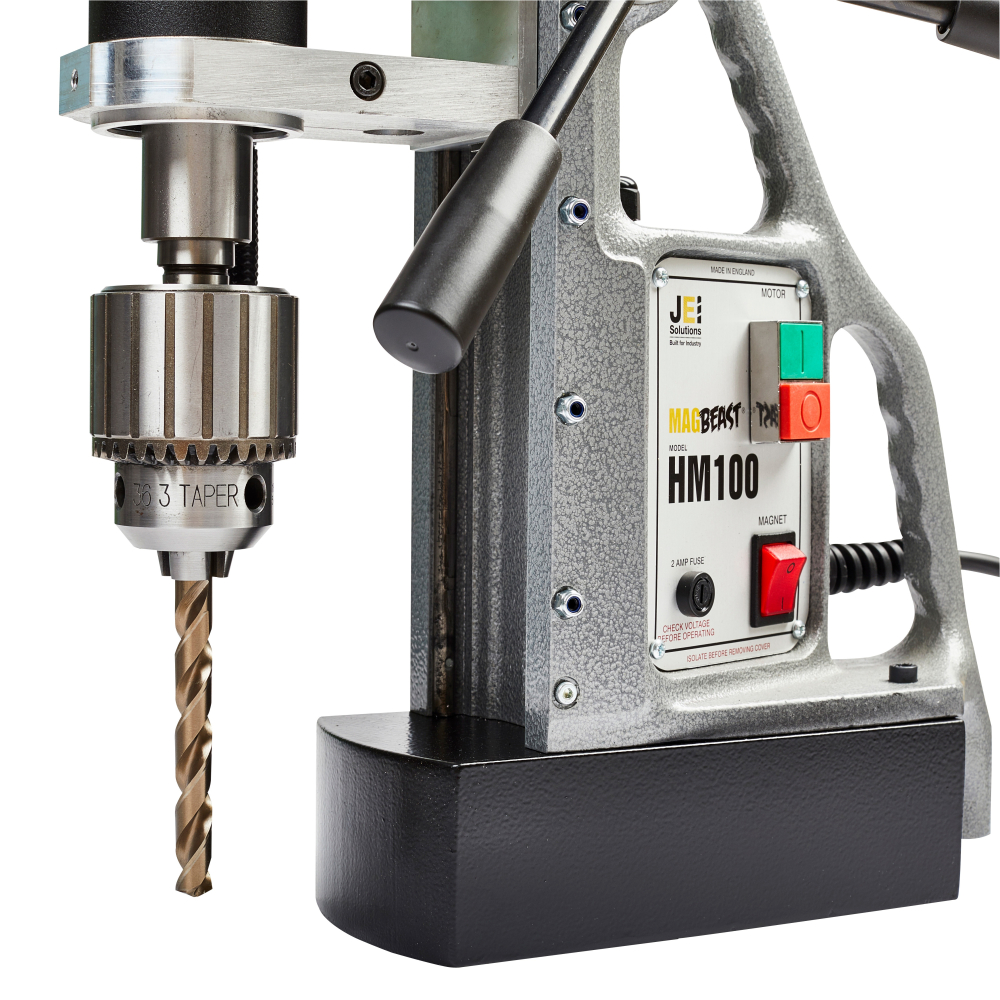

Twist Drill Capacity 19mm with 3MT Chuck ~ 32mm with 3MT Twist Drill

Countersink Capacity 55mm

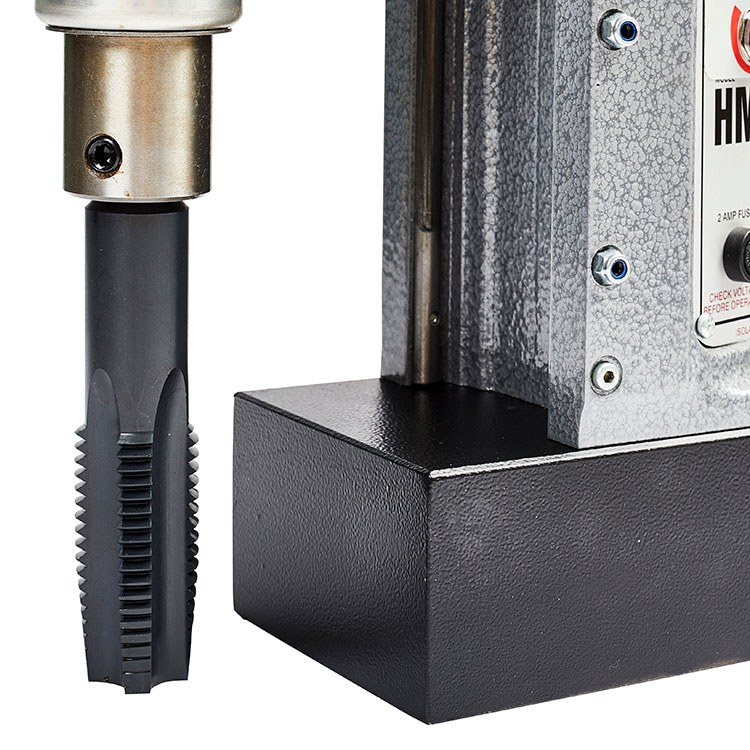

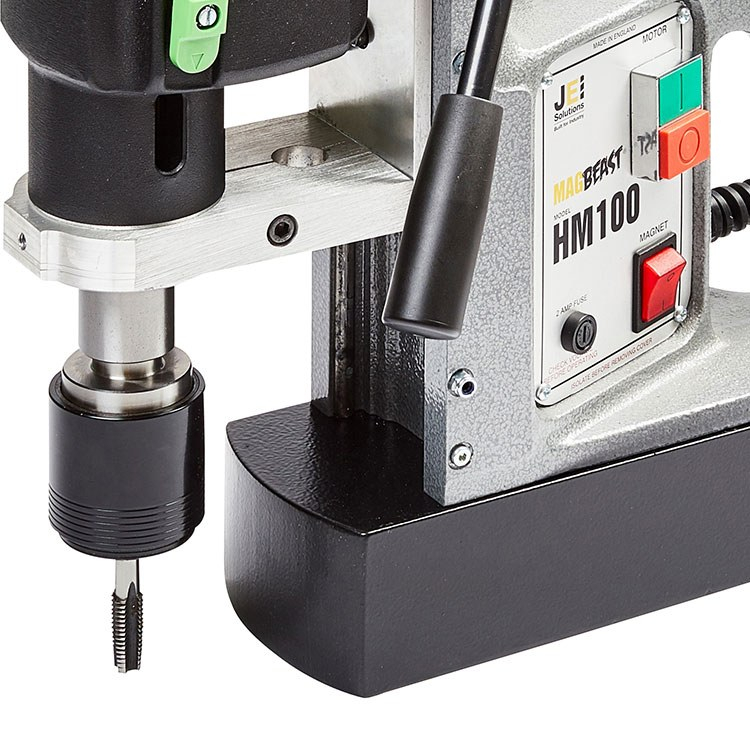

Tapping Capacity M30

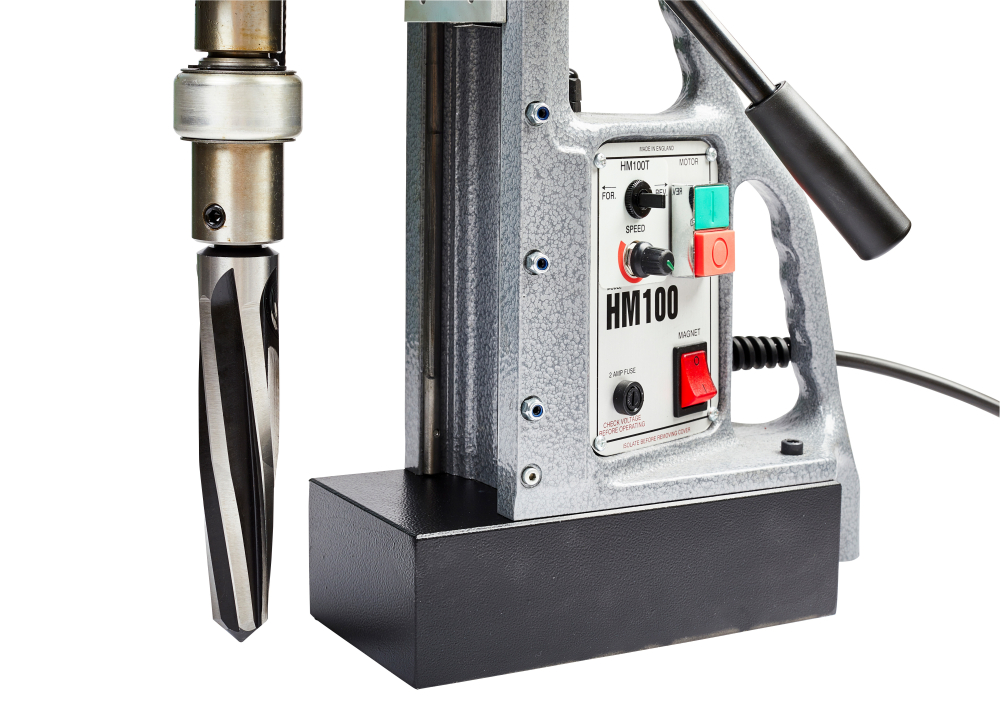

Reaming Capacity 39mm

Motor 1800W

RPM 2 Variable Speeds (torque control) 60–140 / 200–470

Swivel Base n/a

Height min/max 450 / 700mm

Length x Width 345 x 190mm

Magnetic Base L x W 212 x 102mm

Magnet Deadlift 2050kg on 1” Plate (20100 N)

Noise Level < 90dB

Vibration Level < 2.5 m/s2

Voltage/ Part no 110 V – DRILL-HM100T ~ 240 V – DRILL-HM100T/2

Shipping Weight 28.65kg

Shipping Dimensions571 x 450 x 250mm

MPNDRILL-HM100T/1
BRANDJEI
WEIGHT23.5kgs
ConditionNew
