JEI Magbeast HM100 Drilling Machine 110V

Stock Code: PTJMHM100110
MPN: DRILL-HM100/1

Descriptions

A durable, heavy duty, 3 morse taper drilling machine.

Heavy duty 1700 W motor. Enables large cutting capacity.
Weighs only 24kg and 100mm cutter capacity. Unrivalled weight to cutting capacity ratio.
4 speed gearbox. Ideal for a wide selection of cutting operations.
250mm total drill travel. Facility to use 150mm (6”) long cutters.

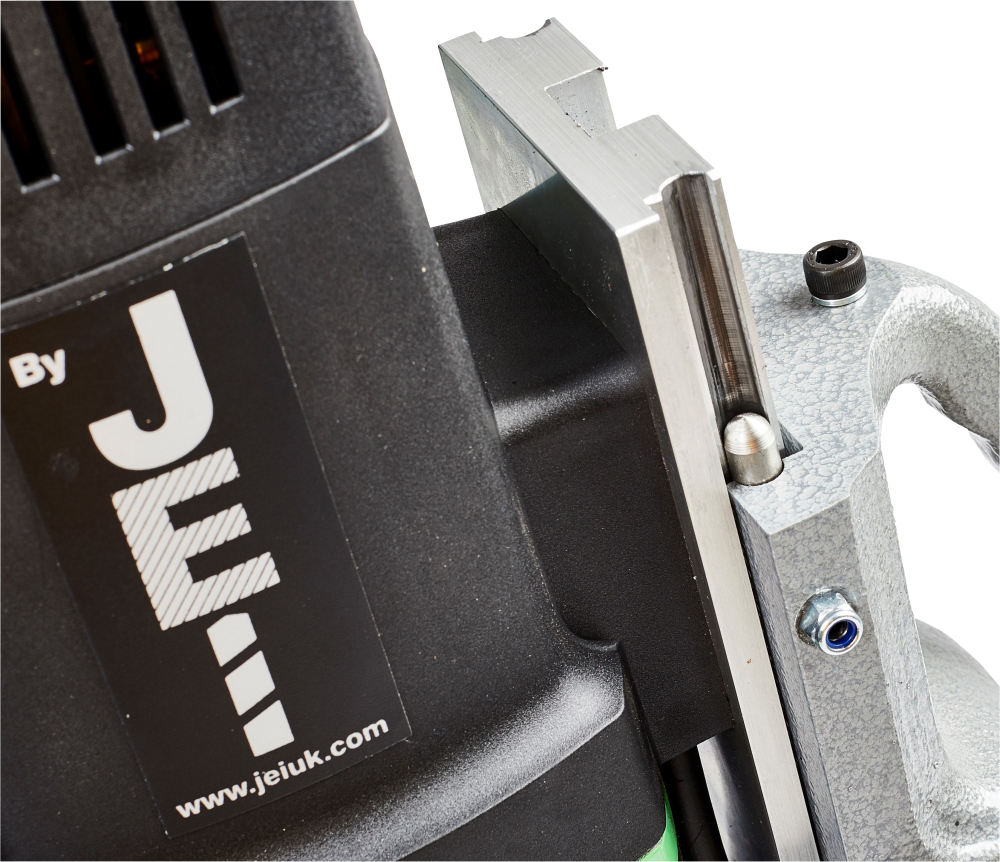

Maintenance friendly twin slide rails. No wearing parts and adjustment free operation.
Optional 360º swivel base

The substantial 1700 W motor on the MagBeast® HM100 enables a large cutting capacity and 4-speed gearbox for those demanding projects. Adjustment-free operation and no wearing parts.

SPECIFICATIONS

Model HM100

SpindleMT3

Arbor Bore 19mm

Weight 24kg

Max Stroke 250mm

Cutter Capacity 100mm Ø x 6” depth of cut

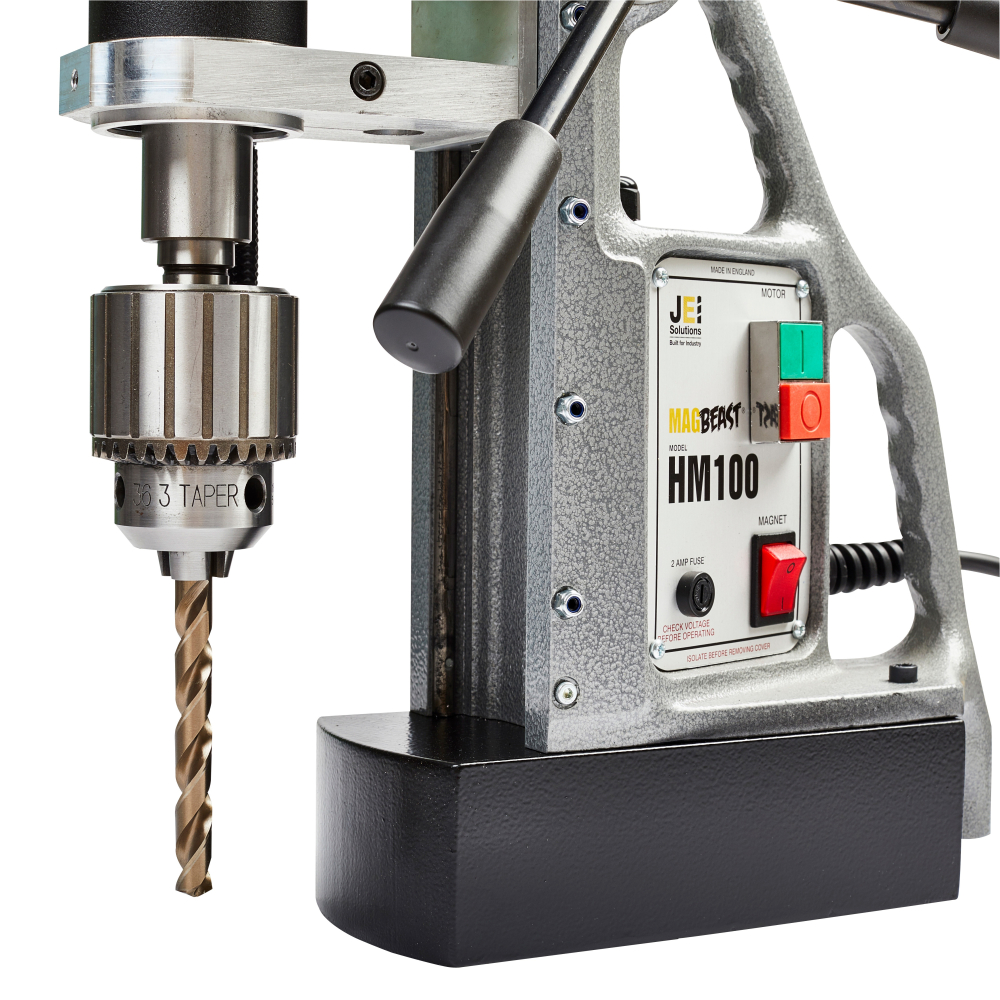

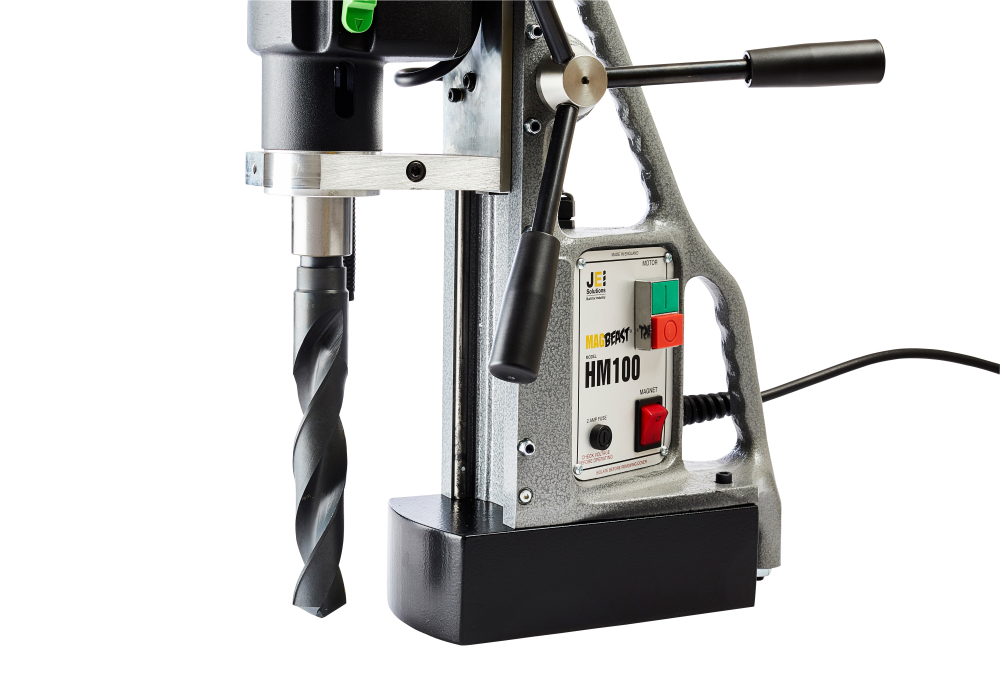

Twist Drill Capacity 19mm with 2MT Chuck / 32mm with 3MT Twist Drill

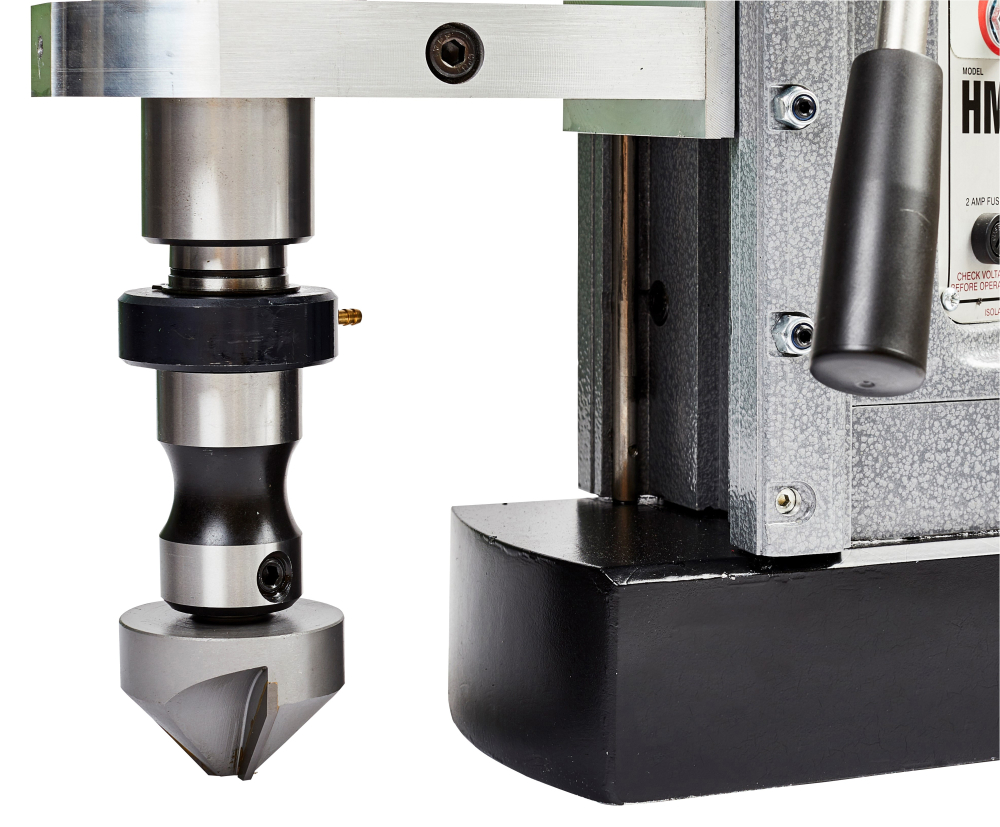

Countersink Capacity 55mm

Reaming Capacity 39mm

Motor 1700 W

RPM 4 Fixed Speeds: no load 215/330/460/680 RPM loaded 110/175/245/385 RPM
