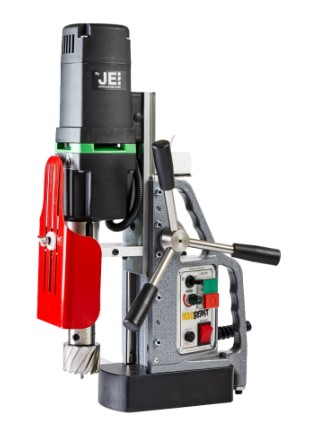

JEI Magbeast HM50T Drilling Machine 110V

Stock Code: PTJMHM50T110
MPN: DRILL-HM50T/1
EAN / GTIN: 5060989227800

Descriptions

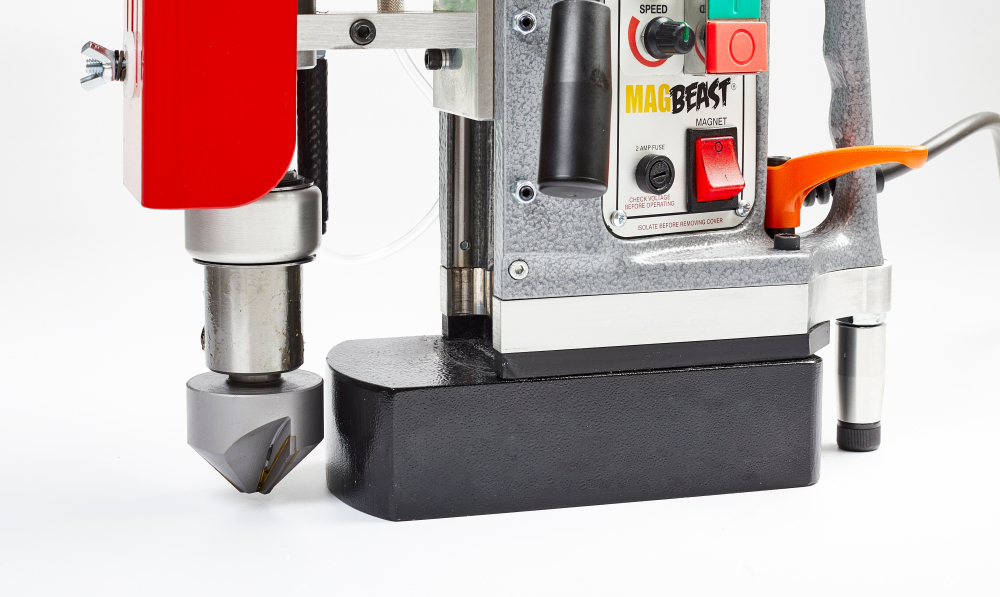

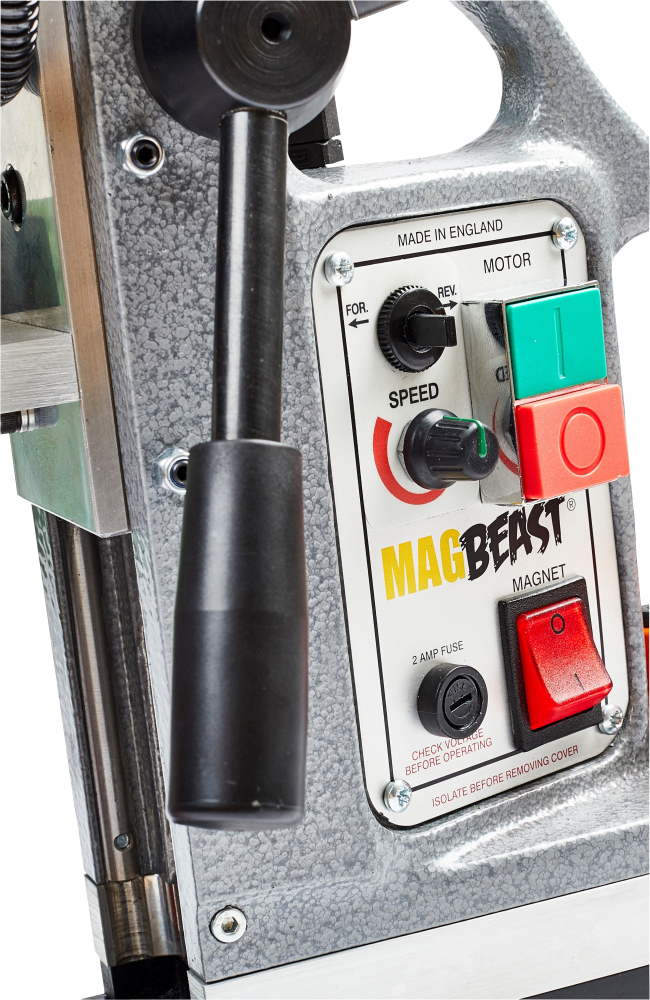

A heavy duty 2 morse taper drilling machine, Featuring variable speed and reverse function.

Variable speed, high torque motor. Ideal for countersinking and reaming.

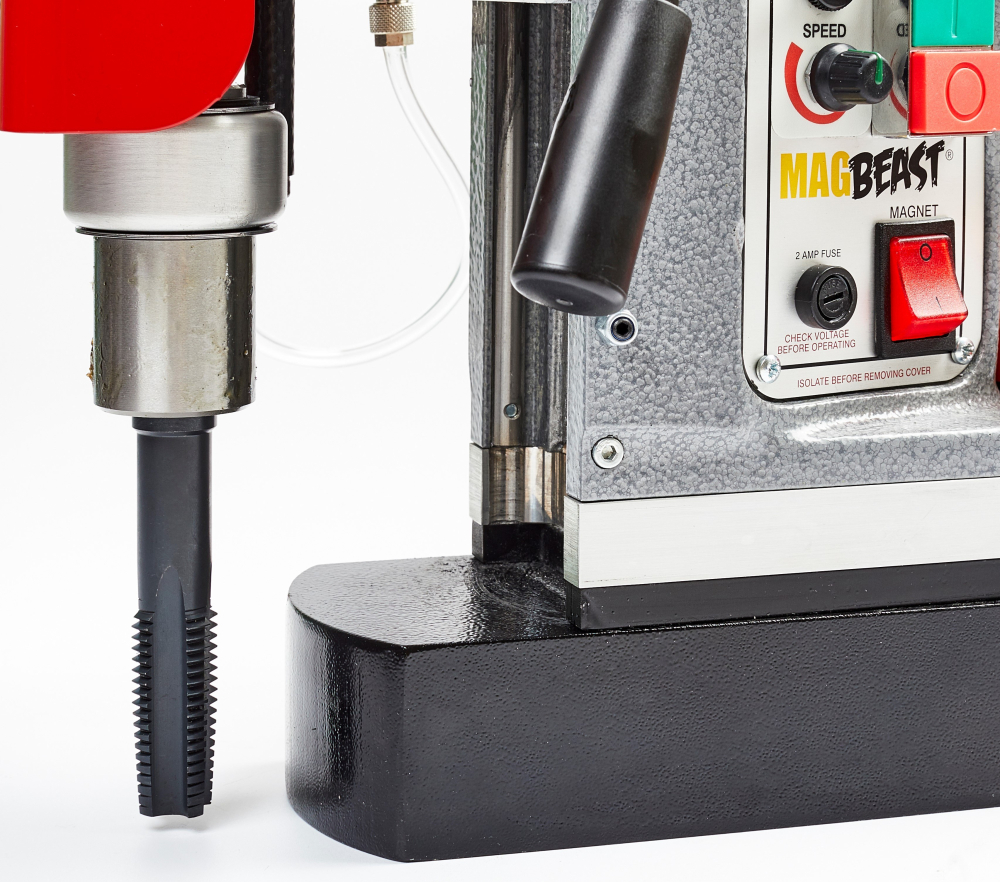

Reverse speed motor ideal for threading (tapping) holes.
Lightweight. Only 14kg yet can cut up to 50mm diameter.

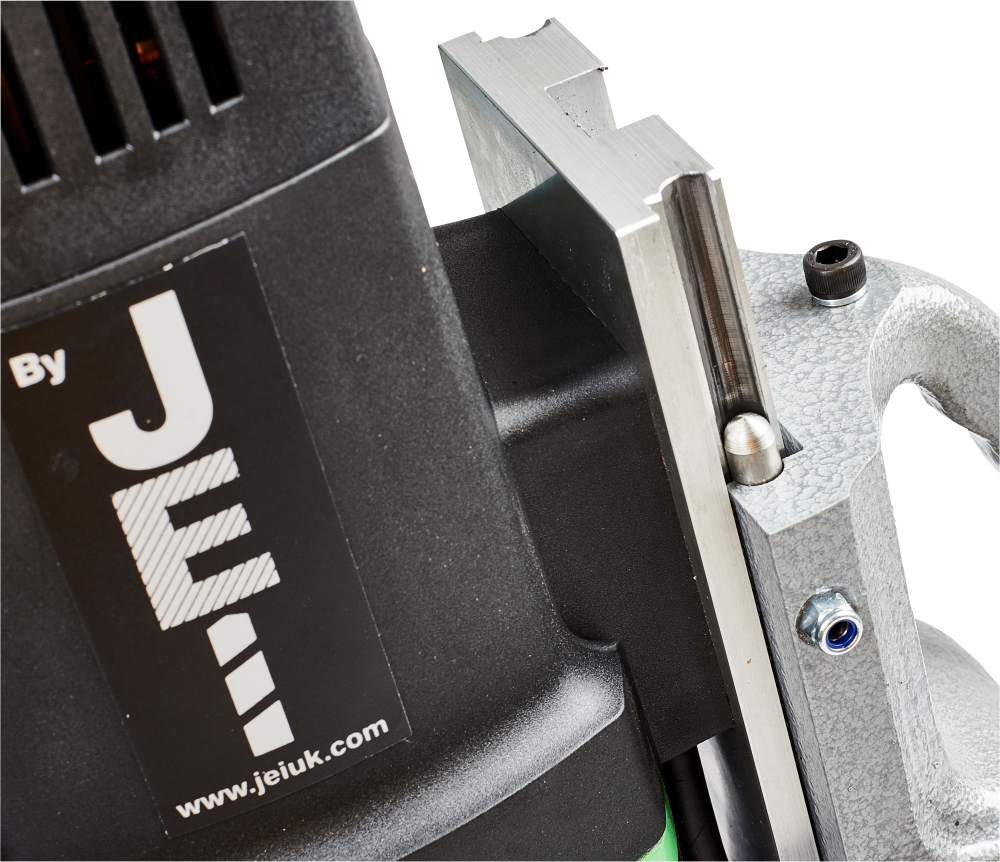

Maintenance friendly twin slide rails.
No wearing parts and adjustment free operation.
Spoke handles can be fitted on left or right side for operator convenience (applies to all HM50 models).
Optional 360º Swivel Base

A heavy-duty 2 morse taper drilling machine, the MagBeast® HM50T is ideal for countersinking and reaming. A lightweight option, weighing at only 14kg, that can cut up to 50mm in diameter.

SPECIFICATIONS

Model HM50T

Spindle MT2

Weight 14kg

Max Stroke 180mm

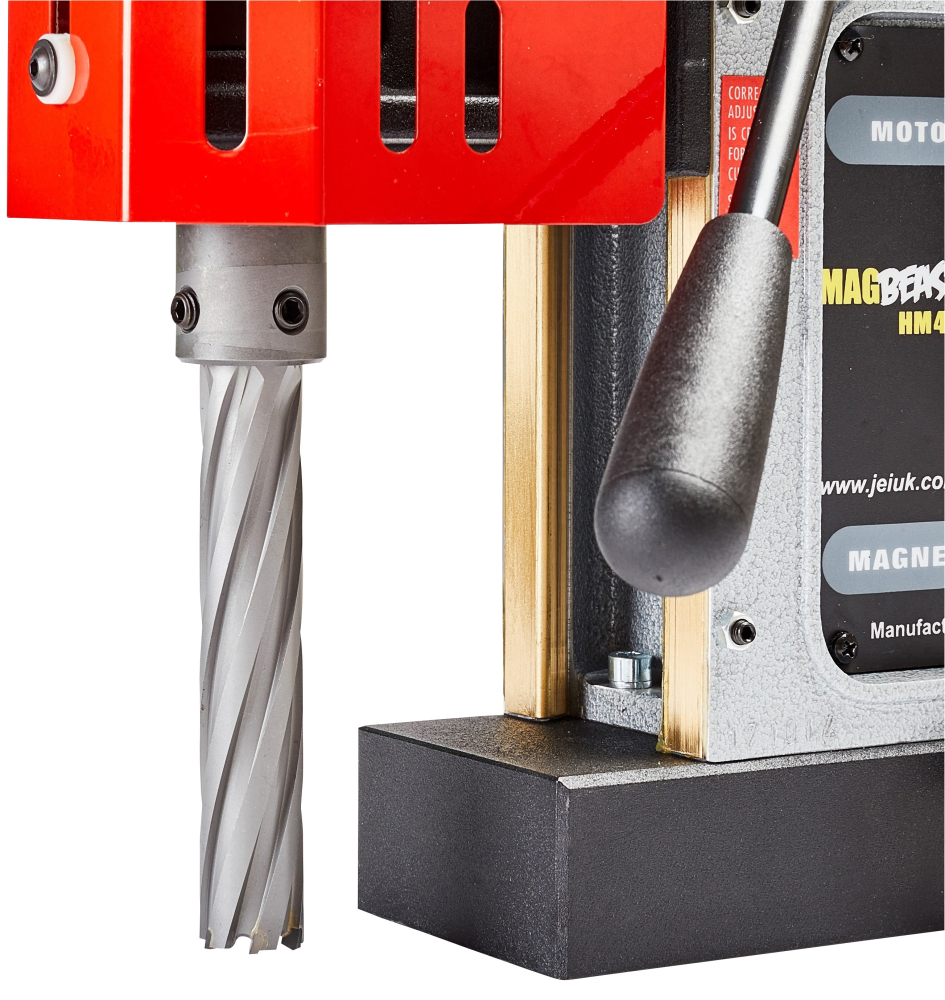

Cutter Capacity 50mm Ø x 4” depth of cut

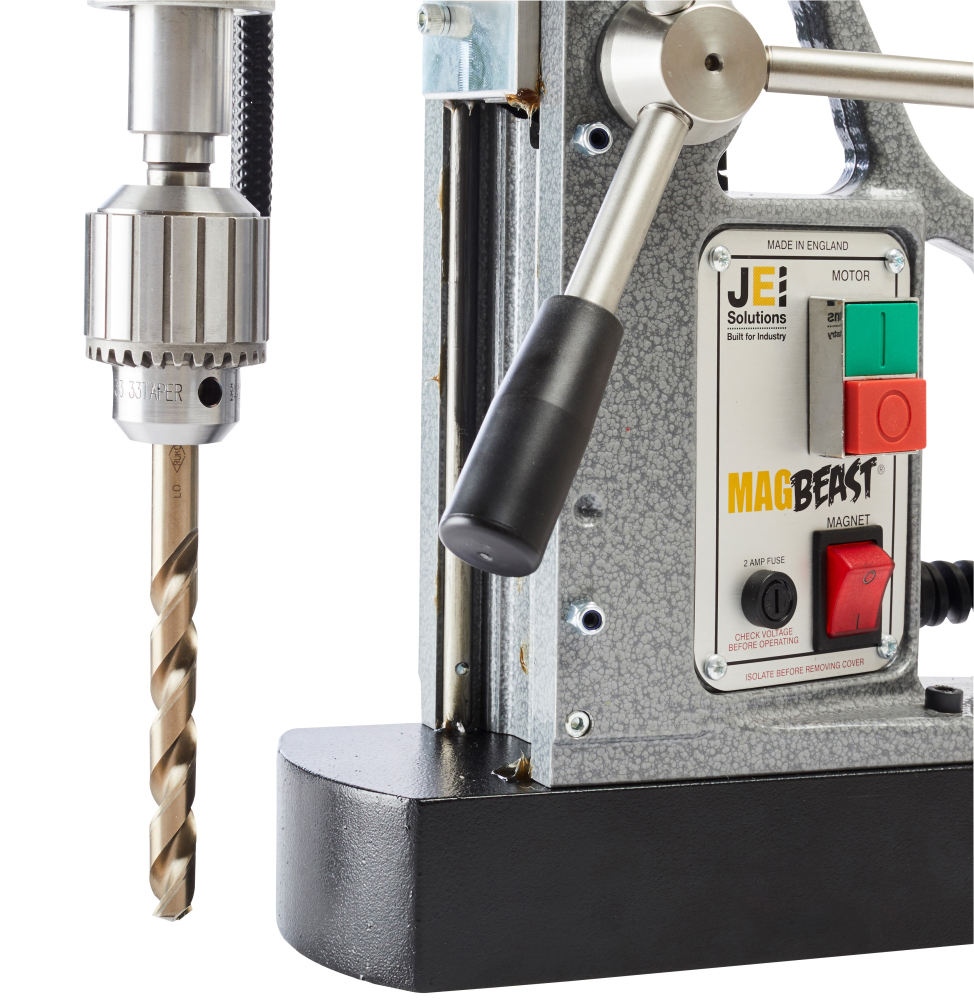

Twist Drill Capacity 13mm with 2MT Chuck ~ 23mm with 2MT Twist Drill

Countersink Capacity 40mm

Tapping Capacity M20

Reaming Capacity 22mm (19 mm shank)

Motor 1150 W (110 V) 1250 W (240 V)

RPM 2 Variable Speeds, 180–430, 100–250 RPM
